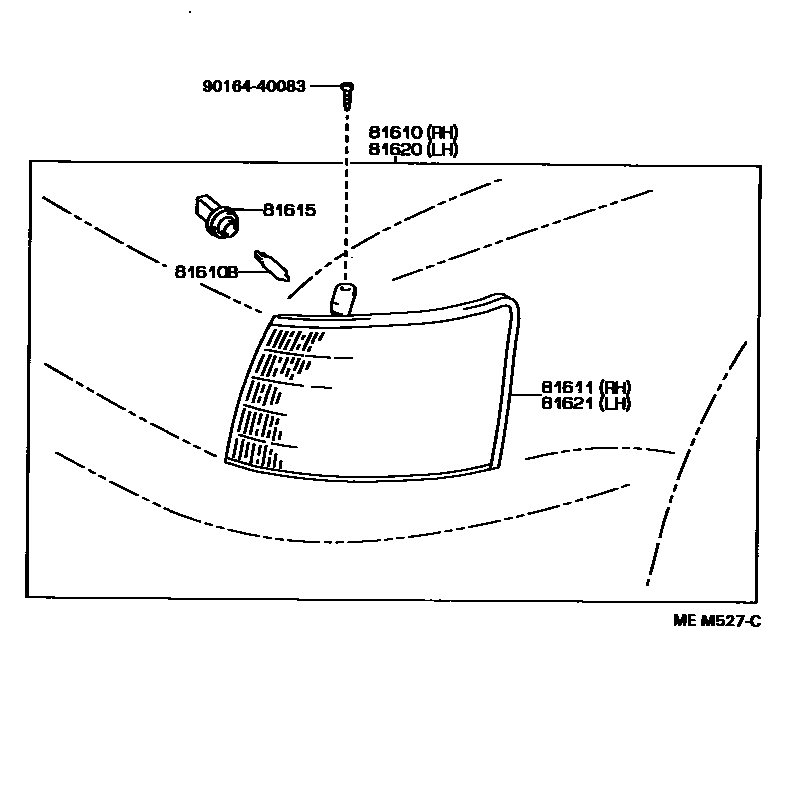

Toyota CELSIOR — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-50010i198911-199209

main81610-50030i199209-199304

main81610-50040i199304-199410

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-12023×2i198911-199304

main99132-12050×2i199304-199410

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-50020i198911-199207

main81611-50021i199207-199209

main81611-50030i199209-199410

81615SOCKET AND WIRE, CLEARANCE LAMP

main81735-12180×2i198911-199410

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-50010i198911-199209

main81620-50030i199209-199304

main81620-50040i199304-199410

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-50020i198911-199207

main81621-50021i199207-199209

main81621-50030i199209-199410

9016440083

main90164-40083

7 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota CELSIOR

This section contains 7 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CELSIOR. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
