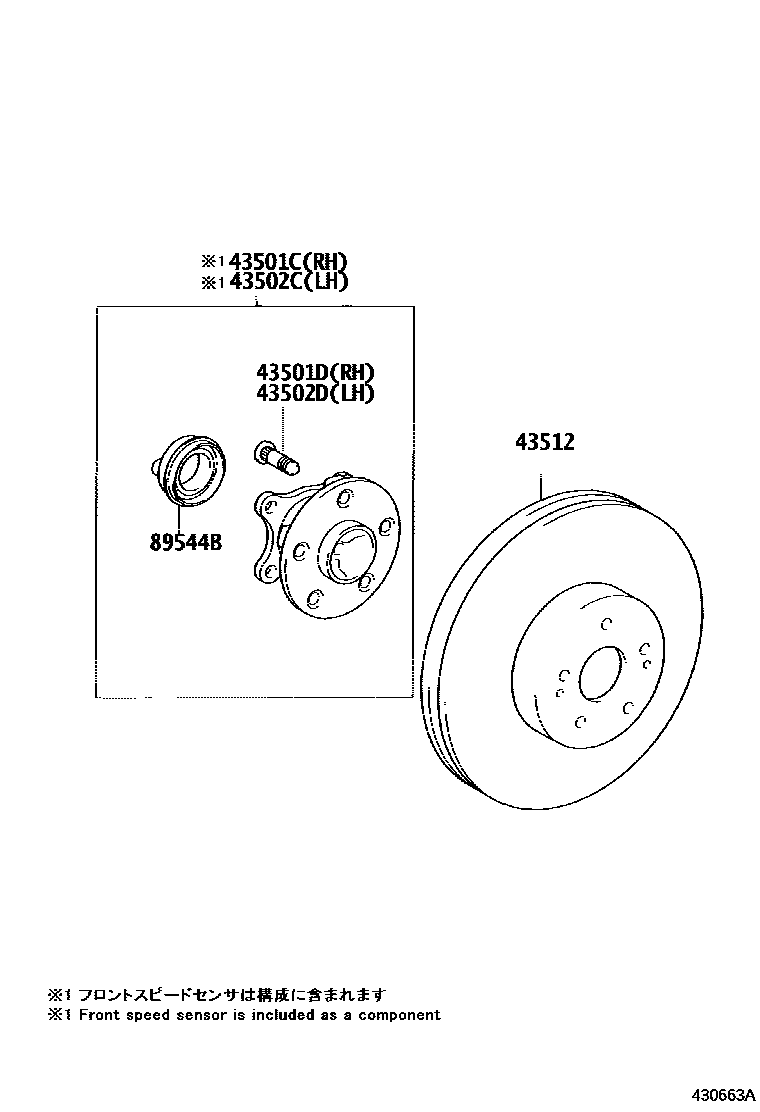

Toyota CELSIOR — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-50010i200008-200307

main43550-50011i200307-200608

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i200008-200307

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-50010i200008-200307

main43550-50011i200307-200608

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i200008-200307

43512DISC, FRONT

main43512-50160×2i200008-200307

main43512-50220×2i200307-200608

89544BSENSOR, SKID CONTROL, FRONT

main89544-50020×2i200008-200307

6 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CELSIOR

This section contains 6 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELSIOR. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), DISC, FRONT.
