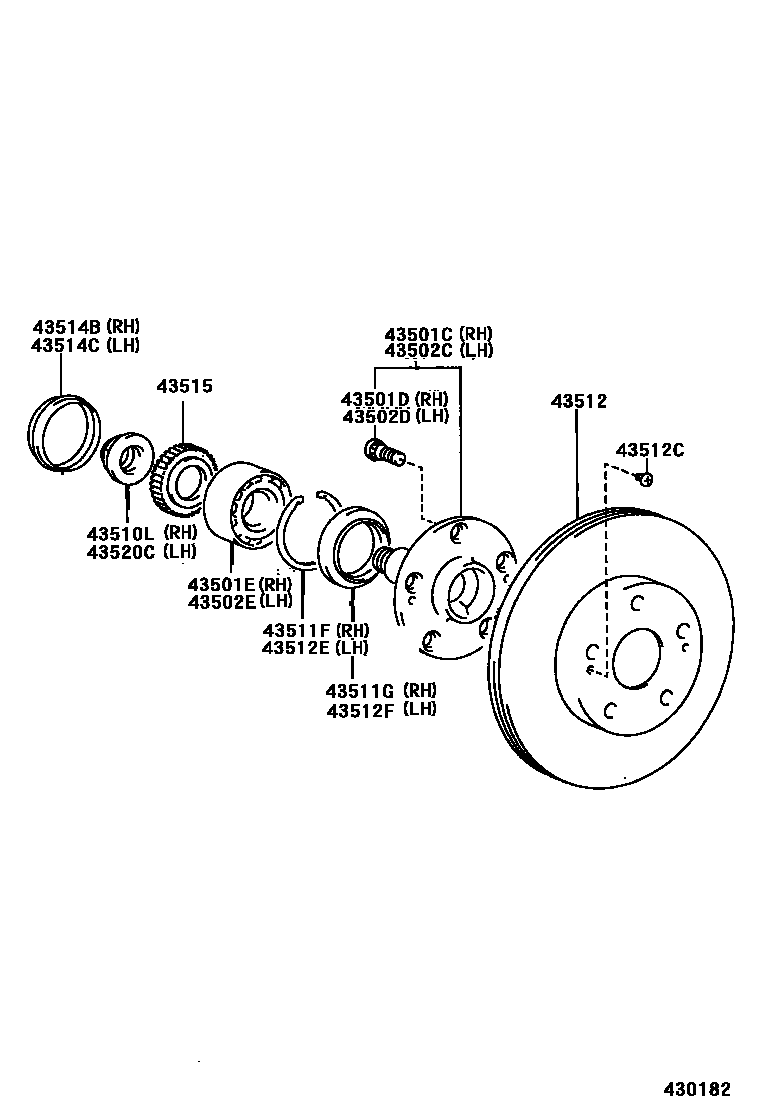

Toyota CELSIOR — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-50021i199410

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i199410

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63006i199410-199707

main90903-63011i199707

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-50021i199410

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i199410

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63006i199410-199707

main90903-63011i199707

43510LNUT (FOR STEERING KNUCKLE RH)

main90179-24005i199410

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i199410

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-50016i199410

43512DISC, FRONT

main43512-50130×2i199410-199511

main43512-50150×2i199511-199607

main43512-50151×2i199607-199704

main43512-50152×2i199704

43512CSCREW (FOR FRONT DISC)

main90155-60002×2i199410-199707

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i199410

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-50016i199410

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010i199410

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010i199410

43515ROTOR, SKID CONTROL, FRONT

main43515-50010×2i199410

43520CNUT (FOR STEERING KNUCKLE LH)

main90179-24005i199410

17 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CELSIOR

This section contains 17 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELSIOR. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH).
