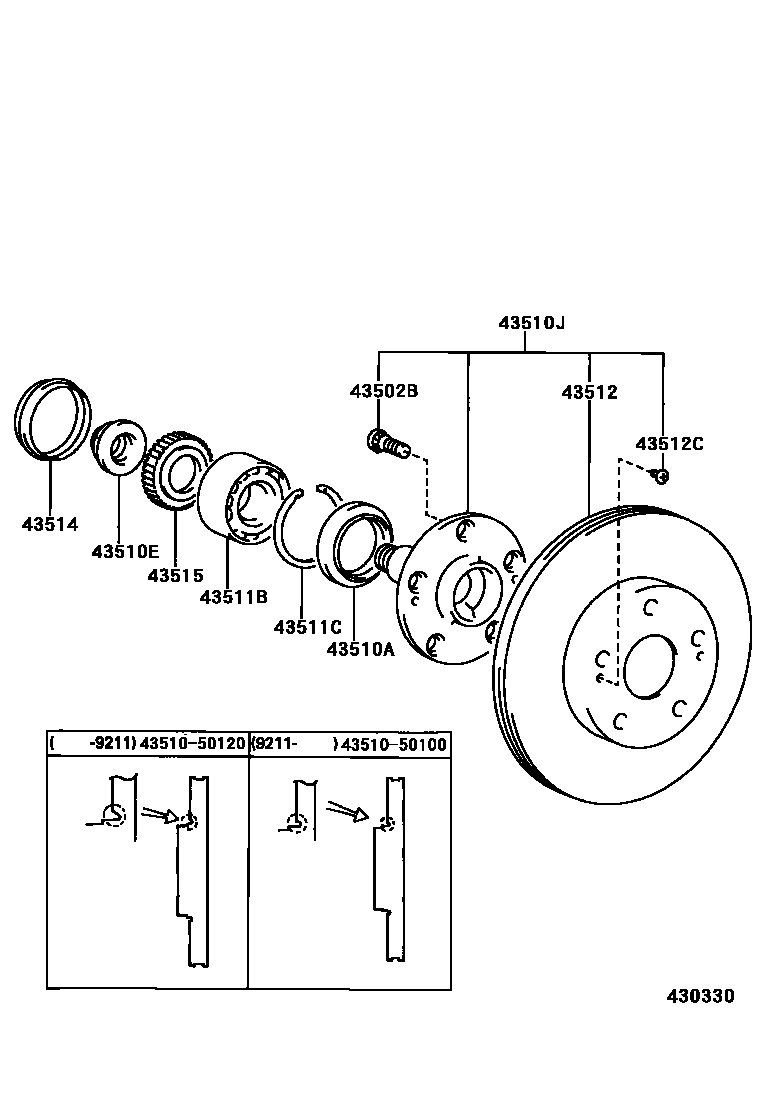

Toyota CELSIOR — FRONT AXLE HUB

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×10i198911-199210

main90942-02070×10i199210-199410

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50008×2i198911-199208

main90311-50016×2i199208-199410

43510ENUT (FOR STEERING KNUCKLE)

main90179-24005×2i199208-199410

43510JHUB & DISC ASSY, FRONT AXLE

main43510-50060×2i198911-199208

main43510-50100×2i199211-199410

main43510-50120×2i199208-199211

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35034×2i198911-199208

main90903-63006×2i199311-199410

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82001×2i198911-199208

43512DISC, FRONT

main43512-30241×2i199208-199211

main43512-50060×2i198911-199208

main43512-50100×2i199211-199410

43512CSCREW (FOR FRONT DISC)

main90155-60002×4i198911-199410

43514CAP, FRONT HUB GREASE

main43514-50010×2i199208-199410

43515ROTOR, SKID CONTROL, FRONT

main43515-50010×2i198911-199410

4351050100HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-50100

4351050120HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-50120

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CELSIOR

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELSIOR. Key components include: BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), NUT (FOR STEERING KNUCKLE), HUB & DISC ASSY, FRONT AXLE, BEARING (FOR FRONT AXLE HUB).
