Toyota CELSIOR — FLOOR PAN & LOWER BACK PANEL

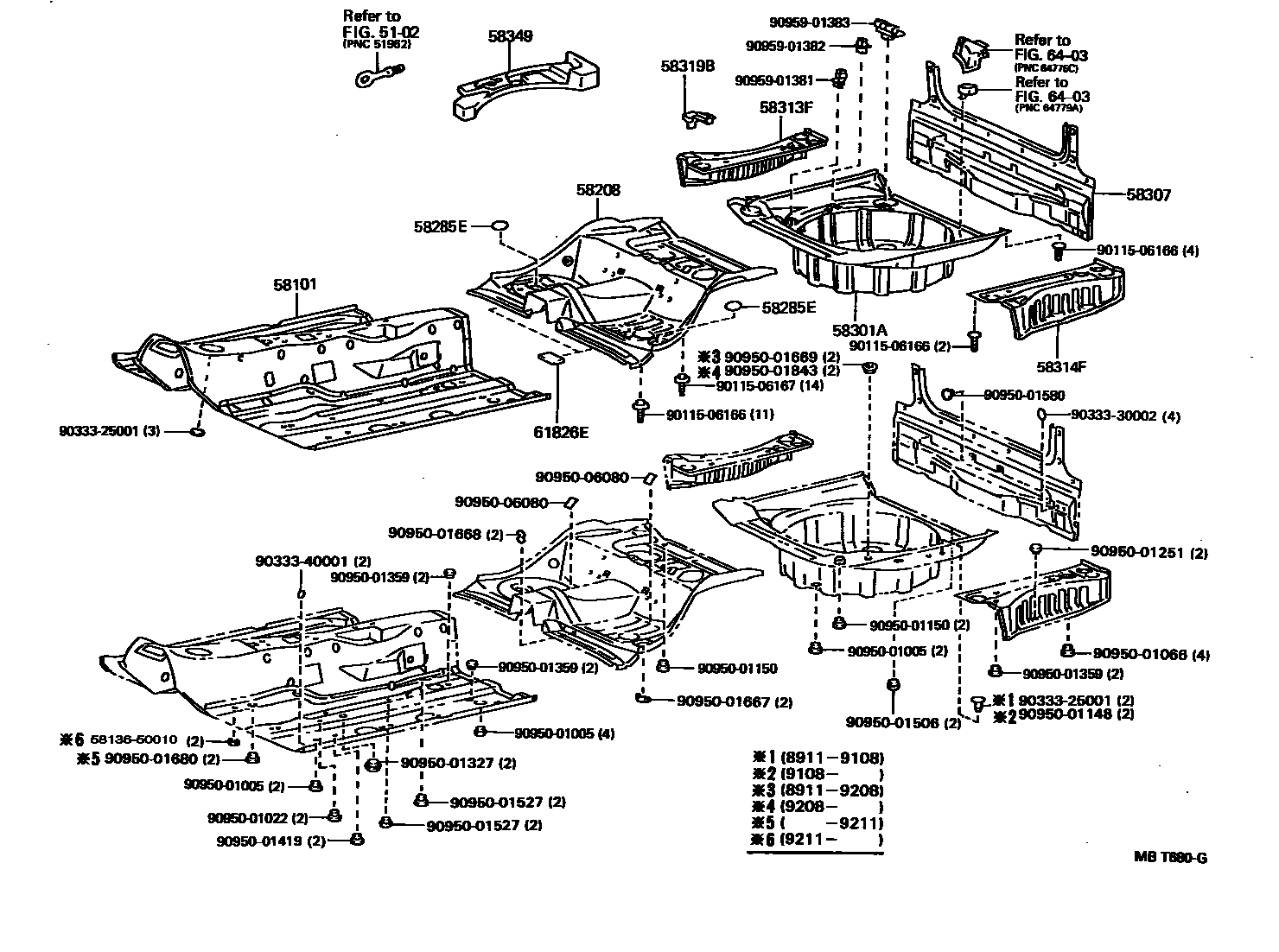

Parts diagram

5102

58101PAN SUB-ASSY, FRONT FLOOR

main58101-50020i198911-199208

main58101-50021i199208-199211

main58101-50022i199211-199405

main58101-50023i199405-199410

58208PAN, CENTER FLOOR

main58201-50901i198911-199403

main58201-50902i198911-199403

58285ECOVER, CENTER FLOOR HOLE

main58285-50010×2i198911-199410

58301APANEL SUB-ASSY, REAR FLOOR

main58301-50900i198911-199202

main58301-50902i199202-199208

main58301-50903i199208-199410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-50010i198911-199212

main58307-50011i199212-199410

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-50010i198911-199410

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-50010i198911-199205

main58314-50011i199205-199410

58319BBRACKET, REAR FLOOR SIDE PANEL

main58319-50010×2i198911-199207

main58319-50011i199207-199410

58349CUSHION, REAR FLOOR SIDE

main58349-50010i198911-199208

main58349-50011i199208-199410

61826EPLATE, NOISE CONTROL, NO.3

main61826-22010×2i199007-199410

6403

5813650010COVER, FRONT FLOOR HOLE

main58136-50010

9011506166

main90115-06166

9011506167

main90115-06167

9033325001

main90333-25001

9033330002

main90333-30002

9033340001

main90333-40001

9095001005

main90950-01005

9095001022

main90950-01022

9095001066

main90950-01066

9095001148

main90950-01148

9095001150

main90950-01150

9095001251

main90950-01251

9095001327

main90950-01327

9095001359

main90950-01359

9095001419

main90950-01419

9095001506

main90950-01506

9095001527

main90950-01527

9095001580

main90950-01580

9095001667

main90950-01667

9095001668

main90950-01668

9095001669

main90950-01669

9095001680

main90950-01680

9095001843

main90950-01843

9095006080

main90950-06080

9095901381

main90959-01381

9095901382

main90959-01382

9095901383

main90959-01383

39 parts on this diagram · 1 diagram in section
