Toyota CELSIOR — DISTRIBUTOR

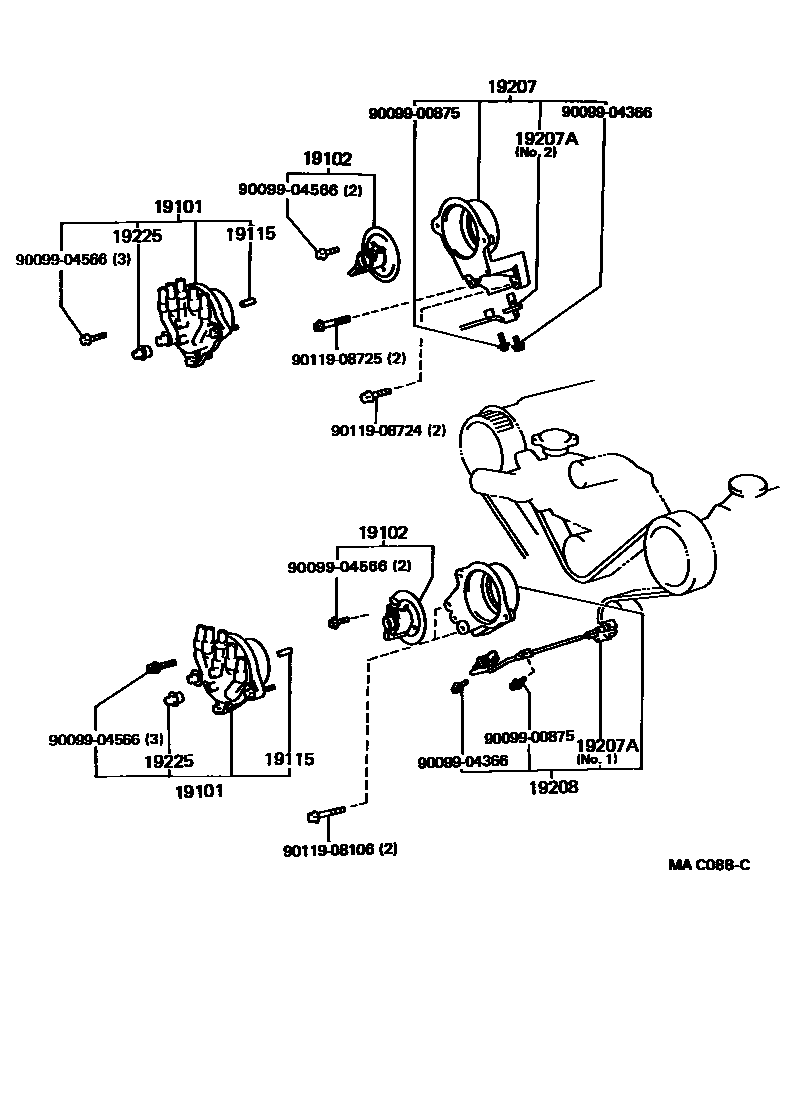

Parts diagram

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-50020×2i199410-199707

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-50020×2i199410-199707

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010×2i199410-199707

19207HOUSING SUB-ASSY, DISTRIBUTOR, RH

main19207-50010i199410-199707

19207ASENSOR, CAM POSITION

main90919-05003i199410-199707

main90919-05004i199410-199707

19208HOUSING SUB-ASSY, DISTRIBUTOR, LH

main19208-50010i199410-199707

19225CAP, RUBBER

main19225-50010×4i199410-199707

9009900875

main90099-00875

9009904366

main90099-04366

9009904566

main90099-04566

9011908106

main90119-08106

9011908724

main90119-08724

9011908725

main90119-08725

13 parts on this diagram · 1 diagram in section
