Toyota CELSIOR — COWL PANEL & WINDSHIELD GLASS

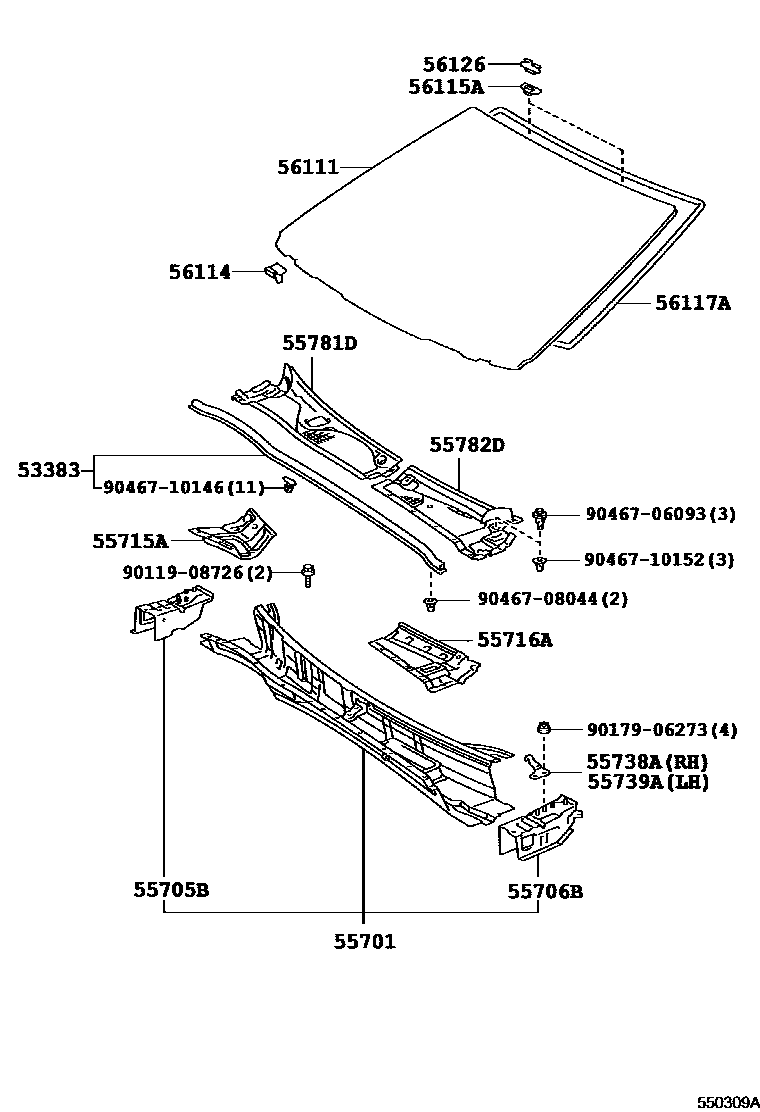

Parts diagram

53383SEAL, HOOD TO COWL TOP

main53383-50020i199410-199707

main53383-50030i199707

55701PANEL SUB-ASSY, COWL

main55700-50090i199410

main55700-50100i199410

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-50020i199410

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-50020i199410

55715ABRACE, COWL TOP TO APRON, RH

main55715-50040i199410

55716ABRACE, COWL TOP TO APRON, LH

main55716-50040i199410

55738ASTOPPER, HOOD, RH

main55738-50020i199410

55739ASTOPPER, HOOD, LH

main55739-50020i199410

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-50060i199410

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-50040i199410

56111GLASS, WINDSHIELD

main56101-50080i199410-199608

main56101-50100i199410-199608

main56101-50140i199608-199707

main56101-50170i199707

main56101-50200i199808

main56111-50120i199410-199608

main56111-50130i199410-199608

main56111-50180i199608-199707

main56111-50200i199707

main56111-50220i199808

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2i199410

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30090×2i199410

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50020i199410-199709

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-30010×2i199410-199707

main56126-50030×2i199707

9011908726

main90119-08726

9017906273

main90179-06273

9046706093

main90467-06093

9046708044

main90467-08044

9046710146

main90467-10146

9046710152

main90467-10152

21 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota CELSIOR

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELSIOR. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
