Toyota CELSIOR — COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56117DDAM, WINDSHIELD GLASS ADHESIVE
62554GPAD, PILLAR, NO.4
9033330002
main90333-30002
9046706084
main90467-06084
9046708011
main90467-08011
9046710206
main90467-10206
9095001919
main90950-01919
23 parts on this diagram · 1 diagram in section

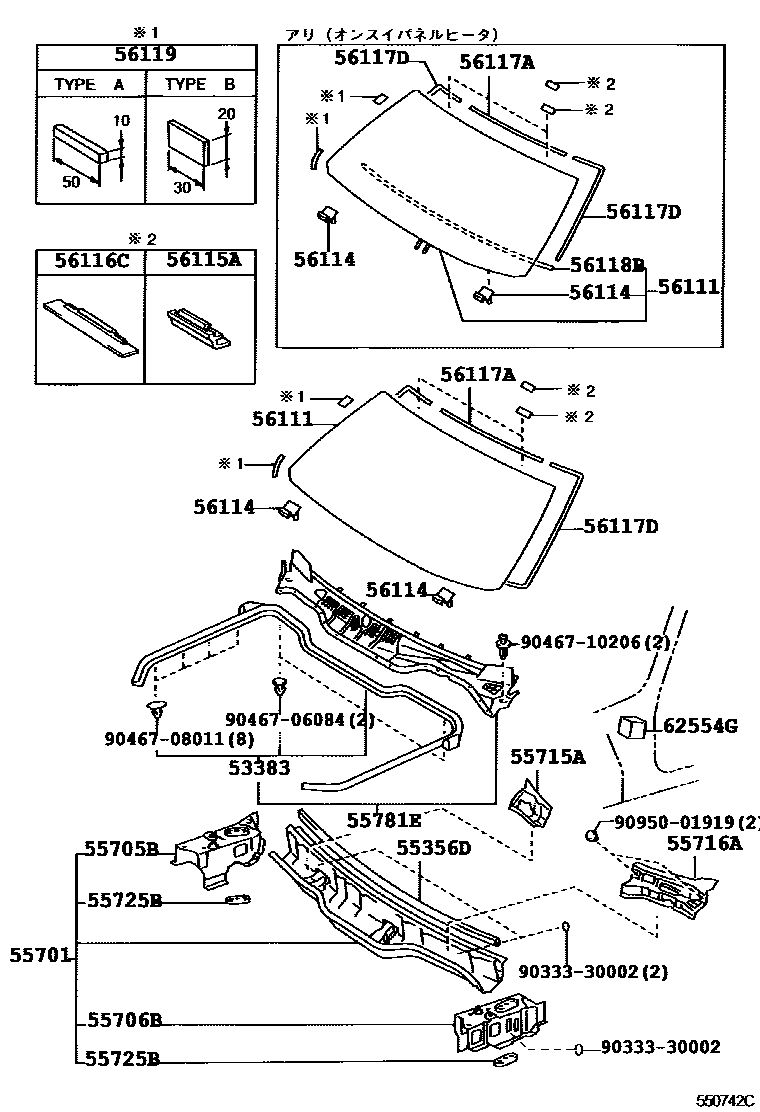

COWL PANEL & WINDSHIELD GLASS for Toyota CELSIOR
This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELSIOR. Key components include: SEAL, HOOD TO COWL TOP, CUSHION, INSTRUMENT PANEL, NO.2, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
