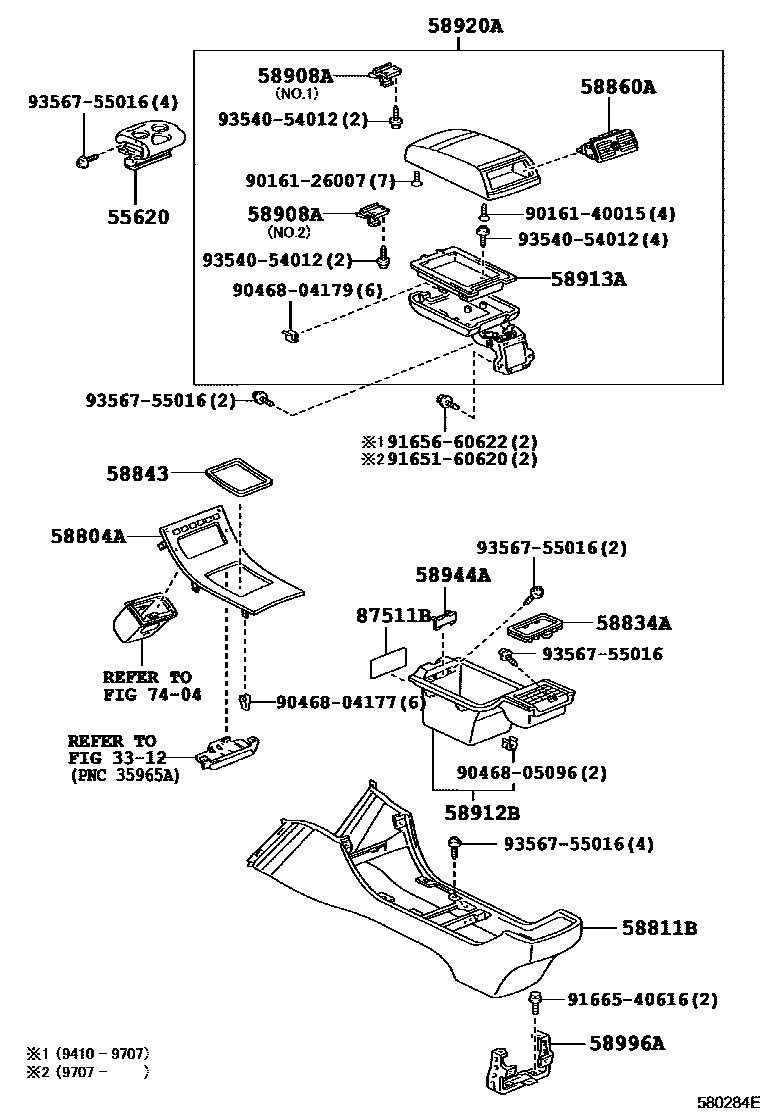

Toyota CELSIOR — CONSOLE BOX & BRACKET

Parts diagram

3312

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-50020i199410

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-50020i199410-199707

main58804-50030i199410-199707

main58804-50040i199410-199707

main58804-50050i199608-199707

main58804-50060i199608-199707

main58804-50070i199410-199707

main58804-50080i199410-199707

main58804-50090i199608-199707

main58804-50100i199608-199707

main58804-50120i199707-200008

main58804-50130i199707-200008

main58804-50140i199707-200008

main58804-50150i199707-200008

main58804-50160i199707-200008

main58804-50170i199707-200008

main58804-50180i199707-200008

main58804-50190i199905-199908

main58804-50200i199905-199908

main58804-50210i199905-199908

main58804-50220i199905-199908

58811BBOX, CONSOLE

main58801-50020-A0i199410-199707

IVORY,TRIM0#

main58801-50020-A1i199707-200008

IVORY,TRIM0#

main58801-50020-B0i199410-200008

BLUE GRAY,TRIM1#

main58801-50020-C0i199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main58801-50020-G0i199410-200008

AGATE,TRIM6#

58834ACOVER, CONSOLE, LOWER

main58834-50020i199410

58843BEZEL, SHIFTING HOLE

main58843-50020i199410

58860AREGISTER ASSY, CONSOLE BOX

main58860-50020-A0i199410-199707

IVORY,TRIM0#

main58860-50020-A1i199707-200008

IVORY,TRIM0#

main58860-50020-B0i199410-200008

BLUE GRAY,TRIM1#

main58860-50020-C0i199608-200008

BLACK,TRIM2#

main58860-50020-G0i199410-200008

AGATE,TRIM6#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-50010i199410-199501

main58908-50020i199410

main58908-50030i199502

58912BBOX, REAR CONSOLE, LOWER

main58912-50040i199410-199608

main58912-50050i199608

58913APANEL, BOX, NO.3

main58913-50010i199410

58920AARMREST ASSY, REAR CONSOLE

main58920-50010-B0i199410-199608

BLUE GRAY,TRIM1#

main58920-50010-B1i199608-199707

BLUE GRAY,TRIM1#

main58920-50010-G0i199410-199608

AGATE,TRIM6#

main58920-50010-G1i199608-199707

AGATE,TRIM6#

main58920-50020-A0i199410-199707

main58920-50020-G0i199410-199707

main58920-50030-C0i199608-199707

BLACK,TRIM2#

main58920-50040-B0i199410-199707

main58920-50050-A0i199410-199608

IVORY,TRIM0#

main58920-50050-B0i199410-199608

BLUE GRAY,TRIM1#

main58920-50050-G0i199410-199608

AGATE,TRIM6#

main58920-50051-A1i199608-199707

IVORY,TRIM0#

main58920-50051-B1i199608-199707

BLUE GRAY,TRIM1#

main58920-50051-G1i199608-199707

AGATE,TRIM6#

main58920-50060-B0i199707-199712

BLUE GRAY,TRIM1#

main58920-50060-G0i199707-199712

AGATE,TRIM6#

main58920-50061-B0i199712-200008

BLUE GRAY,TRIM1#

main58920-50061-G0i199712-200008

AGATE,TRIM6#

main58920-50070-A0i199707-199712

main58920-50070-G0i199707-199712

main58920-50071-A0i199712-200008

main58920-50071-C0i199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main58920-50071-G0i199712-200008

main58920-50080-C0i199707-199712

BLACK,TRIM2#

main58920-50081-A0i199808-200008

main58920-50081-B0i199808-200008

main58920-50081-C0i199712-200008

BLACK,TRIM2#

main58920-50081-G0i199808-200008

main58920-50090-B0i199707-199712

main58920-50091-B0i199712-200008

main58920-50100-A0i199707-199712

IVORY,TRIM0#

main58920-50100-B0i199707-199712

BLUE GRAY,TRIM1#

main58920-50100-G0i199707-199712

AGATE,TRIM6#

main58920-50101-A0i199712-200008

IVORY,TRIM0#

main58920-50101-B0i199712-200008

BLUE GRAY,TRIM1#

main58920-50101-G0i199712-200008

AGATE,TRIM6#

58944ACOVER, CONSOLE, REAR

main58944-50010i199410

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-50020i199410

7404

87511BPLATE, SEAT HEATER CAUTION

main87511-24010i199608

9016126007

main90161-26007

9016140015

main90161-40015

9046804177

main90468-04177

9046804179

main90468-04179

9046805096

main90468-05096

9165160620

main91651-60620

9165660622

main91656-60622

9166540616

main91665-40616

9354054012

main93540-54012

9356755016

main93567-55016

25 parts on this diagram · 2 diagrams in section
