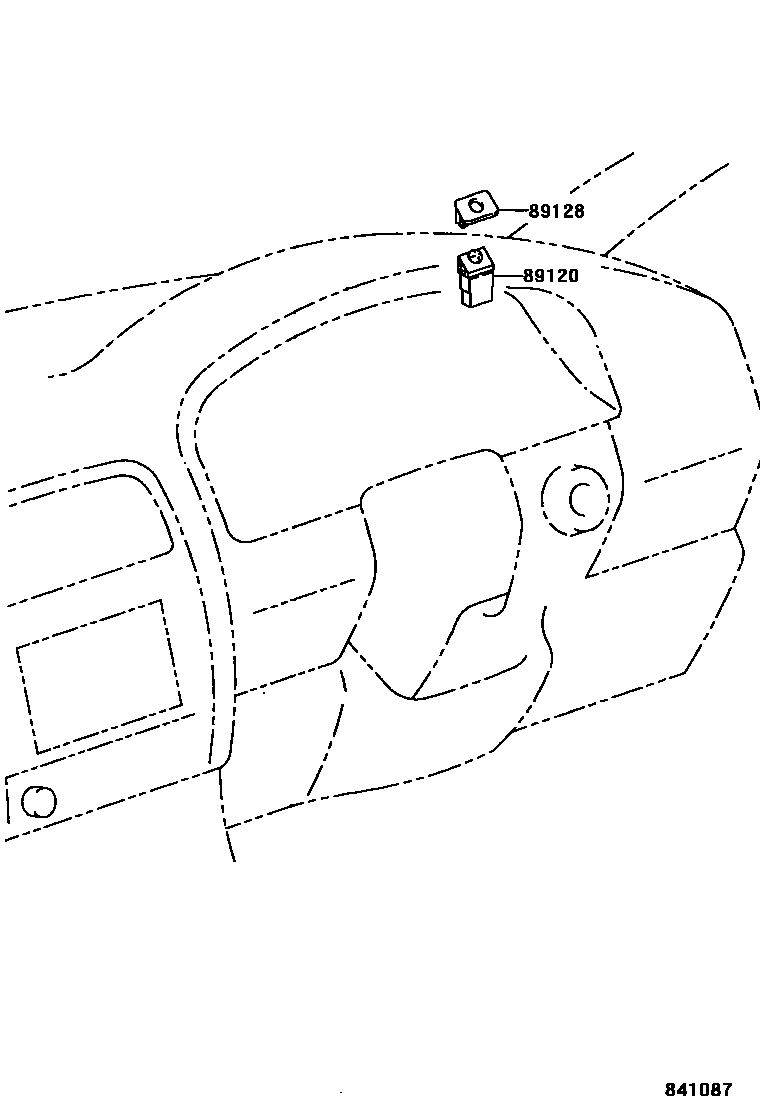

Toyota CELSIOR — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-50060iUCF2#199410-199707

main89121-50010iUCF2#199707

89128NUT, CONLIGHT SCANNER

main89128-50010-B1iUCF2#199410-200008

DK. BLUE GRAY,TRIM1#

main89128-50010-C1iUCF20199608-200008

BLACK,TRIM2#

main89128-50010-E1iUCF2#..B,C199410-199707

OAK,TRIM0#

main89128-50010-E2iUCF2#..B,C199707-200008

SANDALWOOD,TRIM0#

main89128-50010-G1iUCF2#199410-200008

DK.AGATE,TRIM6#

2 parts on this diagram · 1 diagram in section
