Toyota CELSIOR — ARMREST & VISOR

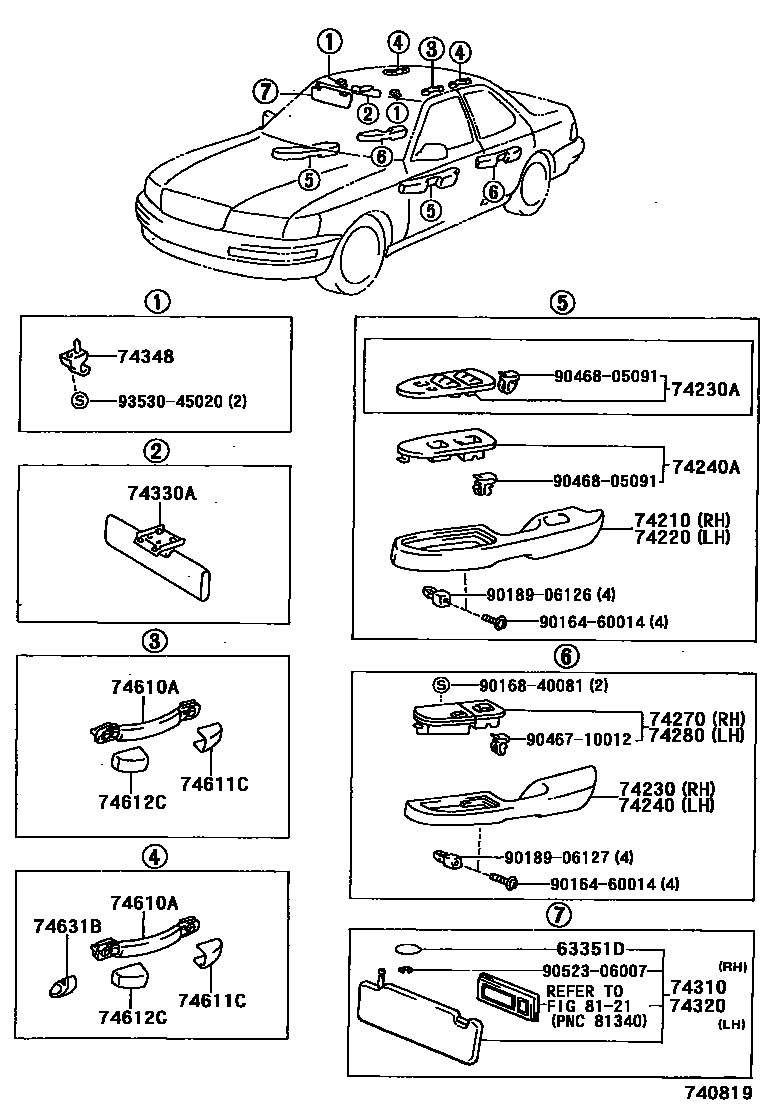

Parts diagram
63351DPAD, ROOF HEADLINING
main63351-50010×2i199105-199410
74210ARMREST ASSY, FRONT, RH
main74210-50020-03i198911-199208
GRAY,TRIM1#
main74210-50020-04i198911-199208
BLUE,TRIM8#
main74210-50020-06i198911-199208
ROSE,TRIM4#
main74210-50020-08i198911-199208
IVORY,TRIM0#
main74210-50020-A0i199208-199410
IVORY,TRIM0#
main74210-50020-K0i199208-199410
ME. TAUPE,TRIM9#
main74210-50020-S7i199208-199410
SLATE GRAY,TRIM1#
main74210-50020-W4i199208-199410
EISEN BLUE,TRIM8#
74220ARMREST ASSY, FRONT, LH
main74220-50020-03i198911-199208
GRAY,TRIM1#
main74220-50020-04i198911-199208
BLUE,TRIM8#
main74220-50020-06i198911-199208
ROSE,TRIM4#
main74220-50020-08i198911-199208
IVORY,TRIM0#
main74220-50020-A0i199208-199410
IVORY,TRIM0#
main74220-50020-K0i199208-199410
ME. TAUPE,TRIM9#
main74220-50020-S7i199208-199410
SLATE GRAY,TRIM1#
main74220-50020-W4i199208-199410
EISEN BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
main74250-50010-03i198911-199208
GRAY,TRIM1#
main74250-50010-04i198911-199208
BLUE,TRIM8#
main74250-50010-06i198911-199208
ROSE,TRIM4#
main74250-50010-08i198911-199208
IVORY,TRIM0#
main74250-50010-A0i199208-199410
IVORY,TRIM0#
main74250-50010-K0i199208-199410
ME. TAUPE,TRIM9#
main74250-50010-S7i199208-199410
SLATE GRAY,TRIM1#
main74250-50010-W4i199208-199410
EISEN BLUE,TRIM8#
main74250-50020-03i198911-199001
main74250-50020-04i198911-199001
main74250-50020-06i198911-199001
main74250-50020-08i198911-199001
main74250-50020-A0i199208-199410
main74250-50020-K0i199208-199410
main74250-50020-S7i199208-199410
main74250-50020-W4i199208-199410
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
main74230-50020i198911-199410
74240ARMREST ASSY, REAR, LH
main74260-50010-03i198911-199208
GRAY,TRIM1#
main74260-50010-04i198911-199208
BLUE,TRIM8#
main74260-50010-06i198911-199208
ROSE,TRIM4#
main74260-50010-08i198911-199208
IVORY,TRIM0#
main74260-50010-A0i199208-199410
IVORY,TRIM0#
main74260-50010-K0i199208-199410
ME. TAUPE,TRIM9#
main74260-50010-S7i199208-199410
SLATE GRAY,TRIM1#
main74260-50010-W4i199208-199410
EISEN BLUE,TRIM8#
main74260-50020-03i198911-199001
main74260-50020-04i198911-199001
main74260-50020-06i199001-199208
main74260-50020-08i198911-199001
main74260-50020-A0i199208-199410
main74260-50020-K0i199208-199410
main74260-50020-S7i199208-199410
main74260-50020-W4i199208-199410
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
main74240-50020i198911-199410
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
main74270-50010i198911-199410
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
main74280-50010i198911-199410
74310VISOR ASSY, RH
main74310-59035-B0i198911-199208
SHADOW GRAY,TRIM1#
main74310-59035-E0i198911-199208
GREIGE,TRIM0#
main74310-59035-E1i198911-199208
DARK ROSE,TRIM4#
main74310-59035-J0i198911-199208
DARK BLUE,TRIM8#
main74310-59045-B0i198911-199208
main74310-59045-E0i198911-199208
main74310-59045-E1i198911-199208
main74310-59045-J0i198911-199208
main74310-59065-B0i199208-199410
SHADOW GRAY,TRIM1#
main74310-59065-E0i199208-199410
OAK,TRIM0#
main74310-59065-J0i199208-199410
DK. BLUE,TRIM8#
main74310-59065-K0i199208-199410
TAUPE,TRIM9#
74320VISOR ASSY, LH
main74320-59035-B0i198911-199208
SHADOW GRAY,TRIM1#
main74320-59035-E0i198911-199208
GREIGE,TRIM0#
main74320-59035-E1i198911-199208
DARK ROSE,TRIM4#
main74320-59035-J0i198911-199208
DARK BLUE,TRIM8#
main74320-59045-B0i199208-199410
SHADOW GRAY,TRIM1#
main74320-59045-E0i199208-199410
OAK,TRIM0#
main74320-59045-J0i199208-199410
DK. BLUE,TRIM8#
main74320-59045-K0i199208-199410
TAUPE,TRIM9#
74330AVISOR ASSY, CENTER
main74330-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main74330-50010-04i198911-199208
DARK BLUE,TRIM8#
main74330-50010-05i198911-199208
GREIGE,TRIM0#
main74330-50010-06i198911-199208
DARK ROSE,TRIM4#
main74330-50020-B1i199208-199410
SHADOW GRAY,TRIM1#
main74330-50020-E1i199208-199410
OAK,TRIM0#
main74330-50020-J1i199208-199410
DK. BLUE,TRIM8#
main74330-50020-K1i199208-199410
TAUPE,TRIM9#
74348HOLDER, VISOR
main74348-50010-03×2i198911-199208
SHADOW GRAY,TRIM1#
main74348-50010-04×2i198911-199208
DARK BLUE,TRIM8#
main74348-50010-05×2i198911-199208
GREIGE,TRIM0#
main74348-50010-06×2i198911-199208
DARK ROSE,TRIM4#
main74348-50010-E0×2i199208-199410
OAK,TRIM0#
main74348-50010-K0×2i199208-199410
TAUPE,TRIM9#
main74348-50010-P0×2i199208-199410
SHADOW GRAY,TRIM1#
main74348-50010-W3×2i199208-199410
DK. BLUE,TRIM8#
74610AGRIP SUB-ASSY, ASSIST
main74610-50010-03i198911-199208
SHADOW GRAY,TRIM1#,FRONT
main74610-50010-04i198911-199208
DARK BLUE,TRIM8#,FRONT
main74610-50010-05i198911-199208
GREIGE,TRIM0#,FRONT
main74610-50010-06i198911-199208
DARK ROSE,TRIM4#,FRONT
main74610-50010-E0i199208-199410
OAK,TRIM0#,FRONT
main74610-50010-K0i199208-199410
TAUPE,TRIM9#,FRONT
main74610-50010-P0i199208-199410
SHADOW GRAY,TRIM1#,FRONT
main74610-50010-W3i199208-199410
DK. BLUE,TRIM8#,FRONT
main74620-50010-03×2i198911-199208
SHADOW GRAY,TRIM1#,REAR
main74620-50010-04×2i198911-199208
DARK BLUE,TRIM8#,REAR
main74620-50010-05×2i198911-199208
GREIGE,TRIM0#,REAR
main74620-50010-06×2i198911-199208
DARK ROSE,TRIM4#,REAR
main74620-50010-E0×2i199208-199410
OAK,TRIM0#,REAR
main74620-50010-K0×2i199208-199410
TAUPE,TRIM9#,REAR
main74620-50010-P0×2i199208-199410
SHADOW GRAY,TRIM1#,REAR
main74620-50010-W3×2i199208-199410
DK. BLUE,TRIM8#,REAR
74611CCOVER, ASSIST GRIP, LH
main74611-50010-03×3i198911-199208
SHADOW GRAY,TRIM1#
main74611-50010-04×3i198911-199208
DARK BLUE,TRIM8#
main74611-50010-05×3i198911-199208
GREIGE,TRIM0#
main74611-50010-06×3i198911-199208
DARK ROSE,TRIM4#
main74611-50010-E0×3i199208-199410
OAK,TRIM0#
main74611-50010-K0×3i199208-199410
TAUPE,TRIM9#
main74611-50010-P0×3i199208-199410
SHADOW GRAY,TRIM1#
main74611-50010-W3×3i199208-199410
DK. BLUE,TRIM8#
74612CCOVER, ASSIST GRIP, RH
main74612-50010-03×3i198911-199208
SHADOW GRAY,TRIM1#
main74612-50010-04×3i198911-199208
DARK BLUE,TRIM8#
main74612-50010-05×3i198911-199208
GREIGE,TRIM0#
main74612-50010-06×3i198911-199208
DARK ROSE,TRIM4#
main74612-50010-E0×3i199208-199410
OAK,TRIM0#
main74612-50010-K0×3i199208-199410
TAUPE,TRIM9#
main74612-50010-P0×3i199208-199410
SHADOW GRAY,TRIM1#
main74612-50010-W3×3i199208-199410
DK. BLUE,TRIM8#
74631BHOOK, COAT
main74631-50010-03×2i198911-199208
SHADOW GRAY,TRIM1#
main74631-50010-04×2i198911-199208
DARK BLUE,TRIM8#
main74631-50010-05×2i198911-199208
GREIGE,TRIM0#
main74631-50010-06×2i198911-199208
DARK ROSE,TRIM4#
main74631-50010-E0×2i199208-199410
OAK,TRIM0#
main74631-50010-K0×2i199208-199410
TAUPE,TRIM9#
main74631-50010-P0×2i199208-199410
SHADOW GRAY,TRIM1#
main74631-50010-W3×2i199208-199410
DK. BLUE,TRIM8#
8121
9016460014
main90164-60014
9016840081
main90168-40081
9018906126
main90189-06126
9018906127
main90189-06127
9046710012
main90467-10012
9046805091
main90468-05091
9052306007
main90523-06007
9353045020
main93530-45020

26 parts on this diagram · 1 diagram in section
