Toyota CELSIOR — ANTENNA

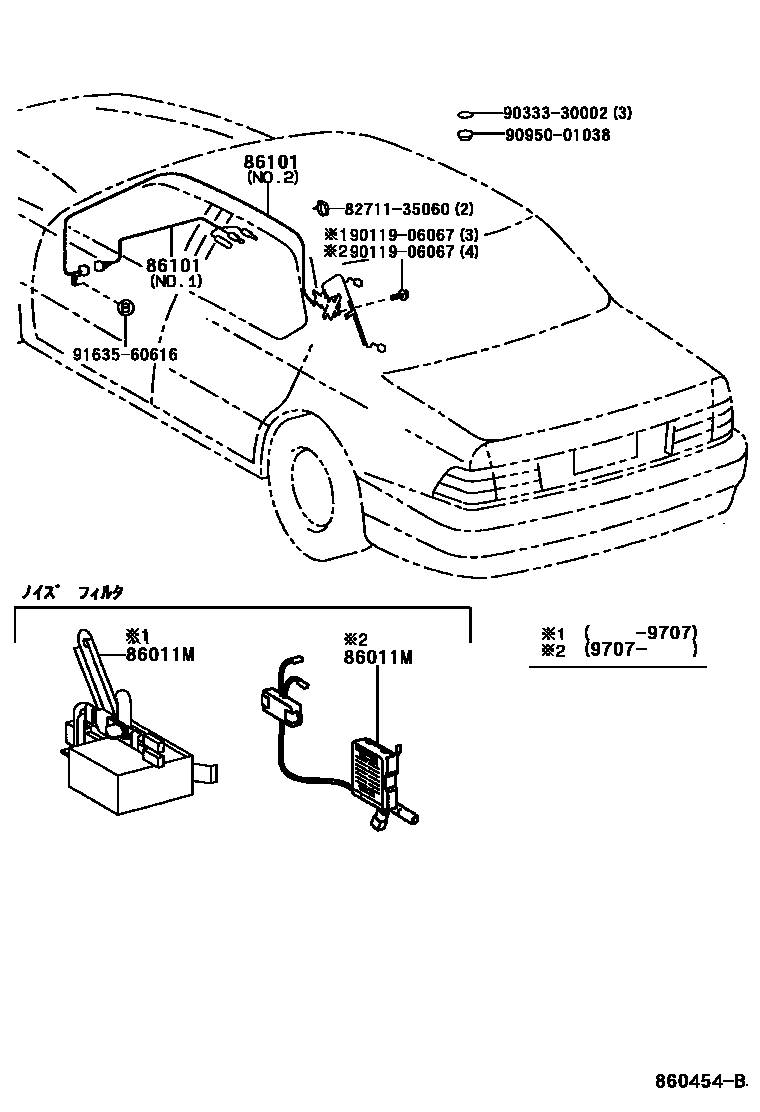

Parts diagram

86011MFILTER, NOISE

main90980-05294i199410-199707

main90980-05312i199707

86101CORD SUB-ASSY, ANTENNA

main86101-50260i199410-199707

main86101-50290i199707

main86101-50300i199707

main86101-50370i199707-199808

main86101-50381i199808

main86300-50130i199410-199707

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9011906067

main90119-06067

9033330002

main90333-30002

9095001038

main90950-01038

9163560616

main91635-60616

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CELSIOR

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota CELSIOR. Key components include: FILTER, NOISE, CORD SUB-ASSY, ANTENNA, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
