Toyota CELSIOR — ANTENNA

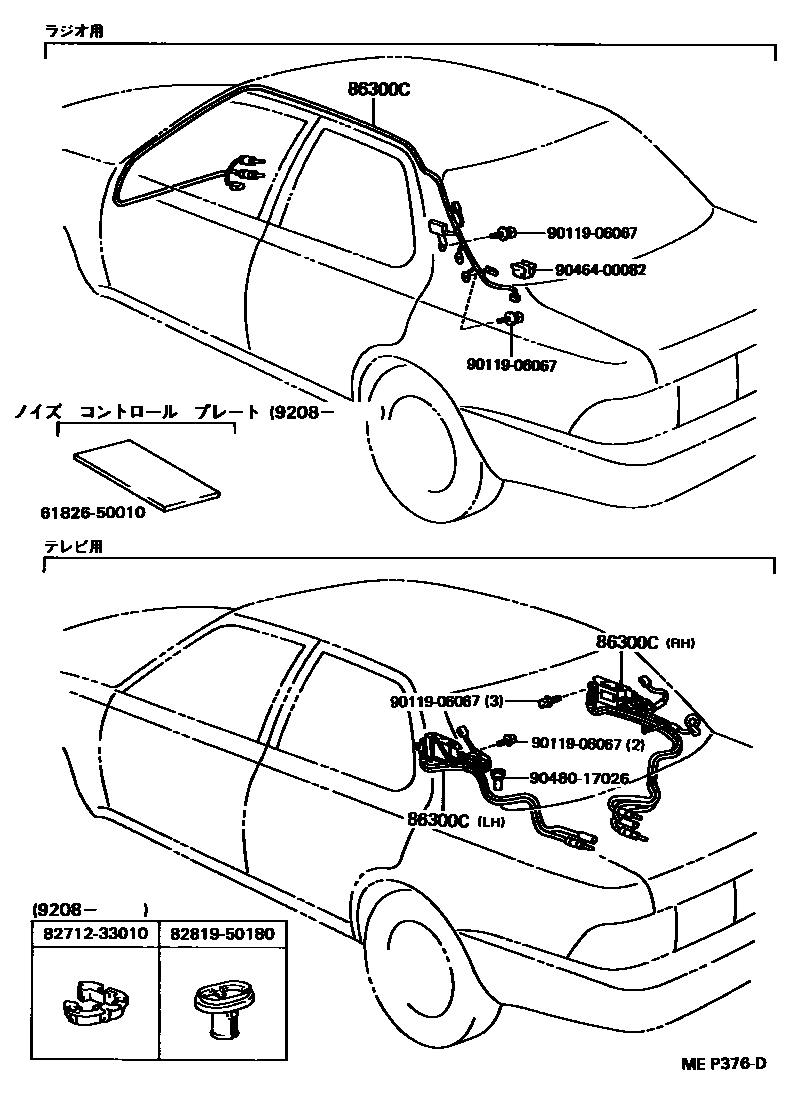

Parts diagram

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-50030i198911-199004

main86300-50031i199004-199208

main86300-50040i198911-199004

main86300-50041i199004-199208

main86300-50050i198911-199004

main86300-50051i199004-199208

main86300-50060i199208-199410

main86300-50070i198911-199208

main86300-50100i199208-199410

main86300-50110i199208-199410

main86300-50120i199208-199410

6182650010PLATE, QUARTER INNER PANEL, LOWER FRONT LH

main61826-50010

8271233010CLAMP, WIRING HARNESS

main82712-33010

8281950180GROMMET, WIRING HARNESS

main82819-50180

9011906067

main90119-06067

9046400082

main90464-00082

9048017026

main90480-17026

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CELSIOR

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota CELSIOR. Key components include: ANTENNA ASSY, AMPLIFIER, NO.2, PLATE, QUARTER INNER PANEL, LOWER FRONT LH, CLAMP, WIRING HARNESS, GROMMET, WIRING HARNESS.
