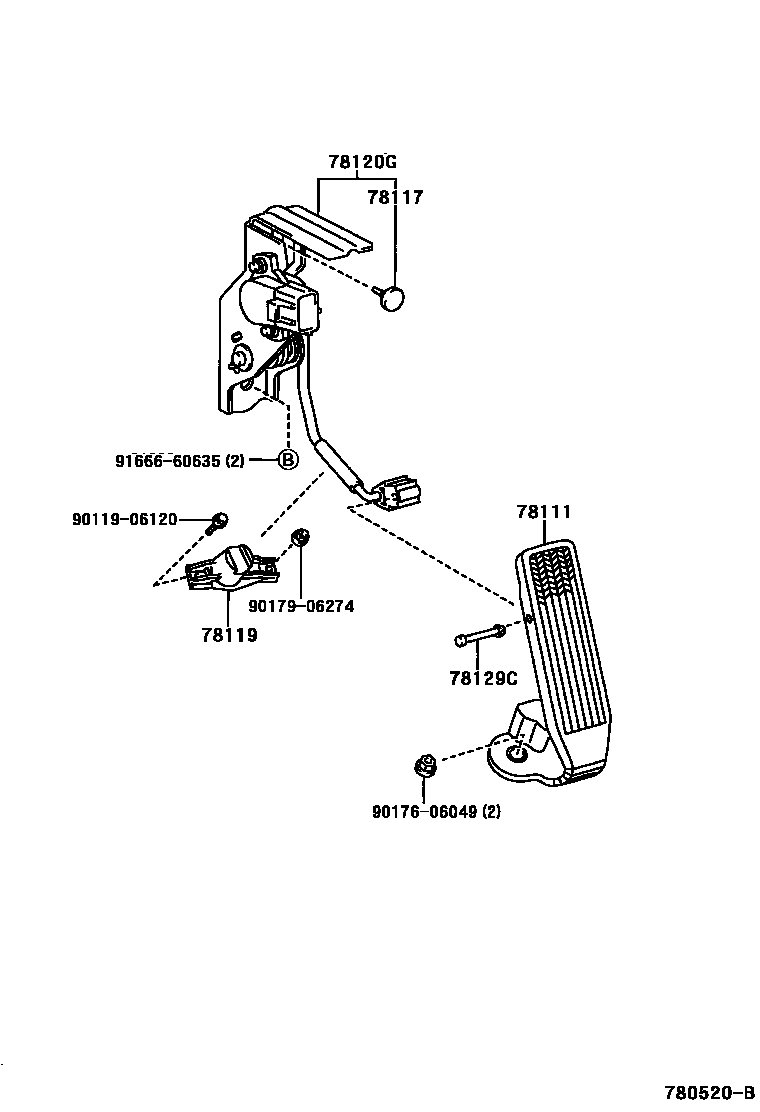

Toyota CELSIOR — ACCELERATOR LINK

78111PEDAL, ACCELERATOR

main78111-50040iUCF3#200008-200307

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06008iUCF3#200008-200302

main90541-06036iUCF3#200302-200307

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50060iUCF3#200008-200307

78120GROD ASSY, ACCELERATOR PEDAL

main78010-50010iUCF3#200008-200107

main78010-50011iUCF3#200107-200302

main78010-50020iUCF3#200302-200307

78129CPIN, ACCELERATOR PEDAL ROD ROLLER

main78129-50010iUCF3#200008-200307

9011906120

main90119-06120

9017606049

main90176-06049

9017906274

main90179-06274

9166660635

main91666-60635

9 parts on this diagram · 1 diagram in section
