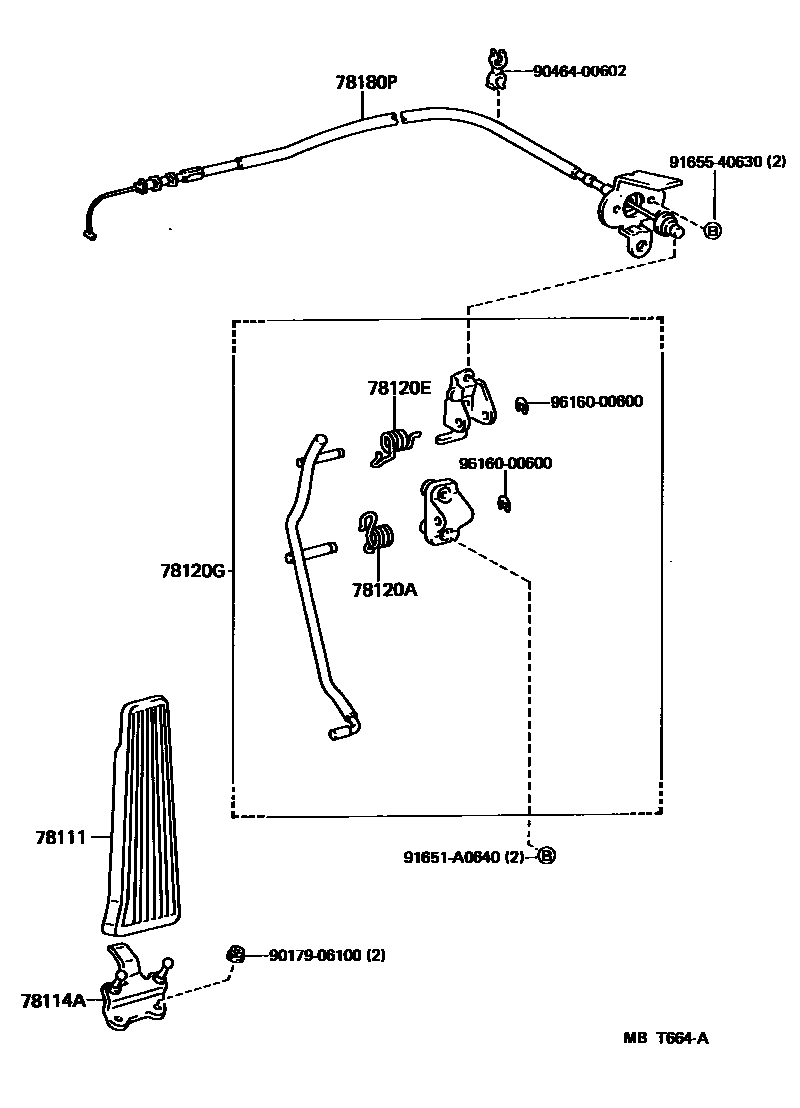

Toyota CELSIOR — ACCELERATOR LINK

0001 1 0002 1����� ���

78111PEDAL, ACCELERATOR

main78111-12100iUCF1#198911-199410

main78111-50010iUCF1#198911-199101

main78111-50020iUCF1#199101-199104

main78111-50030iUCF1#199104-199410

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-50010iUCF1#198911-199102

main78114-50020iUCF1#199102-199209

main78114-50021iUCF1#199209-199410

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18077iUCF1#198911-199410

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-23088iUCF1#198911-199410

main90508-29022iUCF1#198911-199410

78120GROD ASSY, ACCELERATOR PEDAL

main78120-50020iUCF1#198911-199410

main78120-50030iUCF1#198911-199410

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-50020iUCF1#198911-199111

main78180-50021iUCF1#199111-199208

main78180-50022iUCF1#199208-199410

9017906100

main90179-06100

9046400602

main90464-00602

91651A0640

main91651-A0640

9165540630

main91655-40630

9616000600

main96160-00600

11 parts on this diagram · 2 diagrams in section
