Toyota CELSIOR — ABS & VSC

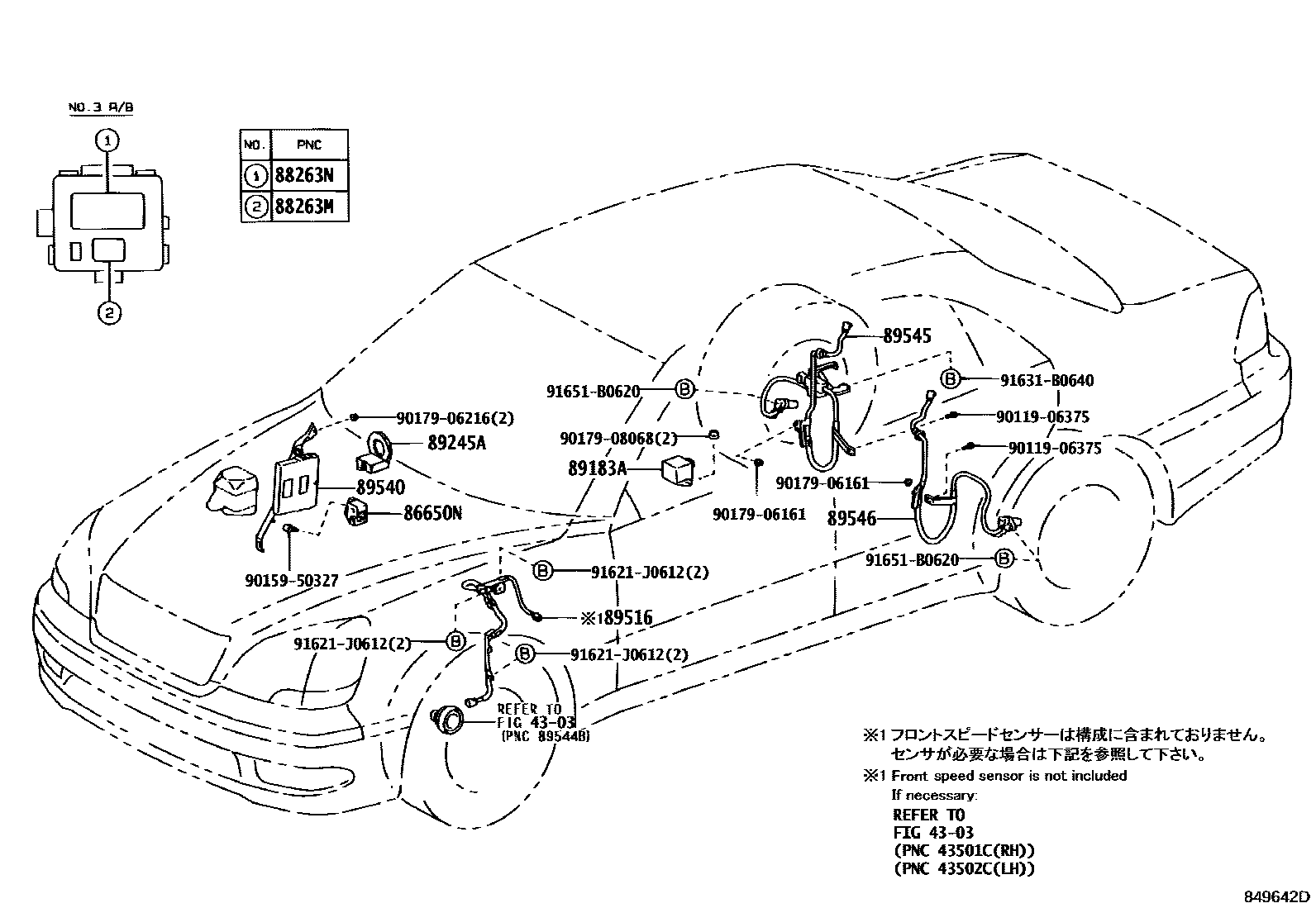

Parts diagram

4303FRONT AXLE HUB

→ Go to FIG 43-03

86650NBUZZER ASSY

main86650-5A010i200008-200307

main86650-5A040i200307

88263MRELAY, ABS SOLENOID

main88263-32070i200008-200307

88263NRELAY, ABS MOTOR

main88263-21010i200307

main88263-30150i200008-200307

89183ASENSOR, YAWRATE

main89183-30060i200008-200307

main89183-50020i200307

89245ASENSOR, STEERING

main89245-12010i200008-200307

main89245-48020i200307-200608

89516WIRE, SKID CONTROL SENSOR

main89516-50010i200008-200307

main89516-50020i200008-200307

89540COMPUTER ASSY, SKID CONTROL

main89540-50120i200008-200107

main89540-50140i200107-200307

89545SENSOR, SPEED, REAR RH

main89545-50040i200008-200307

main89545-50050i200307

89546SENSOR, SPEED, REAR LH

main89546-50040i200008-200307

main89546-50050i200307

9011906375

main90119-06375

9015950327

main90159-50327

9017906161

main90179-06161

9017906216

main90179-06216

9017908068

main90179-08068

91621J0612

main91621-J0612

91631B0640

main91631-B0640

91651B0620

main91651-B0620

18 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota CELSIOR

This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota CELSIOR. Key components include: FRONT AXLE HUB, BUZZER ASSY, RELAY, ABS SOLENOID, RELAY, ABS MOTOR, SENSOR, YAWRATE.
