Toyota CELSIOR — ABS & VSC

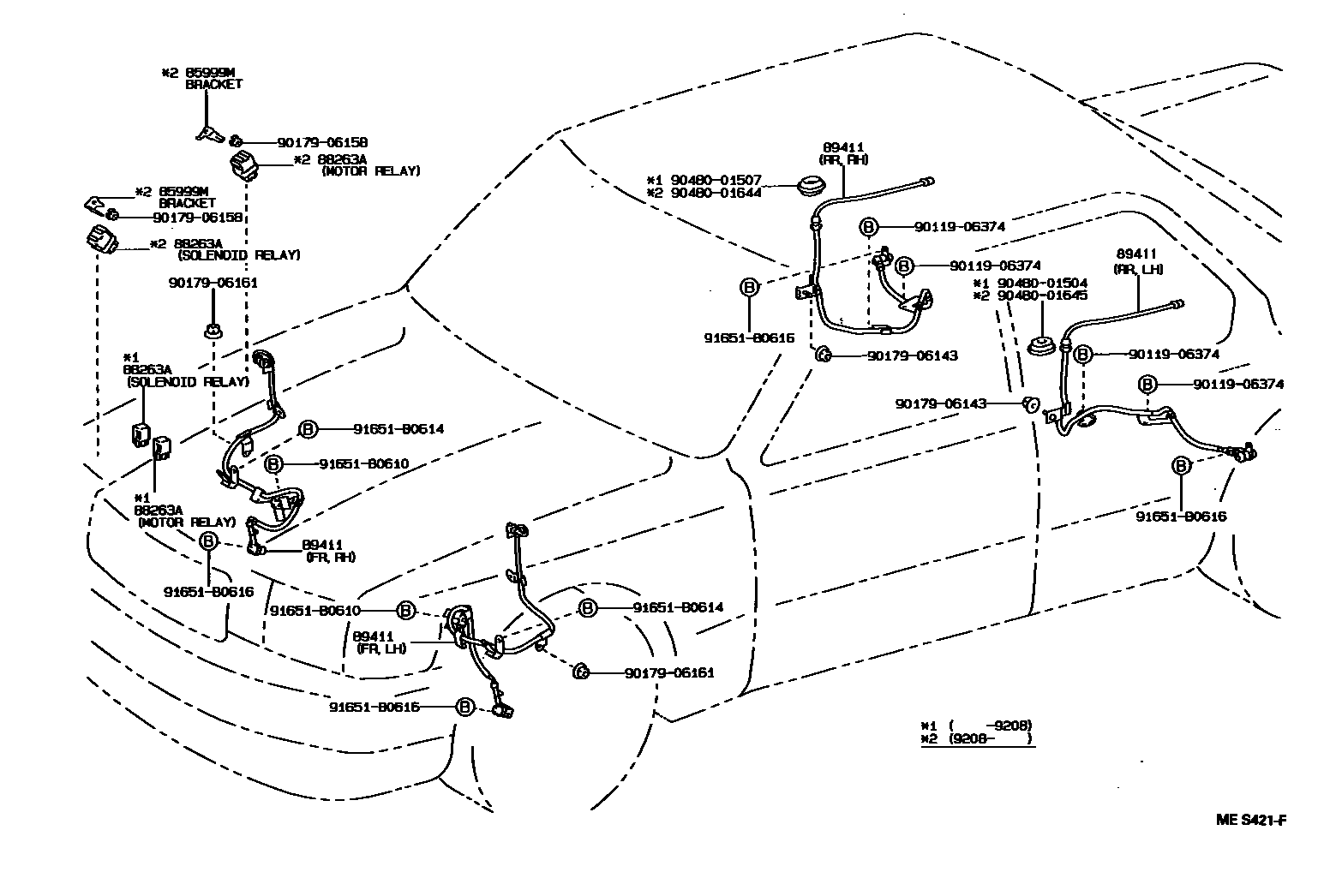

Parts diagram
85999MBRACKET, RELAY
main85999-50100i199208-199410
MOTOR RELAY
main85999-50110i199208-199410
SOLENOID RELAY
88263ARELAY, SKID CONTROL
main88263-14110i198911-199208
MOTOR RELAY
main88263-14120i198911-199208
SOLENOID RELAY
main88263-35070i199208-199410
SOLENOID RELAY
main89633-50030i199208-199410
MOTOR RELAY
89411SENSOR, SPEED
main89542-50020i198911-199208
FRONT,RH
main89542-50030i199208-199410
FRONT,RH
main89543-50020i198911-199208
FRONT,LH
main89543-50030i199208-199410
FRONT,LH
main89545-50010i198911-199208
REAR,RH
main89545-50020i199208-199410
REAR,RH
main89546-50010i198911-199208
REAR,LH
main89546-50020i199208-199410
REAR,LH
9011906374
main90119-06374
9017906143
main90179-06143
9017906158
main90179-06158
9017906161
main90179-06161
9048001504
main90480-01504
9048001507
main90480-01507
9048001644
main90480-01644
9048001645
main90480-01645
91651B0610
main91651-B0610
91651B0614
main91651-B0614
91651B0616
main91651-B0616

14 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota CELSIOR

This section contains 20 genuine Toyota parts for the ABS & VSC system of the Toyota CELSIOR. Key components include: BRACKET, RELAY, RELAY, SKID CONTROL, SENSOR, SPEED, COMPUTER ASSY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER.
