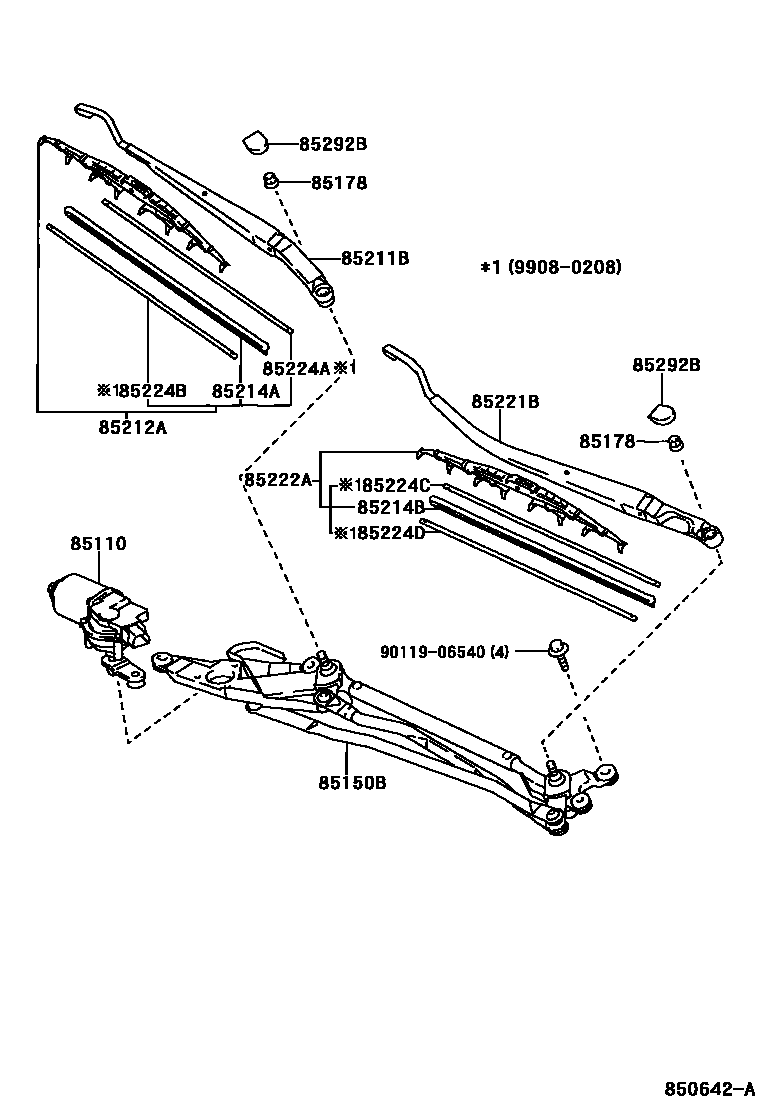

Toyota CELICA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-2B020iZZT23#199908-200208

main85110-2B040iZZT23#200208-200507

COLD SPEC

85150BLINK ASSY, WIPER

main85150-2B010iZZT23#200208-200507

main85150-2B020iZZT23#200208-200507

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iZZT23#200208-200507

85211BARM, FRONT WIPER, RH

main85211-20450iZZT23#200208-200507

85212ABLADE, FR WIPER, RH

main85212-13030iZZT23#200208-200507

sub85212-13031

main85212-44030iZZT23#199908-200208

85214ARUBBER, WIPER, RH

main85214-44030iZZT23#199908-200208

main85214-50060iZZT23#200208-200507

sub85214-50061

85214BRUBBER, WIPER, LH

main85214-20430iZZT23#199908-200106

main85214-44140iZZT23#200106-200208

85221BARM, FRONT WIPER, LH

main85221-20440iZZT23#199908-200208

85222ABLADE, FR WIPER, LH

main85222-20460iZZT23#199908-200208

main85222-48080iZZT23#200408-200507

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44020iZZT23#199908-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44020iZZT23#199908-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44060iZZT23#199908-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44060iZZT23#199908-200208

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZZT23#199908-200208

9011906540

main90119-06540

15 parts on this diagram · 1 diagram in section
