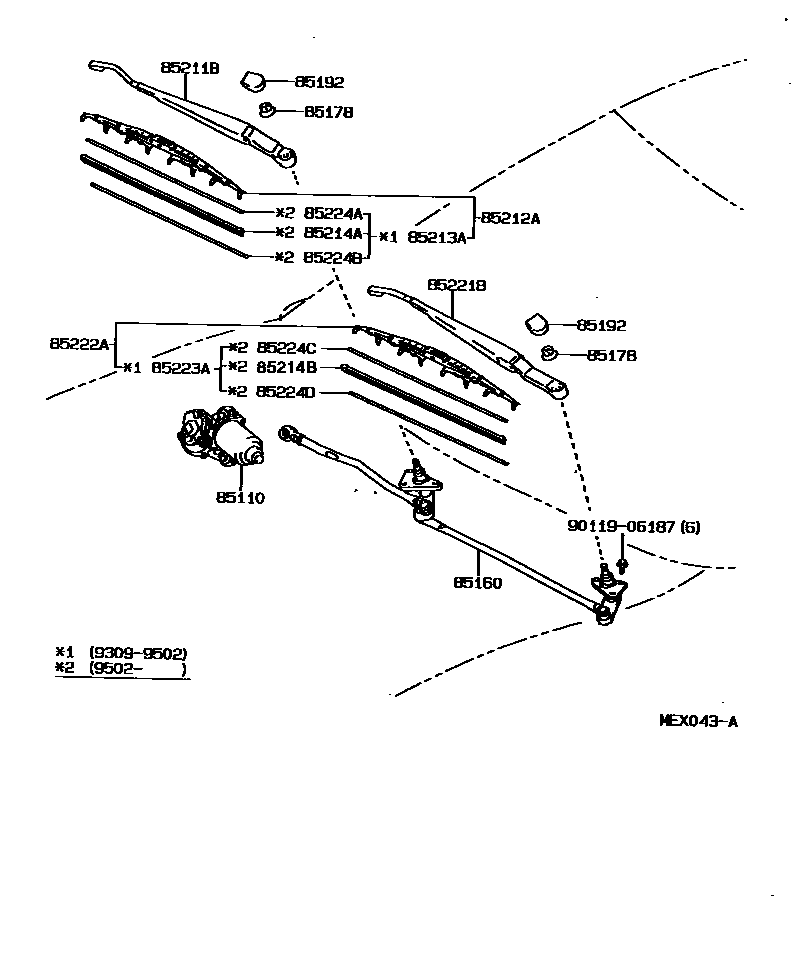

Toyota CELICA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20780iAT200,ST204199309-199508

main85110-20840iAT200,ST204..CP,LB199508-199510

sub85110-20860

85160LINK ASSY, WINDSHIELD WIPER

main85150-20850iAT200,ST204199309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAT200,ST204199309

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iAT200,ST204199309

85211BARM, FRONT WIPER, RH

main85211-20400iAT200,ST204199309-199701

main85211-20401iAT200,ST204199701

85212ABLADE, FR WIPER, RH

main85212-20380iAT200,ST204199309-199701

main85212-20381iAT200,ST204199701

85213ARUBBER, WIPER BLADE, RH

main85213-14300iAT200,ST204199309-199502

85214ARUBBER, WIPER, RH

main85214-30260iAT200,ST204199502

85214BRUBBER, WIPER, LH

main85214-33050iAT200,ST204199502

sub85214-40080

85221BARM, FRONT WIPER, LH

main85221-20370iAT200,ST204199309-199701

main85221-20371iAT200,ST204199701

85222ABLADE, FR WIPER, LH

main85222-1G090iAT200,ST204199701

main85222-20330iAT200,ST204199309-199701

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-33022iAT200,ST204199309-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60040iAT200,ST204199502

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60040iAT200,ST204199502

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33050iAT200,ST204199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33050iAT200,ST204199502

9011906187

main90119-06187

17 parts on this diagram · 1 diagram in section
