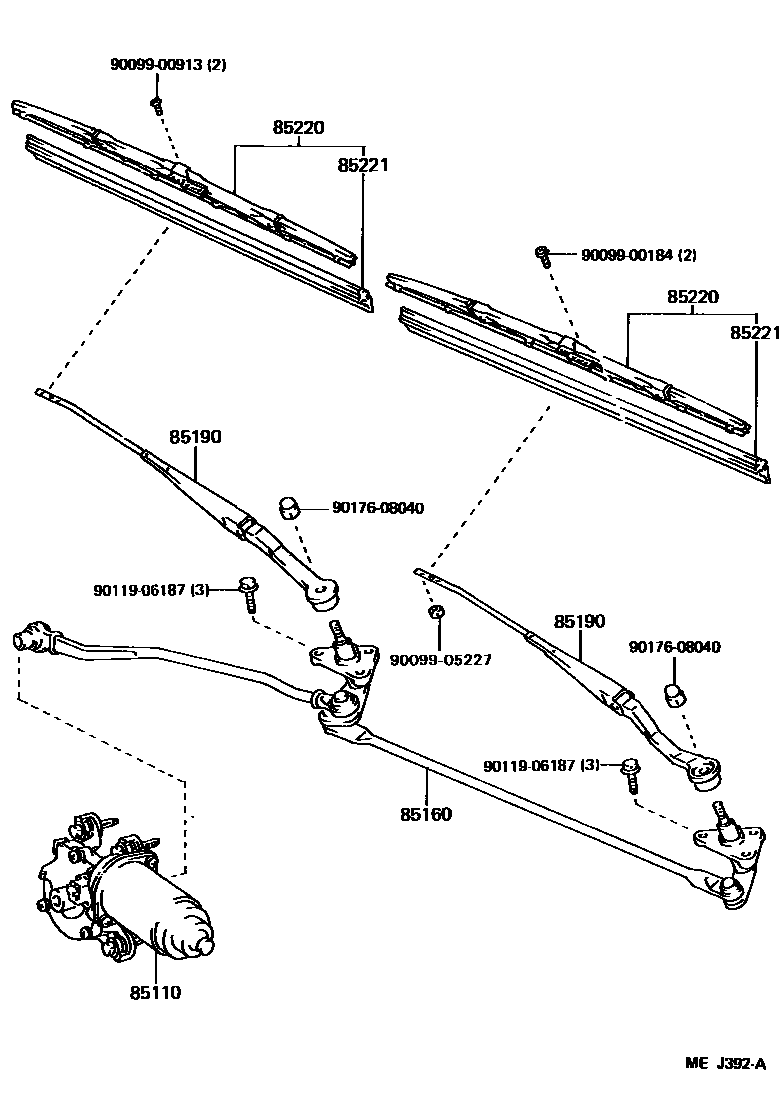

Toyota CELICA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20470iST16#198708-198908

sub85110-20261

85160LINK ASSY, WINDSHIELD WIPER

main85160-20340iST16#198708-198908

85190ARM ASSY, WINDSHIELD WIPER

main85190-20590iST16#198708-198908

LH

main85210-20200iST16#198708-198908

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16340iST16#198708-198808

RH

sub85220-16640

main85220-16880iST16#198808-198908

RH

sub85220-16640

main85220-32600iST16#198708-198808

LH

main85220-32860iST16#198808-198908

LH

sub85220-3A050

85221BLADE, WINDSHIELD WIPER

main85221-30100iST16#198708-198908

RH

sub85221-40040

main85221-32050iST16#198708-198908

LH

sub85214-24H90

9009900184

main90099-00184

9009900913

main90099-00913

9009905227

main90099-05227

9011906187

main90119-06187

9017608040

main90176-08040

10 parts on this diagram · 1 diagram in section
