Toyota CELICA — WINDSHIELD WIPER

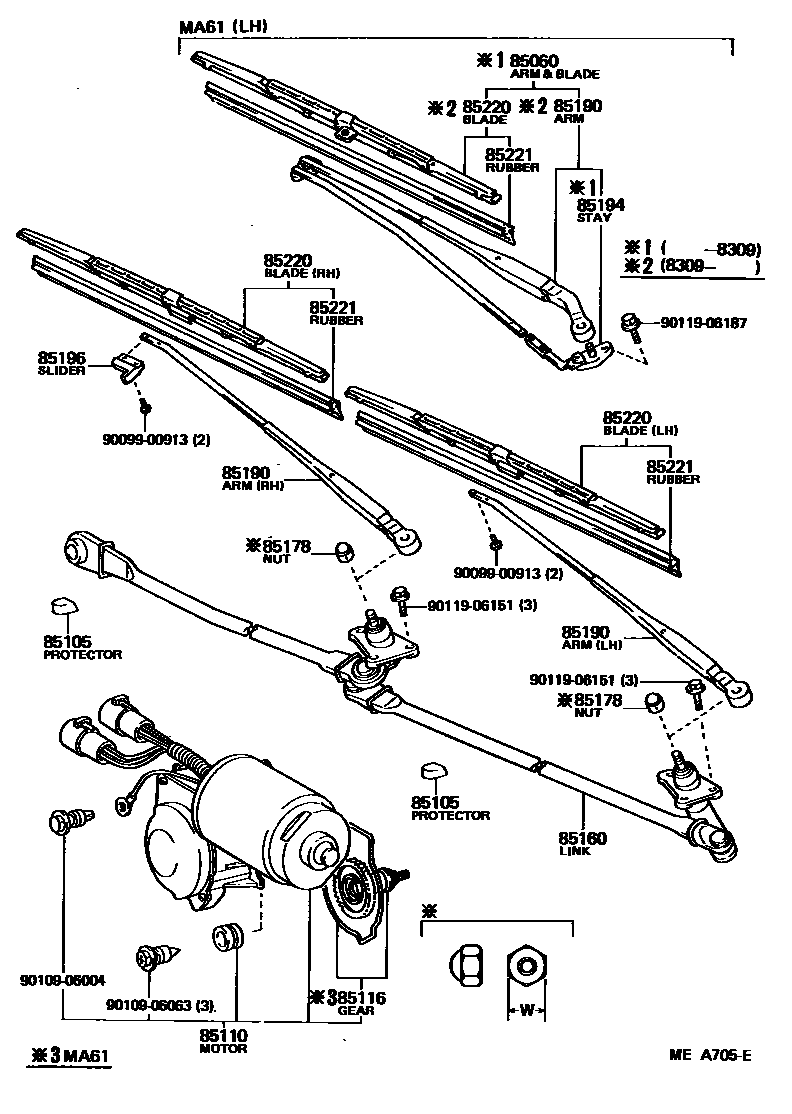

Parts diagram
85060ARM AND BLADE ASSY, WINDSHIELD WIPER
main85060-14410i198108-198309
LH
sub90099-00913
85105PROTECTOR, WIPER
main85105-14010i198309-198512
RH
main85105-14020i198309-198512
LH
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-14220i198308-198507
main85110-14240i198108-198308
85116GEAR, WINDSHIELD WIPER MOTOR
main85116-14240i198407-198512
85160LINK ASSY, WINDSHIELD WIPER
main85160-14260i198108-198308
main85160-14270i198308-198507
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08013×2i198108-198202
W=14
main90176-08029×2i198108-198506
W=12
main90176-08033×2i198506-198512
W=12
85190ARM ASSY, WINDSHIELD WIPER
main85190-14370i198108-198212
LH
main85190-14371i198212-198507
LH
main85190-14411i198309-198512
LH
main85210-14110i198108-198212
RH
main85210-14111i198212-198507
RH
main85210-14140i198108-198309
RH
main85210-14161i198309-198512
RH
85194STAY, WINDSHIELD WIPER ARM
main85194-14380i198108-198309
85196SLIDER, WIPER ARM
main85192-14161i198309-198512
main85196-14030i198108-198309
85220BLADE ASSY, WINDSHIELD WIPER
main85220-14320i198108-198212
LH
main85220-14350i198108-198309
RH
main85220-14370i198108-198212
RH
main85220-14390i198309-198512
RH
main85220-16140i198212-198308
LH
main85220-16150i198212-198308
RH
sub85220-16640
main85220-16270i198308-198507
LH
sub85220-16640
main85220-16290i198308-198507
RH
sub85220-16640
main85220-16360i198309-198512
LH
85221BLADE, WINDSHIELD WIPER
main85221-12120×2i198108-198308
sub85214-24H90
main85221-12220i198309-198512
RH
sub85214-12H90
main85221-14200i198108-198309
RH
main85221-30100×2i198308-198507
sub85221-40040
9009900913
main90099-00913
9010906004
main90109-06004
9010906063
main90109-06063
9011906151
main90119-06151
9011906187
main90119-06187

16 parts on this diagram · 1 diagram in section
