Toyota CELICA — WINDSHIELD WIPER

0001 1 0002 1 0003 1

8503

85031AVALVE SUB-ASSY, WASHER

main85031-14010×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

sub85031-30010

main85031-14070iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198001-198107

DRIVER SIDE

main85355-87201iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198001

ASSISTANT SIDE(STRAIGHT JOINT)

sub85349-89122

85160LINK ASSY, WINDSHIELD WIPER

main85160-14160iRA42..3FC..LT197708-197807

main85160-14161iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197807-198107

sub85160-14162

main85160-14200iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

sub85160-14201

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08015×2iRA42..3FC..LT197708-197809

main90179-08026×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197809-198107

85190ARM ASSY, WINDSHIELD WIPER

main85190-14200iRA42..3FC..LT197708-197802

DRIVER SIDE

main85190-14201iMA46,RA42..(3FC,5F)..(LT,SPR)197802-197908

DRIVER SIDE

main85190-14280iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DRIVER SIDE

main85190-14281iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DRIVER SIDE

main85190-14310iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DRIVER SIDE

main85210-14020iRA42..3FC..LT197708-197802

ASSISTANT SIDE

main85210-14021iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197802-198107

ASSISTANT SIDE

main85210-14050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

ASSISTANT SIDE

85192COVER, WINDSHIELD WIPER ARM

main85192-14030×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main85192-14050×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14160×2iRA42..3FC..LT197708-197802

main85220-14180iRA42..3FC..LT197802-197804

DRIVER SIDE

main85220-14190iRA42..3FC..LT197802-197804

ASSISTANT SIDE

main85220-14191iMA46,RA42..(3FC,5F)..(LT,SPR)197804-197908

ASSISTANT SIDE

main85220-14202iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DRIVER SIDE

sub85220-14290

main85220-14212iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

ASSISTANT SIDE

sub85220-14290

main85220-20130iMA46,RA42..(3FC,5F)..(LT,SPR)197804-197908

DRIVER SIDE

85221BLADE, WINDSHIELD WIPER

main85221-14140×2iRA42..3FC..LT197708-197710

sub85221-14170

main85221-14150×2iRA42..3FC..LT197802-197804

sub85221-22050

main85221-14160×2iRA42..3FC..LT197710-197802

sub85221-22050

main85221-20080×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197804-198107

sub85221-14H90

8518714160COVER, ROLLER GUIDE

main85187-14160

9009900913

main90099-00913

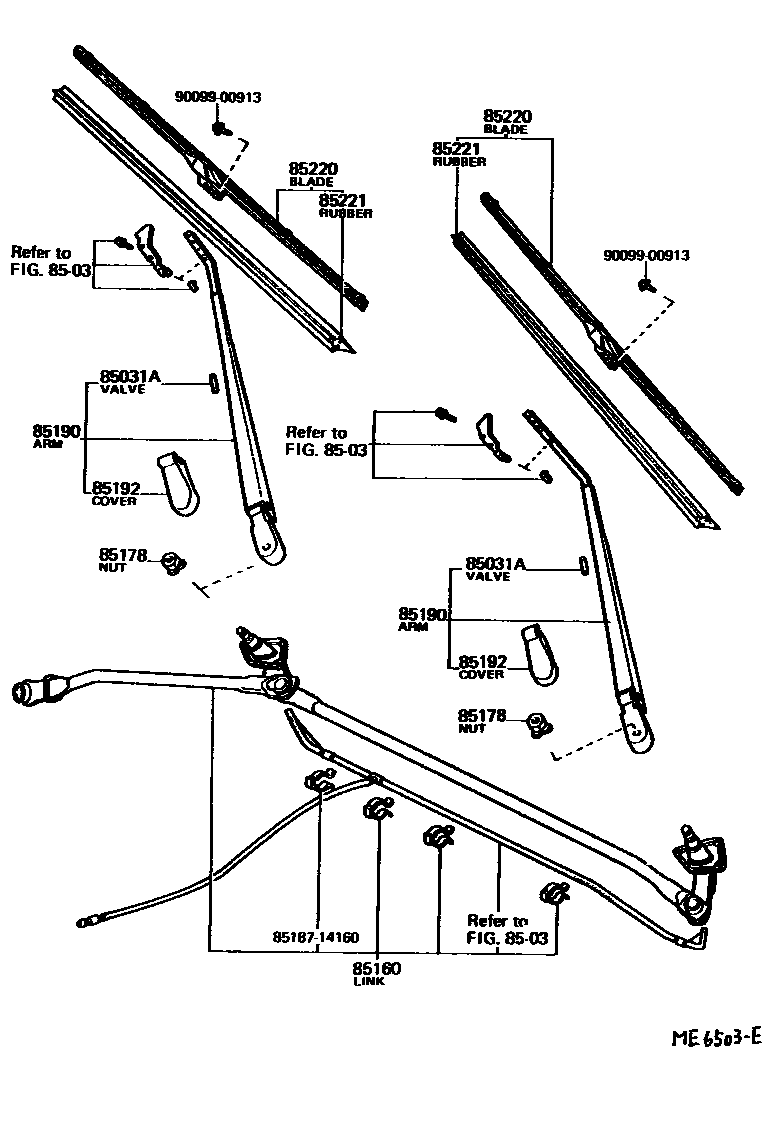

10 parts on this diagram · 3 diagrams in section
