Toyota CELICA — WINDSHIELD WASHER

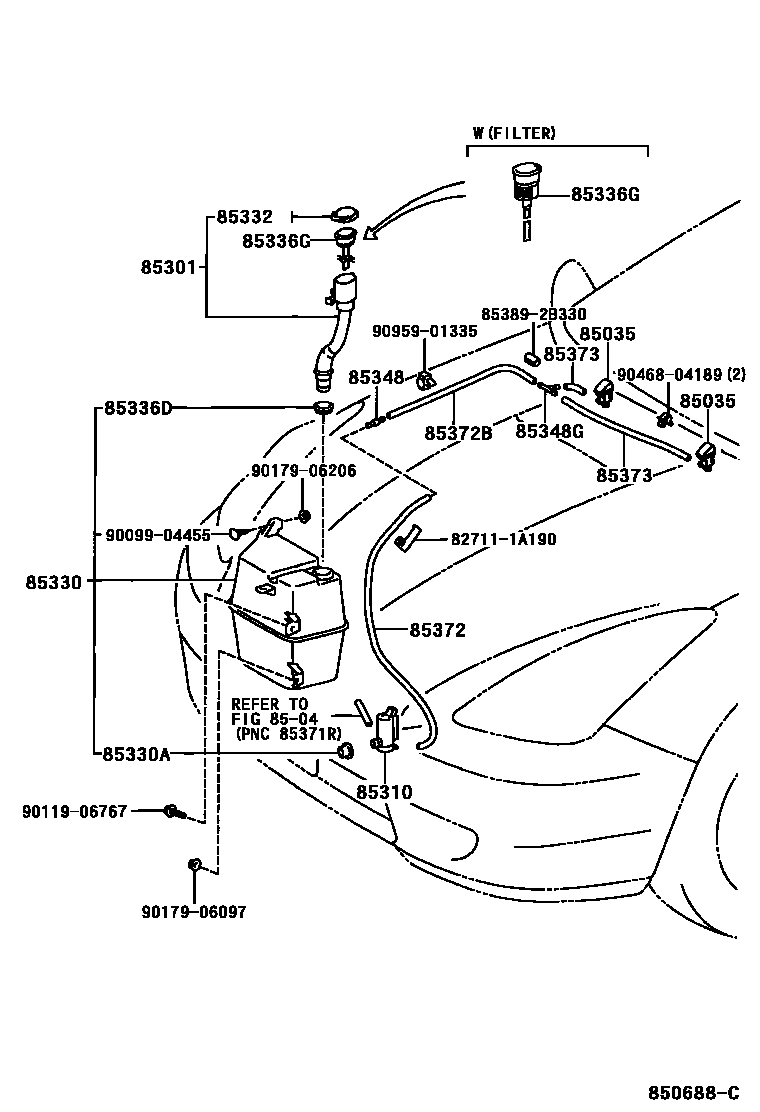

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-20190i199908-200507
2 JET
main85381-20200i199908-200507
3 JET
8504REAR WASHER
→ Go to FIG 85-04
85301INLET SUB-ASSY, WASHER
main85301-20030i199908-200208
main85301-20040i200208-200507
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-20460i199908-200507
W(REAR WIPER)
main85330-20470i199908-200507
CANADA SPEC OR COLD SPEC
main85330-20470i199908-200507
CANADA SPEC & W(REAR WIPER)
main85330-35080i199908-200507
85330JAR ASSY, WINDSHIELD WASHER
main85315-20590i199908-200507
2.5L TANK
main85315-20600i199908-200507
4.5L TANK
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i199908-200507
85332CAP, WINDSHIELD WASHER JAR
main85316-42011i199908-200507
85336DPACKING, WINDSHIELD WASHER JAR
main85336-30160i199908-200507
85336GGAGE, WATER LEVEL
main85312-24010i199908-200507
W(FILTER)
main85313-20130i199908-200507
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i199908-200507
CANADA SPEC OR COLD SPEC
main85349-89122i199908-200507
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85348-14390i199908-200507
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33075i199908-200204
L=1100(*H,L=630),CANADA SPEC OR COLD SPEC
main90099-33080i200206-200507
L=1450(*H,L=670)
main90099-33080i199908-200204
L=1450(*H,L=630)
main90099-33788i200204-200206
L=1450(*H,L=650)
main90099-62012i200204-200507
L=630
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i199908-200507
L=1450(*H,L=665)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i199908-200208
L=1450(*H,L=60)
main90099-33080i200208-200507
L=1450(*H,L=505)
827111A190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A190
853892B330PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-2B330
9009904455
main90099-04455
9011906767
main90119-06767
9017906097
main90179-06097
9017906206
main90179-06206
9046804189
main90468-04189
9095901335
main90959-01335

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CELICA

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CELICA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
