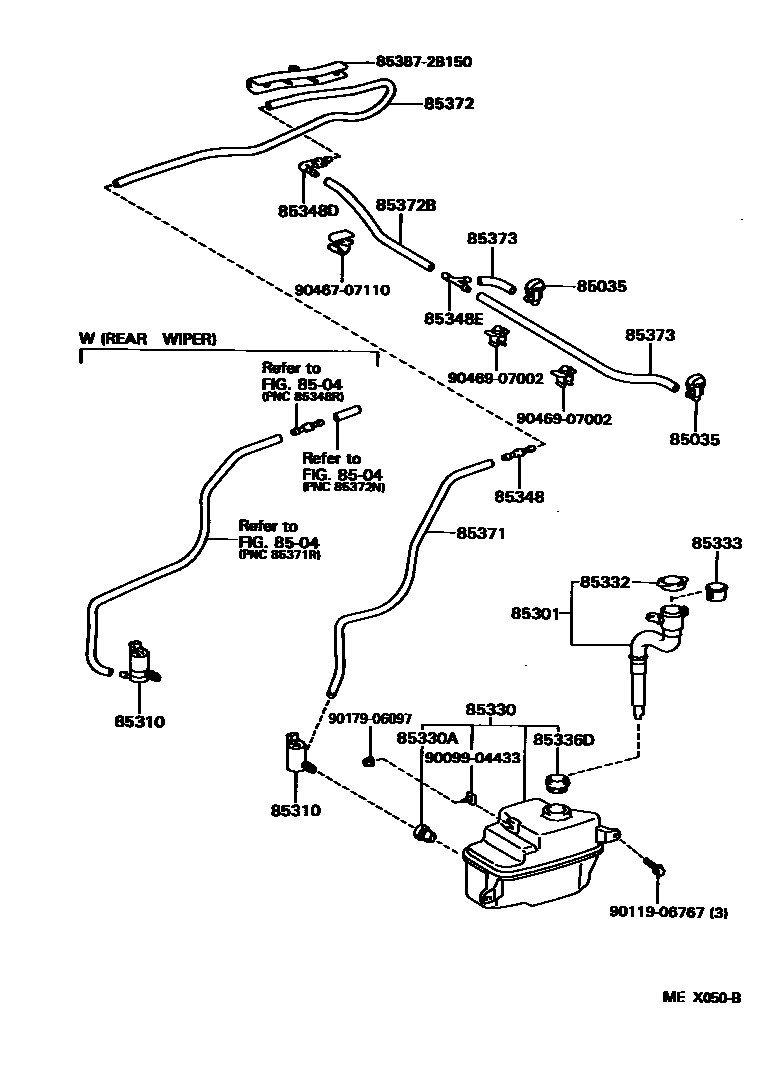

Toyota CELICA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iAT200,ST204..USA199408

main85381-20070×2iAT200,ST204..USA199309-199408

main85381-20120×2iAT200,ST204..CND199309

8504

85301INLET SUB-ASSY, WASHER

main85301-20020iAT200,ST204199309-199606

main85301-20021iAT200,ST204199606

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160iAT200,ST204..LB199309-199606

JAR 2.5L,W(REAR REAR WINDOW WIPER)

main85310-20190iAT200..USA;ST204..CP,CVT199309-199606

main85310-20210iST204..CP..GT..USA;AT200,ST204..ST..USA199309

JAR 4.5L

sub85330-10280

main85330-20450iAT200,ST204..LB199606

JAR 2.5L

main85330-33020iAT200;ST204..CP,CVT;ST204..LB..ST199606

85330JAR ASSY, WINDSHIELD WASHER

main85315-20520iAT200,ST204199309

W(REAR WIPER)

main85315-20560iST204..CP..GT..USA;AT200,ST204..ST..USA199309

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT200,ST204199309

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iAT200,ST204199309-199606

main85316-33050iAT200,ST204199606

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iAT200,ST204199309

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iAT200,ST204199309

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iAT200,ST204199309

W(REAR WIPER)

main85349-89122iST204..CP..GT..USA;AT200,ST204..ST..USA199309

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iAT200,ST204199309

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85348-14390iAT200,ST204199309

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iAT200,ST204199309

L=1100(*H,L=710)

main90446-07001iST204..CP..GT..USA;AT200,ST204..ST..USA199309

L=1800(*H,L=720)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAT200,ST204199309

L=1450(*H,L=890)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAT200,ST204199309

L=1450(*H,L=370)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT200,ST204199309-199508

L=1450(*H,L=40)

853872B150CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-2B150

9009904433

main90099-04433

9011906767

main90119-06767

9017906097

main90179-06097

9046707110

main90467-07110

9046907002

main90469-07002

22 parts on this diagram · 1 diagram in section
