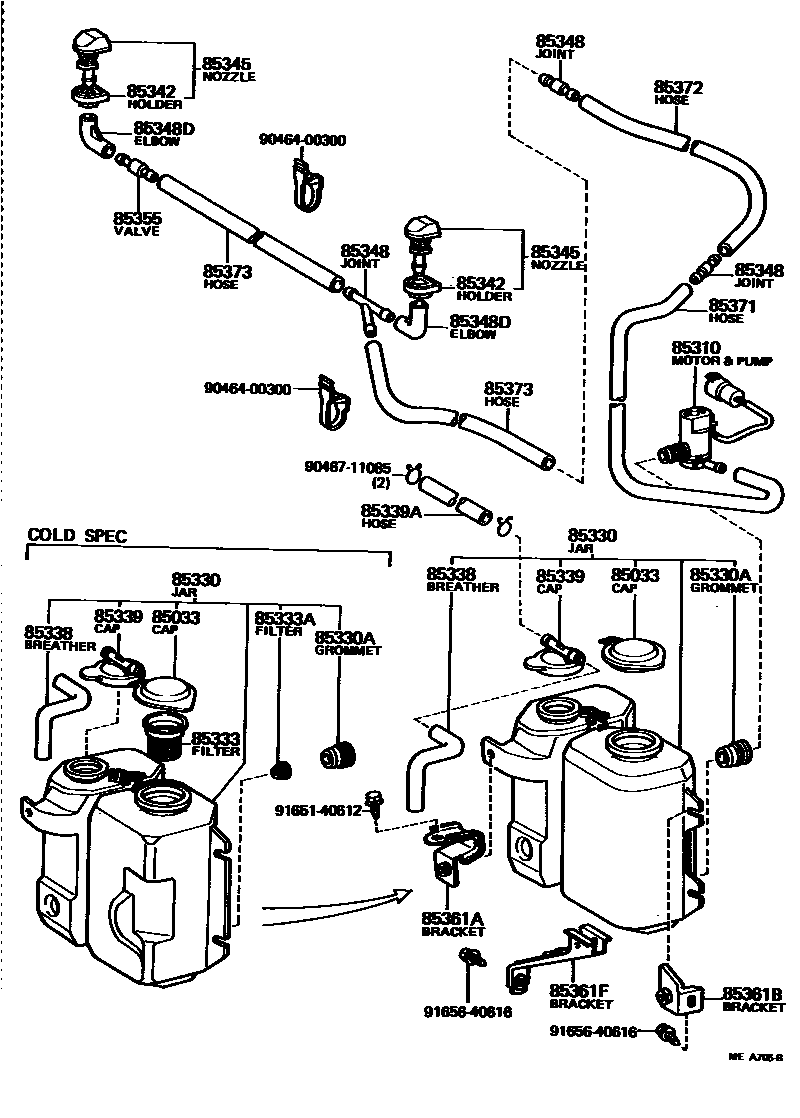

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1 0003 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-12320iMA61198408-198512

W/HEADLAMP CLEANER

main85332-16010iRA64..CBR..USA198108-198308

main85332-20060iRA6#..EFI198208-198308

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10140iRA64..CBR198208-198308

sub85310-89105

main85310-14050iMA61198208-198308

W/HEADLAMP CLEANER

main85310-14060iMA61198308-198408

W/HEADLAMP CLEANER

main85310-14070iMA61198408-198512

W/HEADLAMP CLEANER

sub85330-12310

main85310-1B010iRA64..USA198108-198208

sub85310-89105

main85310-20130iMA61198108-198308

COLD SPEC

sub85310-12130

85330JAR ASSY, WINDSHIELD WASHER

main85330-14360iMA61198108-198512

main85330-20221iRA64..CBR..USA198108-198308

1.5LITERS

main85330-20241iRA64..CBR198108-198308

2.5LITERS(COLD SPEC)

main85331-14060iRA6#..EFI198208-198507

main85331-14450iMA61198208-198512

W/HEADLAMP CLEANER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iRA64..CBR..USA198108-198308

main90099-32103iMA61198408-198512

W/HEADLAMP CLEANER

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iRA6#..EFI198208-198507

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iRA64..CBR198108-198308

COLD SPEC

85338HOSE, BREATHER

main85338-14050iRA64..CBR..USA198108-198308

85339CAP SUB-ASSY, RESERVE TANK

main85339-14010iRA64..CBR..USA198108-198308

85339AHOSE (FOR RADIATOR RESERVE TANK)

main90445-12043iRA64..CBR..USA198108-198308

sub90445-12078

85342HOLDER, WASHER NOZZLE

main85342-14010×2iMA61,RA6#198108-198512

85345NOZZLE, WINDSHIELD WASHER

main85035-14300×2iMA61,RA6#198408-198512

main85035-19015×2iMA61,RA6#198108-198408

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-40010iRA64..CBR198108-198308

3-WAY,COLD SPEC

main85349-20010×2iRA64..CBR198108-198308

COLD SPEC

sub85334-22480

main85355-14010iRA6#..EFI198208-198308

3-WAY

sub85348-12250

main85355-87201×2iRA64..CBR..USA198108-198308

sub85349-89122

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iMA61,RA6#198408-198512

main85355-20070×2iMA61,RA6#198108-198408

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iMA61,RA6#198308-198512

main85031-14080iMA61,RA6#198108-198308

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85036-14160iMA61198108-198512

main85036-14180iMA61198208-198512

W/HEADLAMP CLEANER

main85361-14340iRA64..CBR198108-198308

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-14350iRA64..CBR198108-198308

main85361-14390iMA61..USA198408-198512

main85361-14440iMA61198108-198408

main85361-14540iMA61198208-198408

W/HEADLAMP CLEANER

main85361-14570iMA61..USA198408-198512

W/HEADLAMP CLEANER

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85361-14400iRA64..CBR198108-198308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33072iRA6#198408-198507

L=800

sub90099-33075

main90099-33074iMA61198408-198512

L=1450(*H,L=850)

sub90099-33080

main90099-33299iMA61198208-198408

L=1000,W/HEADLAMP CLEANER

main90099-33332iRA6#198308-198408

*H,L=800

sub90099-33334

main90446-06013iRA64..CBR..USA198108-198308

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iRA64..CBR..USA198108-198308

L=1800

main90446-08006iRA64..CBR198108-198308

L=1600,COLD SPEC

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33061iMA61,RA6#198408-198512

L=1450(*H,L=550)

sub90099-33080

main90099-33299iRA64..CBR..USA198108-198308

L=1450(*H,L=550),COLD SPEC

main90099-33332iRA64..CBR198108-198308

COLD SPEC,*H,L=450

sub90099-33334

9046400300

main90464-00300

9046711085

main90467-11085

9165140612

main91651-40612

9165640616

main91656-40616

24 parts on this diagram · 3 diagrams in section
