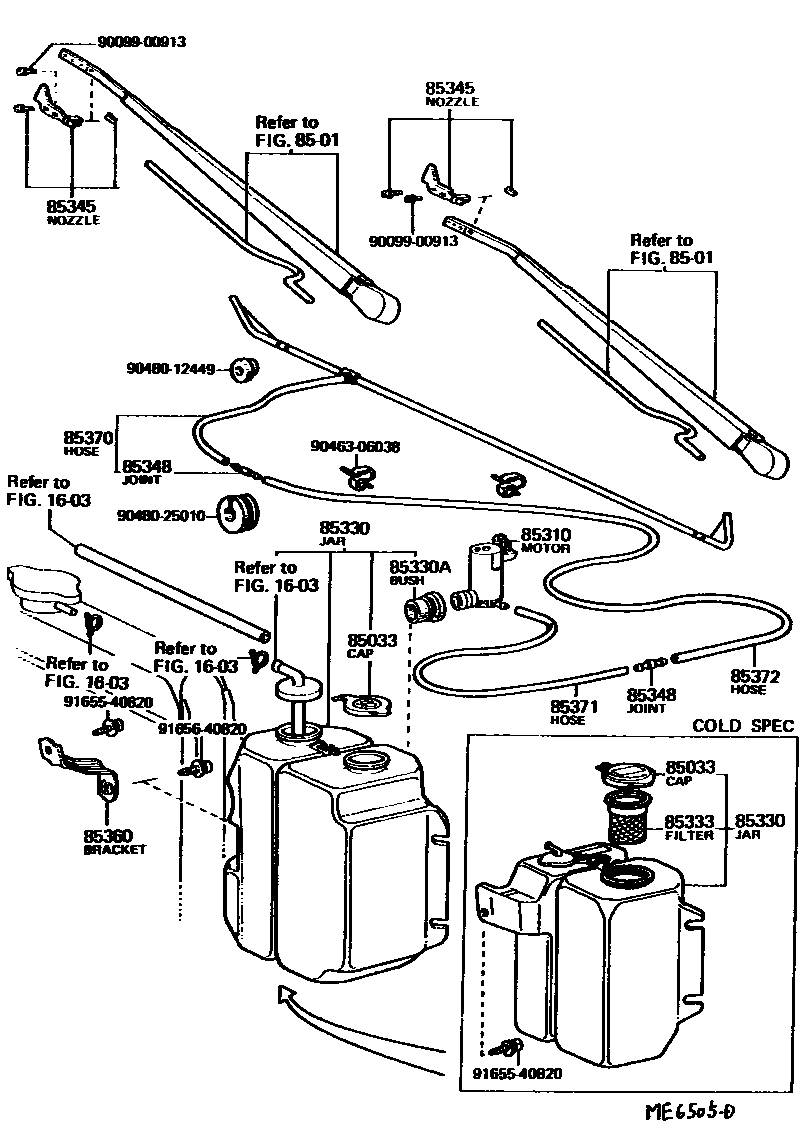

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1

1603

8501

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iRA4#197908-198107

main85332-20020iRA42197708-197908

main85332-20040iRA42197708-197808

COLD SPEC

main85332-20060iRA4#197808-198107

COLD SPEC

sub85332-12320

main85332-30050iMA46197901-197904

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12060iRA42197708-197808

COLD SPEC

sub85310-22080

main85310-12120iMA4#,RA4#197908-198107

sub85310-89105

main85310-14010iMA46197901-197908

sub85330-20440

main85310-14020iMA46197901-197908

COLD SPEC

sub85330-20440

main85310-20100iRA42197708-197908

sub85310-22080

main85310-20110iRA42197808-197908

COLD SPEC

sub85310-22080

main85310-20130iMA4#,RA4#197908-198107

COLD SPEC

sub85310-12130

85330JAR ASSY, WINDSHIELD WASHER

main85330-12051iMA46197901-197904

main85330-12130iMA4#197904-198107

main85330-14012iRA42197708-197810

main85330-14013iRA42197810-197908

main85330-14160iRA42197708-197808

COLD SPEC

main85330-14161iRA42197808-197810

COLD SPEC

main85330-14162iRA42197810-197908

COLD SPEC

main85330-14210iMA46197901-197908

COLD SPEC

main85330-20220iRA42197908-198004

main85330-20221iRA4#198004-198107

main85330-20240iRA42197908-198004

COLD SPEC

main85330-20241iRA4#198004-198107

COLD SPEC

main85330-22080iMA4#197908-198107

COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMA4#,RA4#197708-198107

main90099-32103iMA4#,RA4#197908-198107

COLD SPEC

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iRA42197708-197908

COLD SPEC

main85333-20020iMA4#,RA4#197908-198107

COLD SPEC

85345NOZZLE, WINDSHIELD WASHER

main85035-14110×2iRA42197708-197908

main85035-14130iMA46197901-197908

DRIVER SIDE

main85035-14131iMA4#197908-198107

DRIVER SIDE

main85035-14200iMA4#197908-198107

ASSISTANT SIDE

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-14010iRA4#197808-198107

85372--85370,COLD SPEC

sub85334-22470

main85349-20010iRA4#197808-198107

85371--85372,COLD SPEC

sub85334-22480

main85355-87201×2iMA4#,RA4#197708-198107

sub85349-89122

85360BRACKET ASSY, WINDSHIELD WASHER

main85036-14080iMA4#197901-198107

COLD SPEC

main85036-14090iMA4#197901-198107

main85361-14071iRA42197708-197908

main85361-14250iRA4#197908-198107

85370HOSE ASSY, WINDSHIELD WASHER

main85370-14080iRA4#197708-198107

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33347iRA4#197808-198107

L=550,COLD SPEC

main90446-06013iMA4#197901-198107

L=1800(*H,L=1000)

main90446-06236iRA4#197708-198107

L=550

main90446-08002iMA4#197901-198107

L=1800(*H,L=950),COLD SPEC

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90445-12730iRA4#197908-198107

L=600(*H,L=410)

sub90445-12078

main90446-06253iRA42197708-197802

L=2000(*H,L=1400)

sub90446-06006

main90446-07006iRA4#197802-198107

L=1800(*H,L=1400)

main90446-08003iRA4#197808-198107

L=1600(*H,L=1400),COLD SPEC

9009900913

main90099-00913

9046306038

main90463-06038

9048012449

main90480-12449

9048025010

main90480-25010

9165540820

main91655-40820

9165640820

main91656-40820

19 parts on this diagram · 2 diagrams in section
