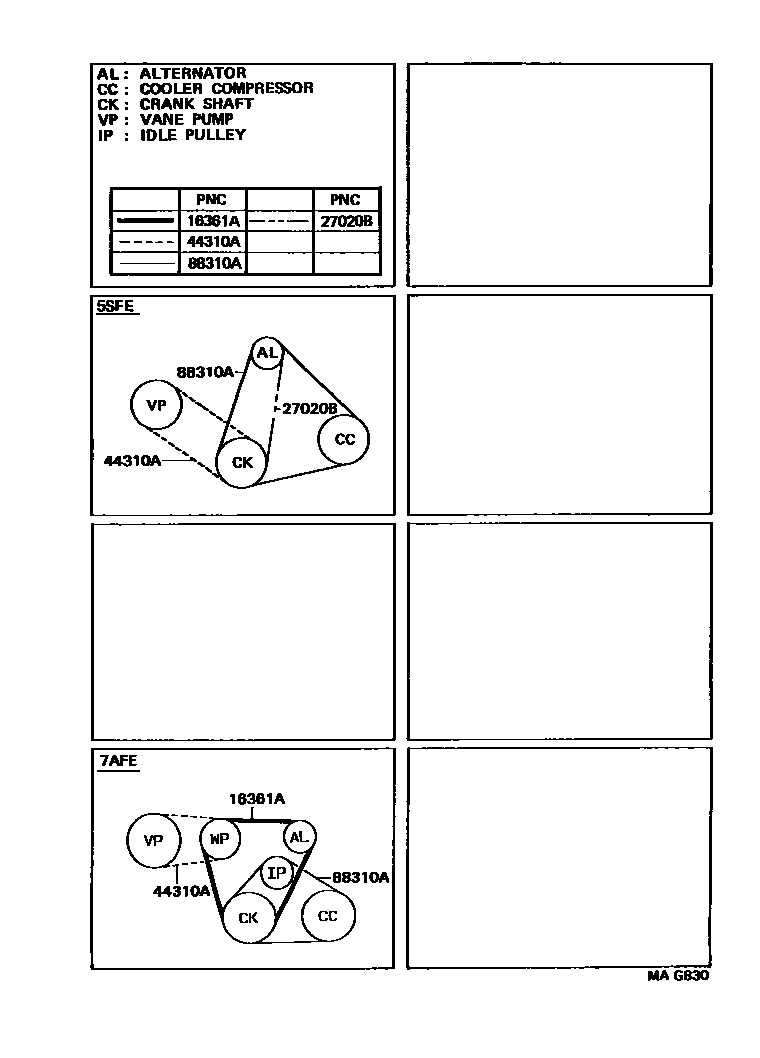

Toyota CELICA — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i199309-199712

(L)

main99365-20970i199309-199712

(J)

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i199402-199712

main90916-02356i199309-199402

BANDO

44310ABELT, V(FOR VANE PUMP)

main90916-02205i199309-199406

main99363-10630i199309-199406

main99363-80630i199406-199604

main99363-80760i199406-199604

main99363-90630i199604-199712

main99363-90760i199604

L=760

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91099i199712

L=1110,GOOD YEAR

main90916-02354i199508-199712

main99364-20860i199309-199508

MITSUBOSHI

main99364-80860i199309-199508

BANDO

main99365-81110i199309

L=1110,BANDO

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota CELICA

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota CELICA. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
