Toyota CELICA — TIMING CHAIN

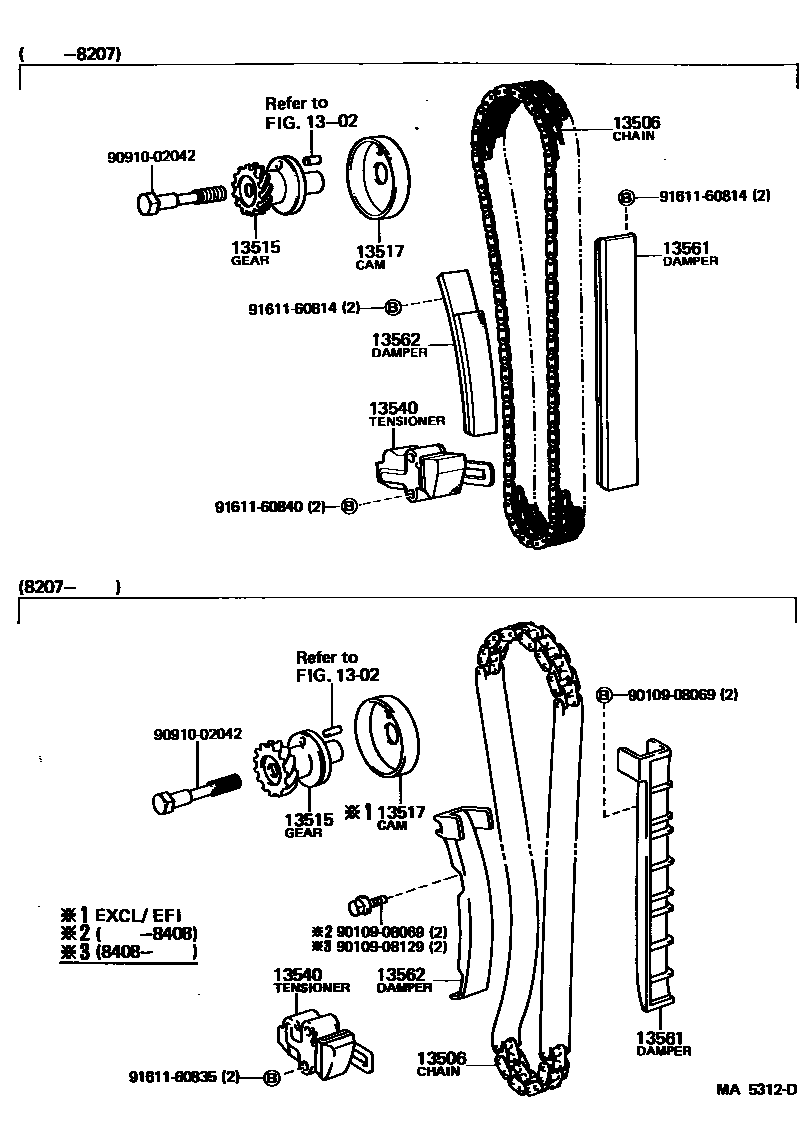

Parts diagram

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13506CHAIN SUB-ASSY

main13506-35010i198207-198408

main13506-35030i198408-198507

main13506-38010i198108-198207

13515GEAR, DISTRIBUTOR DRIVE

main13515-37010i198108-198507

N=13

13517CAM, FUEL PUMP DRIVE

main13517-37010i198108-198308

13540TENSIONER ASSY, CHAIN, NO.1

main13540-35010i198207-198409

main13540-35011i198409-198507

main13540-38012i198108-198207

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-35010i198207-198408

main13561-35020i198408-198507

main13561-38010i198108-198207

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-35010i198207-198408

main13562-35020i198408-198507

main13562-38010i198108-198207

9010908069

main90109-08069

9010908129

main90109-08129

9091002042

main90910-02042

9161160814

main91611-60814

9161160835

main91611-60835

9161160840

main91611-60840

13 parts on this diagram · 1 diagram in section

TIMING CHAIN for Toyota CELICA

This section contains 13 genuine Toyota parts for the TIMING CHAIN system of the Toyota CELICA. Key components include: CAMSHAFT & VALVE, CHAIN SUB-ASSY, GEAR, DISTRIBUTOR DRIVE, CAM, FUEL PUMP DRIVE, TENSIONER ASSY, CHAIN, NO.1.
