Toyota CELICA — TIMING CHAIN

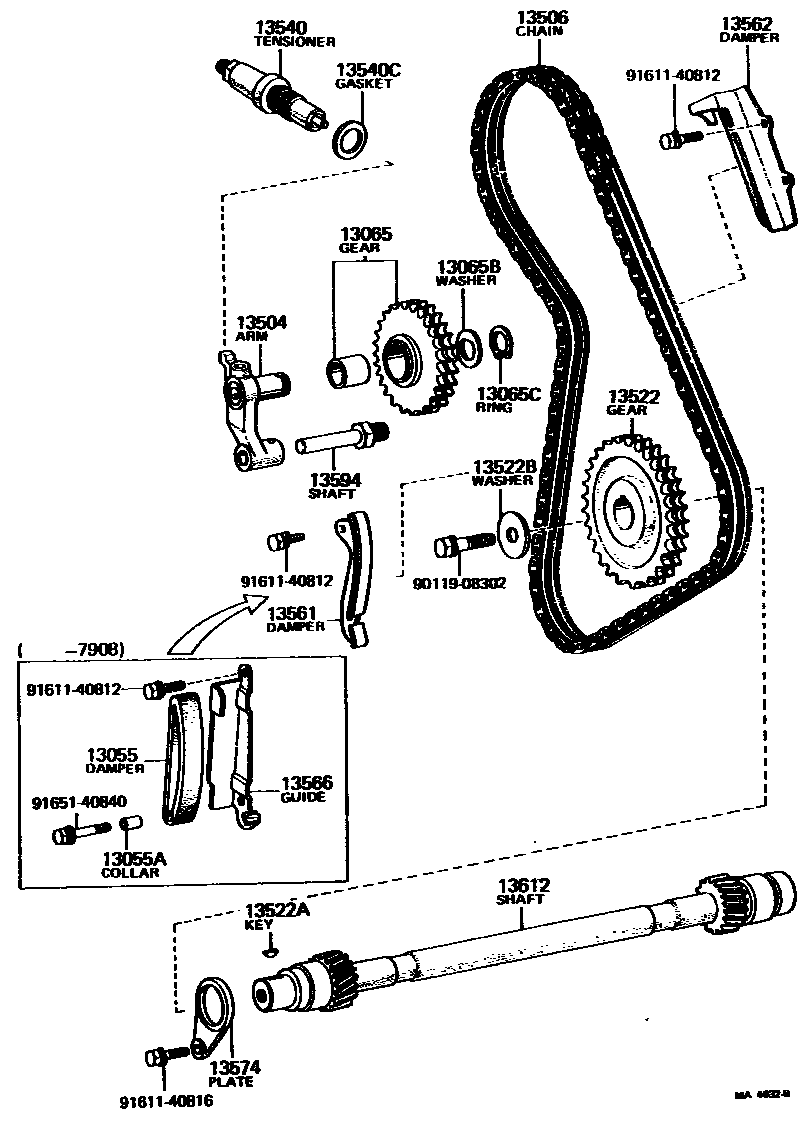

Parts diagram
13055DAMPER SUB-ASSY, CHAIN
main13055-41010i197901-197908
13055ACOLLAR(FOR CHAIN DAMPER)
main90387-08031i197901-197908
13065GEAR SUB-ASSY, TENSION
main13065-45010i197901-198107
13065BWASHER, TIMING CHAIN TENSION GEAR CLAW
main90214-20017i197901-198107
13065CRING, SHAFT SNAP(FOR TENSION GEAR)
main96150-02000i197901-198107
13504ARM SUB-ASSY, TENSION
main13504-45020i197901-198107
13506CHAIN SUB-ASSY
main13506-38010i197708-198107
main13506-41010i197901-198107
13522GEAR, PUMP DRIVE SHAFT
main13522-41011i197901-198107
N=30
13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
main90280-05008i197901-198107
13522BWASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR)
main90201-08020i197908-198107
main90201-08120i197901-197908
13540TENSIONER ASSY, CHAIN, NO.1
main13540-38011i197708-197806
main13540-38012i197806-198107
main13540-45010i197901-198107
13540CGASKET(FOR CHAIN TENSIONER)
main90430-22135i197901-198107
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-38010i197708-198107
main13561-45010i197908-198107
13562DAMPER, CHAIN VIBRATION, NO.2
main13562-38010i197708-198107
main13562-45010i197901-198107
13566GUIDE, CHAIN DAMPER
main13566-45010i197901-197908
13574PLATE, PUMP DRIVE SHAFT
main13574-41010i197901-198107
13594SHAFT, TENSION GEAR ARM
main13594-45010i197901-198107
13612SHAFT, PUMP DRIVE
main13612-41010i197901-198107
9011908302
main90119-08302
9161140812
main91611-40812
9161140816
main91611-40816
9165140840
main91651-40840

22 parts on this diagram · 2 diagrams in section

TIMING CHAIN for Toyota CELICA

This section contains 28 genuine Toyota parts for the TIMING CHAIN system of the Toyota CELICA. Key components include: CAMSHAFT & VALVE, DAMPER SUB-ASSY, CHAIN, COLLAR(FOR CHAIN DAMPER), GEAR SUB-ASSY, TENSION, WASHER, TIMING CHAIN TENSION GEAR CLAW.
