Toyota CELICA — TIMING BELT
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13522PPULLEY, PUMP DRIVE SHAFT
13522QWASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY)
13522RCOLLAR(FOR PUMP DRIVE SHAFT PULLEY)
13574PPLATE, PUMP DRIVE SHAFT THRUST
13612PSHAFT, PUMP DRIVE
9011908302
main90119-08302
9020112222
main90201-12222
9116141255
main91161-41255
9161140816
main91611-40816

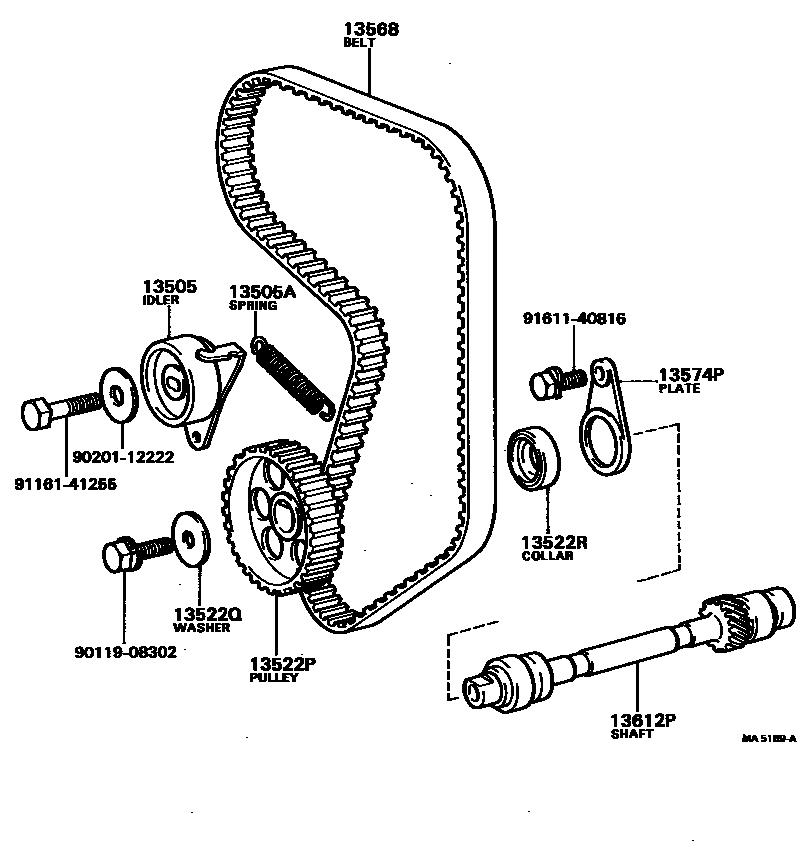

12 parts on this diagram · 1 diagram in section
TIMING BELT for Toyota CELICA
This section contains 12 genuine Toyota parts for the TIMING BELT system of the Toyota CELICA. Key components include: IDLER SUB-ASSY, TIMING BELT, NO.1, SPRING, TENSION(FOR IDLER), PULLEY, PUMP DRIVE SHAFT, WASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY), COLLAR(FOR PUMP DRIVE SHAFT PULLEY).
