Toyota CELICA — SWITCH & RELAY & COMPUTER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i199908-200507

DENSO

main83530-60020i199908-200507

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-14040i199908-200507

84540SWITCH ASSY, NEUTRAL START

main84540-32110i199908-200507

main84540-52050i199908-200507

89615SENSOR, KNOCK CONTROL

main89615-12090i199908-200108

main89615-12120i199908-200507

main89615-20090i200108-200507

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9161160822

main91611-60822

9165140620

main91651-40620

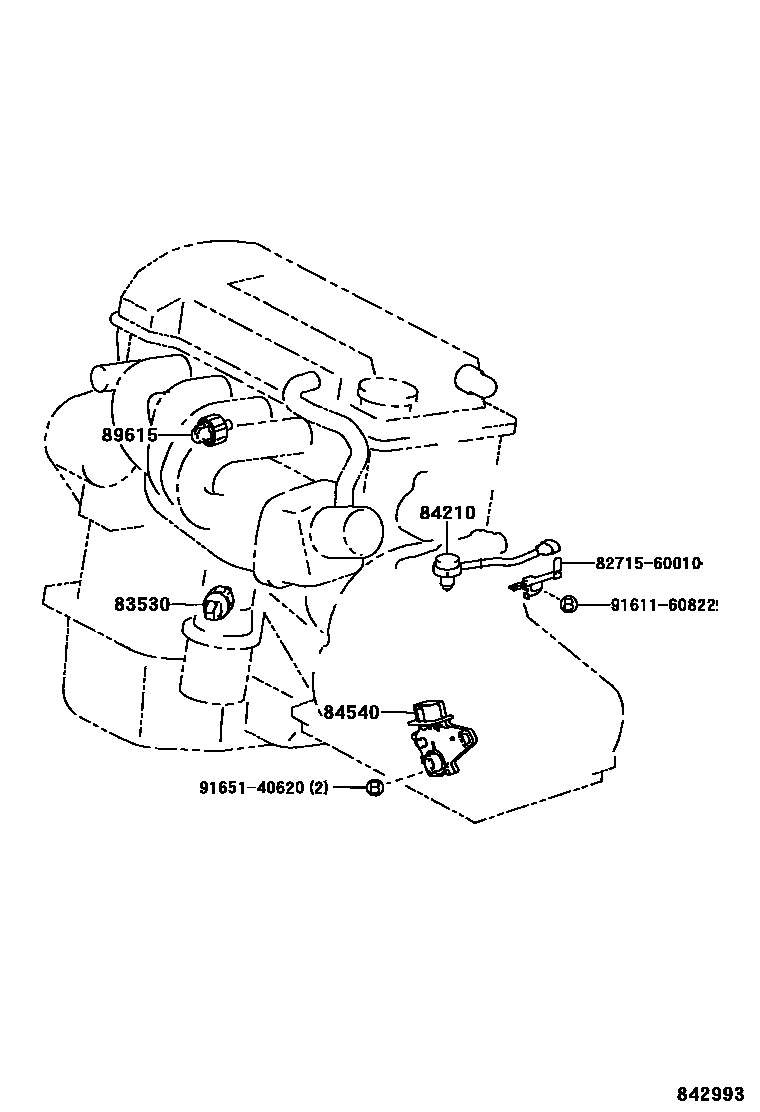

7 parts on this diagram · 7 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota CELICA

This section contains 89 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CELICA. Key components include: RELAY, AIR PUMP, RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, FLASHER ASSY, TURN SIGNAL.
