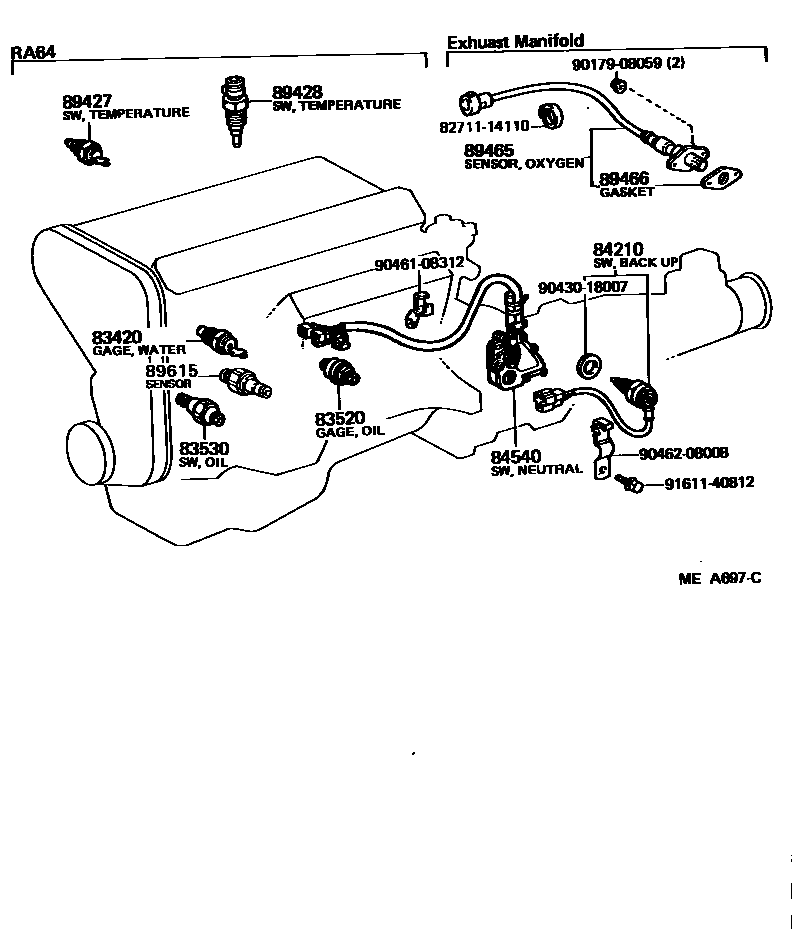

Toyota CELICA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iMA61,RA6#198108-198512

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iMA61,RA6#..GT,GTS,SPR198108-198406

main83520-14022iMA61,RA6#..GT,GTS,SPR198406-198512

sub83520-14023

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iMA61,RA64..SPR,ST198108-198207

main83530-14020iMA61198207-198512

sub83530-30080

main83530-14030iRA6#..CP,LB198502-198507

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iMA61,RA6#..5F198108-198512

84540SWITCH ASSY, NEUTRAL START

main84540-14100iRA6#..4FC198108-198507

main84540-14110iMA61..4FC198108-198208

main84540-22170iMA61..4FC198208-198512

sub84540-22171

89427SWITCH, TEMPERATURE DETECT

main89427-14040iRA64..CBR198108-198308

MARK=13/105

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRA64..CBR..USA198108-198308

MARK=50B

89465SENSOR, OXYGEN

main89465-19055iRA6#..EFI198208-198507

sub89465-19265

main89465-29045iRA64..CBR..USA198108-198507

main89465-29075iMA61198108-198512

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iMA61,RA6#198208-198512

sub89466-20020

89615SENSOR, KNOCK CONTROL

main89615-22010iMA61198408-198512

main89615-35020iRA6#198408-198507

TOKAIRIKA

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161140812

main91611-40812

16 parts on this diagram · 6 diagrams in section
