Toyota CELICA — STEERING WHEEL

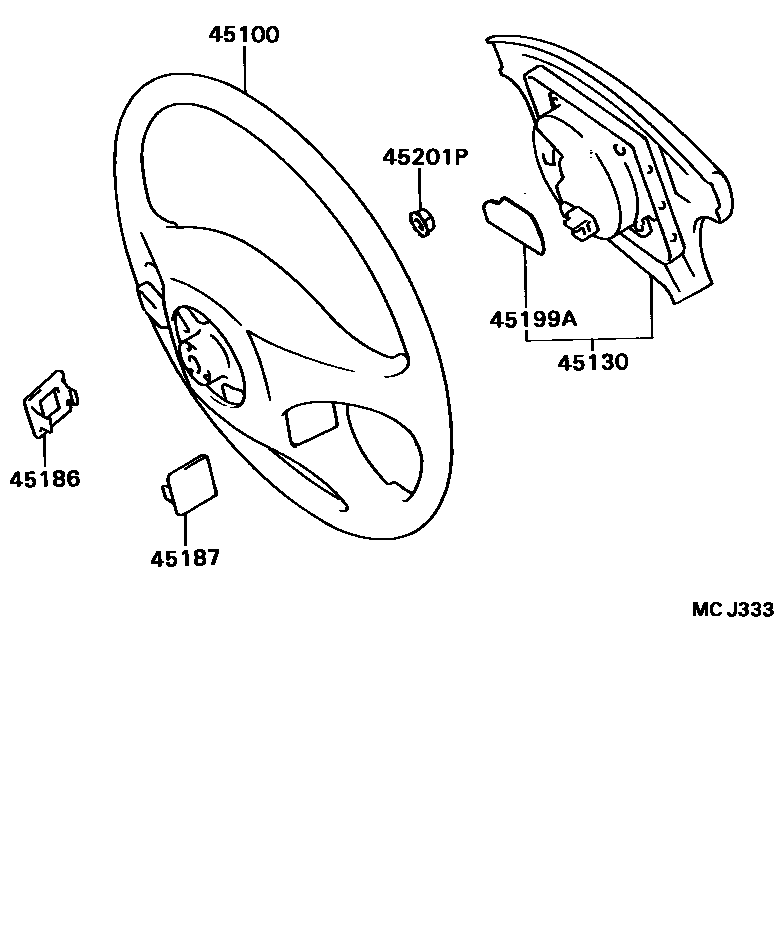

Parts diagram
45100WHEEL ASSY, STEERING
main45100-20660-02i198909-199008
RED,TRIM3#
main45100-20660-03i198909-199108
SHADOW GRAY,TRIM1#
main45100-20660-04i198909-199108
DARK BLUE,TRIM8#
main45100-20660-16i199008-199108
CHOCOLATE BROWN,TRIM4#
main45100-20661-P0i199308-199309
SHADOW GRAY,TRIM1#
main45100-20661-R8i199308-199309
DARK BLUE,TRIM8#
main45100-20670-L6i199008-199108
W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#
main45100-20670-P0i199109-199208
W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45100-20670-R8i199108-199208
W(CRUISE CONTROL),DARK BLUE,TRIM8#
main45100-20671-P0i199308-199309
W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45100-20671-R8i199308-199309
W(CRUISE CONTROL),DARK BLUE,TRIM8#
main45100-20680-02i198909-199008
LEATHER,RED,TRIM3#; RED,TRIM3#
main45100-20680-03i198909-199108
LEATHER,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main45100-20680-04i198909-199108
DARK BLUE,TRIM8#; LEATHER,DARK BLUE,TRIM8#
main45100-20680-16i199008-199108
CHOCOLATE BROWN,TRIM4#; LEATHER,CHOCOLATE BROWN,TRIM4#
main45100-20681-P0i199308-199309
LEATHER,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main45100-20681-R8i199308-199309
DARK BLUE,TRIM8#; LEATHER,DARK BLUE,TRIM8#
main45100-20690-02i198910-199008
RED,TRIM3#
main45100-20690-03i199208-199308
LEATHER,W(CRUISE CONTROL),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#; W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45100-20690-04i198909-199108
LEATHER,W(VACUUM TYPE CRUISE CONTROL),DARK BLUE,TRIM8#; W(CRUISE CONTROL),DARK BLUE,TRIM8#
main45100-20690-06i199008-199108
CHOCOLATE BROWN,TRIM4#; LEATHER,W(VACUUM TYPE CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#; W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#
main45100-20691-P0i199308-199309
LEATHER,W(CRUISE CONTROL),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#; W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45100-20691-R8i199308-199309
LEATHER,W(CRUISE CONTROL),DARK BLUE,TRIM8#; W(CRUISE CONTROL),DARK BLUE,TRIM8#
main45100-20700-02i198909-199008
RED,TRIM3#
main45100-20700-03i198909-199108
SHADOW GRAY,TRIM1#
main45100-20700-04i198909-199108
DARK BLUE,TRIM8#
main45100-20700-16i199008-199108
CHOCOLATE BROWN,TRIM4#
main45100-20720-02i198909-199008
LEATHER,RED,TRIM3#; RED,TRIM3#
main45100-20720-03i198909-199108
LEATHER,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main45100-20720-04i198909-199108
DARK BLUE,TRIM8#; LEATHER,DARK BLUE,TRIM8#
main45100-20720-26i199008-199108
CHOCOLATE BROWN,TRIM4#; LEATHER,CHOCOLATE BROWN,TRIM4#
main45100-20820-P0i199108-199208
SHADOW GRAY,TRIM1#
main45100-20820-R8i199108-199208
DARK BLUE,TRIM8#
main45100-2B050-P0i199108-199208
LEATHER,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main45100-2B050-R8i199108-199208
DARK BLUE,TRIM8#; LEATHER,DARK BLUE,TRIM8#
45130BUTTON ASSY, HORN
main45130-20831-02i198909-199008
RED,TRIM3#
main45130-20831-03i199208-199308
SHADOW GRAY,TRIM1#
main45130-20831-04i198909-199208
DARK BLUE,TRIM8#
main45130-20831-06i199008-199108
CHOCOLATE BROWN,TRIM4#
main45130-20832-P0i199308-199309
SHADOW GRAY,TRIM1#
main45130-20832-R8i199308-199309
DARK BLUE,TRIM8#
main45130-20841-02i198910-199008
RED,TRIM3#
main45130-20841-03i198910-199308
SHADOW GRAY,TRIM1#
main45130-20841-04i198910-199108
DARK BLUE,TRIM8#
main45130-20841-06i199008-199108
CHOCOLATE BROWN,TRIM4#
main45130-20842-P0i199308-199309
SHADOW GRAY,TRIM1#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-20030-02i198909-199008
RED,TRIM3#
main45186-20030-03i199208-199309
SHADOW GRAY,TRIM1#
main45186-20030-04i198909-199208
DARK BLUE,TRIM8#
main45186-20030-16i199008-199108
CHOCOLATE BRONWN,TRIM4#
main45186-20040-02i198909-199008
W(CRUISE CONTROL),RED,TRIM3#
main45186-20040-03i199208-199309
SHADOW GRAY,TRIM1#; W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45186-20040-04i199108-199208
W(CRUISE CONTROL),DARK BLUE,TRIM8#
main45186-20040-16i199008-199108
CHOCOLATE BROWN,TRIM4#; W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-20020-02i198909-199008
RED,TRIM3#
main45187-20020-03i199208-199309
SHADOW GRAY,TRIM1#
main45187-20020-04i199108-199208
DARK BLUE,TRIM8#
main45187-20020-16i199008-199108
CHOCOLATE BROWN,TRIM4#
45199ALABEL, INFLATOR REPLACE CAUTION(FOR STEERING WHEEL PAD)
main45199-32010i198909-199208
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-199309
main90179-12086i198909-199306

6 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota CELICA

This section contains 15 genuine Toyota parts for the STEERING WHEEL system of the Toyota CELICA. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, PAD, STEERING WHEEL, ORNAMENT, STEERING WHEEL MARK, BUTTON ASSY, HORN.
