Toyota CELICA — STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 1.0KW 0004 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i3SGELC..ST162198708-198908

main28011-74010i3SFE,3SGTE..ST16#198708-198805

main28011-74011i3SFE,3SGTE..ST16#198805-198908

sub28011-74060

28100STARTER ASSY

main28100-63030i3SGELC..ST162..USA198708-198908

12V 1.4KW

main28100-63050i3SGELC..ST162..USA198708-198908

12V 1.0KW

sub28100-74040

main28100-74010i3SFE,3SGTE..ST16#..(CP,LB)..USA198708-198805

12V 1.0KW

main28100-74011i3SFE,3SGTE..ST16#..(CP,LB)..USA198805-198908

12V 1.0KW

main28100-74020i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198708-198805

12V 1.4KW

main28100-74021i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198805-198908

12V 1.4KW

sub28100-74090

28110HOUSING ASSY, STARTER DRIVE

main28110-63030i3SGELC..ST162..USA198708-198908

COLD SPEC

main28110-63050i3SGELC..ST162..USA198708-198908

main28110-74010i3SFE,3SGTE..ST16#..(CP,LB)..USA198708-198908

main28110-74020i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198708-198908

COLD SPEC

28120YOKE ASSY, STARTER

main28120-15090i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

COLD SPEC

main28120-26071i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i3SGELC..ST162..USA198708-198908

main28130-35020i3SGELC..ST162..USA198708-198908

COLD SPEC

main28130-74010i3SFE,3SGTE..ST16#..(CP,LB)..USA198708-198908

main28130-74020i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198708-198908

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i3SGELC..ST162..USA198708-198908

COLD SPEC

main28140-26070i3SGELC..ST162..USA198708-198908

main28140-74010i3SFE,3SGTE..ST16#..(CP,LB)..USA198708-198908

main28140-74020i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198708-198908

COLD SPEC

28143SPRING, STARTER BRUSH

main90099-17112×4i3SGELC..ST162..CND198708-198908

28150BSWITCH ASSY, MAGNETIC

main28150-63030i3SGELC..ST162..USA198708-198908

COLD SPEC

main28150-63050i3SGELC..ST162..USA198708-198908

main28150-74010i3SFE,3SGTE..ST16#..(CP,LB)..USA198708-198908

main28150-74020i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198708-198908

COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15090i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

COLD SPEC

sub28160-15091

main28160-26070i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

sub28160-26071

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

NO.1

main90099-10113i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

NO.2

main90099-10143i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

NO.1

main90099-10144i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

COLD SPEC,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i3SGELC..ST162..USA198708-198908

COLD SPEC

main28165-74010i3SFE,3SGTE..ST16#198708-198908

28228AROLLER, STARTER CLUTCH

main28228-26040×5i3SFE,3SG#..ST16#198708-198908

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i3SFE,3SG#..ST16#198708-198908

28252GEAR, STARTER IDLE

main28251-15090i3SFE,3SG#..ST16#..(CP,LB)..USA198708-198908

NO.1

main28254-45020i3SGELC..ST162..USA198708-198908

COLD SPEC,NO.2

main28254-54070i3SFE..ST162..CVT;3SFE,3SGTE..ST16#..CND198708-198908

NO.2

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161035

main91611-61035

9411040800

main94110-40800

9451100800

main94511-00800

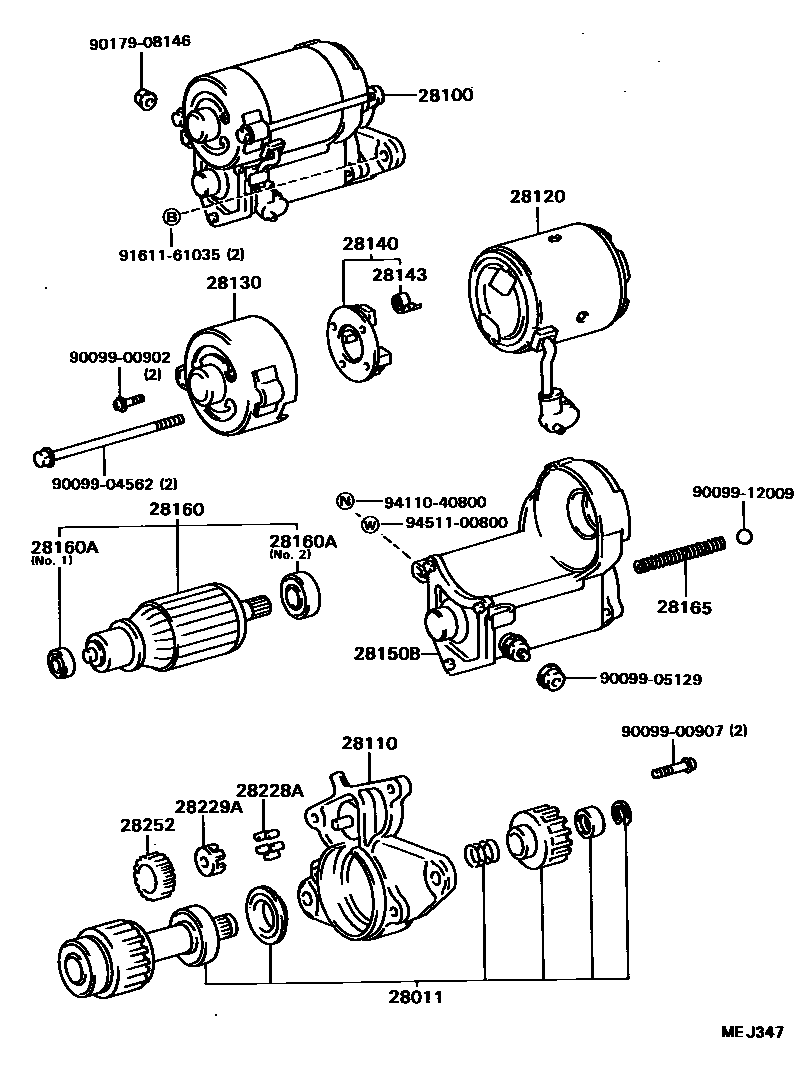

23 parts on this diagram · 4 diagrams in section
