Toyota CELICA — STARTER

0001 1 0003 1 0005 1 0006 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i22R#,5MGE..MA61,RA6#198108-198512

12V 1.0KW,1.4KW

28100STARTER ASSY

main28100-34053i22R#..RA6#198108-198311

12V 1.4KW

main28100-34080i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW,12V 1.0KW

main28100-35020i22REC..RA6#198311-198507

12V 1.4KW,12V 1.4KW

sub28100-35060

main28100-45033i5MGE..MA61198108-198308

12V 1.4KW,12V 1.4KW

main28100-45050i5MGE..MA61198308-198512

12V 1.4KW,12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-34080i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW

main28110-35020i22REC..RA6#198311-198507

12V 1.4KW

main28110-45050i5MGE..MA61198308-198512

12V 1.4KW

main28115-34053i22R#..RA6#198108-198311

12V 1.4KW

main28115-45021i5MGE..MA61198108-198308

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-15090i5MGE..MA61198308-198512

12V 1.4KW

main28120-26070i22R..RA64..USA198108-198203

12V 1.0KW

main28120-26071i22R#..RA6#..(CP,LB)..USA198203-198507

12V 1.0KW

main28120-34030i5MGE..MA61198108-198308

12V 1.4KW

main28120-34040i22R#..RA6#198108-198311

12V 1.4KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15090i5MGE..MA61198308-198512

12V 1.4KW

main28130-34060i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW

main28130-35020i22REC..RA6#198311-198507

12V 1.4KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i5MGE..MA61198308-198512

12V 1.4KW

main28140-26070i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW

main28140-34030i22R#,5MGE..MA61,RA6#198108-198308

12V 1.4KW

28143SPRING, STARTER BRUSH

main90099-17112×4i22R#,5MGE..MA61,RA6#198108-198512

12V 1.0KW,1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34052i22R#..RA6#198108-198311

12V 1.4KW

main28150-34080i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW

main28150-45032i5MGE..MA61198108-198308

12V 1.4KW

main28150-45050i5MGE..MA61198308-198512

12V 1.4KW

main28150-72020i22REC..RA6#198311-198507

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i5MGE..MA61198308-198512

12V 1.4KW

sub28160-15091

main28160-26050i22R#,5MGE..MA61,RA6#198108-198308

12V 1.4KW

main28160-26070i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW

sub28160-26071

28160ABEARING, STARTER ARMATURE

main28253-45020i22REC..RA6#..(CP,LB)..USA198311-198507

12V 1.0KW,NO.1

main90099-10107i22R#,5MGE..MA61,RA6#198108-198308

12V 1.4KW,NO.2

main90099-10113i22R#..RA6#..(CP,LB)..USA198108-198507

12V 1.0KW,NO.2

main90099-10143i5MGE..MA61198308-198512

12V 1.4KW,NO.2

main90099-10144i22REC..RA6#198311-198507

12V 1.4KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i22R#,5MGE..MA61,RA6#198108-198512

12V 1.0KW,1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i22R#,5MGE..MA61,RA6#198108-198512

12V 1.0KW,1.4KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i22R#,5MGE..MA61,RA6#198108-198512

12V 1.0KW,1.4KW

28252GEAR, STARTER IDLE

main28254-45020i22R#,5MGE..MA61,RA6#198108-198512

12V 1.0KW,1.4KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161161030

main91611-61030

9411040800

main94110-40800

9451100800

main94511-00800

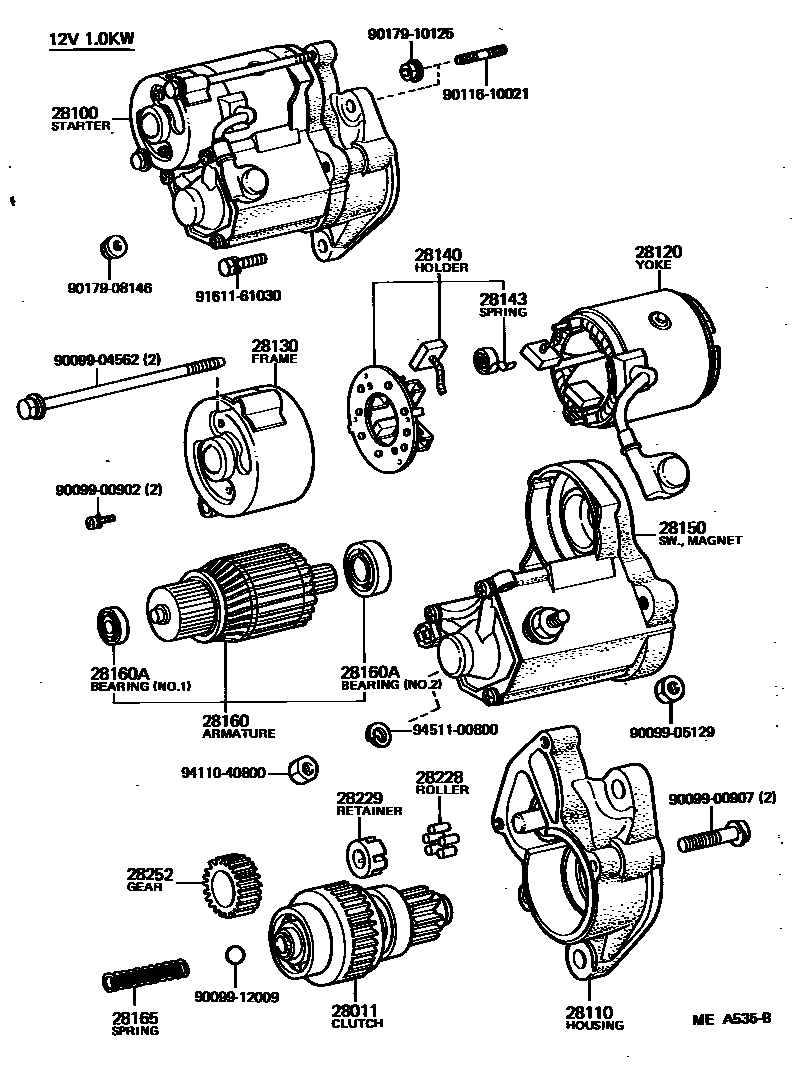

25 parts on this diagram · 4 diagrams in section
