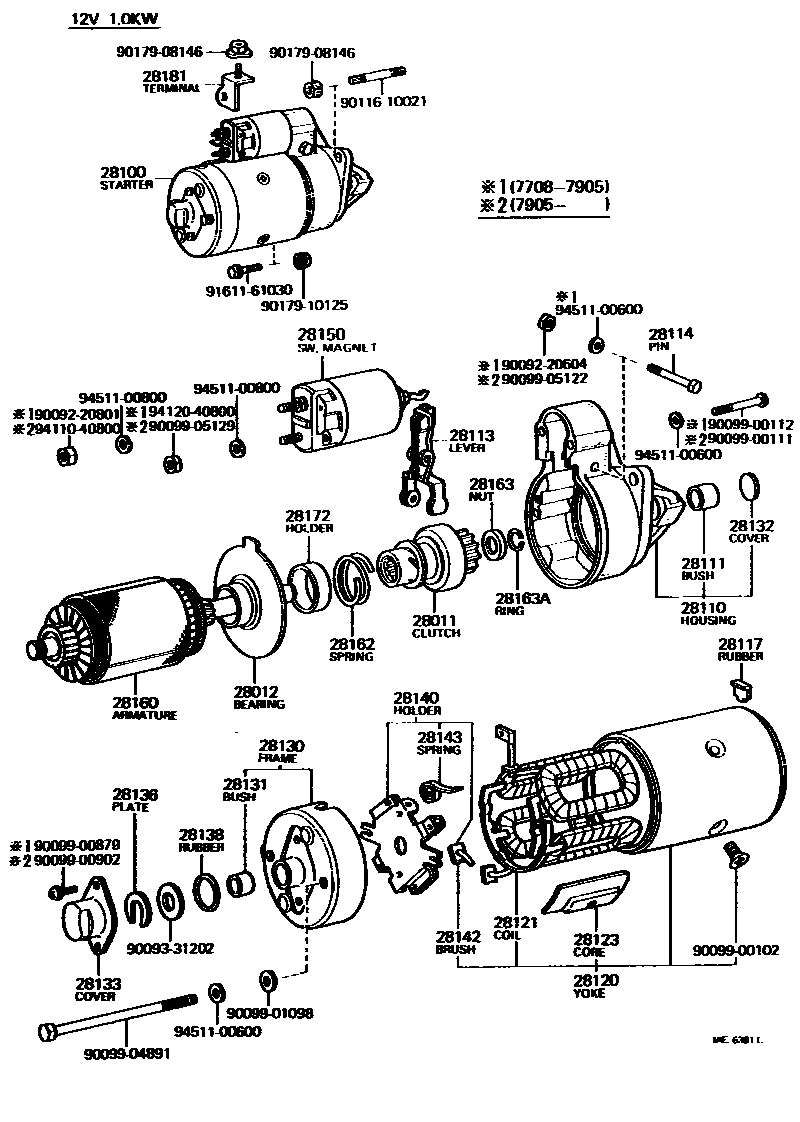

28011CLUTCH SUB-ASSY, STARTER
main28011-26041i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.4KW
main28011-26042i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198008 12V 1.4KW
main28011-41020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28012BEARING SUB-ASSY, CENTER
main28126-33021i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28100STARTER ASSY
main28100-33020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-197905 12V 1.0KW
main28100-34052i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.4KW
main28100-34070i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW,12V 1.0KW
main28100-42020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-197905 12V 1.0KW
main28100-42021i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW
main28100-45033i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107 12V 1.4KW,12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
main28110-40061i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
main28110-41021i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198008 12V 1.0KW
main28115-34031i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.4KW
main28115-45021i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107 12V 1.4KW
28111BUSH(FOR STARTER HOUSING)
main28111-51011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28113LEVER, STARTER PINION DRIVE
main28113-41011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28114PIN, STARTER DRIVE LEVER SET
main28114-41011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28117RUBBER(FOR STARTER YOKE)
main28117-41020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28120YOKE ASSY, STARTER
main28120-33022i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-197905 12V 1.0KW
main28120-34030i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107 12V 1.4KW
main28120-34040i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107 12V 1.4KW
main28120-34070i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW
main28120-41021i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-197905 12V 1.0KW
main28120-42020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW
28121COIL, STARTER FIELD
main28121-34070i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198004 12V 1.0KW
main28121-41020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-197905 12V 1.0KW
main28121-42020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)198004-198008 12V 1.0KW
28123CORE, STARTER POLE
main28123-41020×4i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-41020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28131BUSH, COMMUTATOR END FRAME
main28131-20010i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW,STD
main90099-10039i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW,U/S 0.3
main90099-10040i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW,U/S 0.5
28132COVER, STARTER BEARING(FOR DRIVE HOUSING)
main28166-41010i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198008 12V 1.0KW
main28166-41011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28133COVER, BEARING(FOR END FRAME)
main28132-40010i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28136PLATE, STARTER LOCK
main28136-40010i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28138RUBBER(FOR STARTER BEARING COVER)
main28138-40010i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28140HOLDER ASSY, STARTER BRUSH
main28140-25020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
main28140-34030i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107 12V 1.4KW
main28140-41020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198008 12V 1.0KW
28142BRUSH, STARTER
main28142-10011×4i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-197905 12V 1.0KW
main28142-25011×4i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW,HOLDER
main28142-25020×2i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW,YOKE
main28142-25021×2i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-197905 12V 1.0KW,HOLDER
28143SPRING, STARTER BRUSH
main28143-40010×4i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW
main28143-40040×4i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW
main90099-17112×4i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.4KW
28150SWITCH ASSY, MAGNET STARTER
main28150-22011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-197905 12V 1.0KW
main28150-34052i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107 12V 1.4KW
main28150-34070i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197905-198008 12V 1.0KW
main28150-45032i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107 12V 1.4KW
main28150-60040i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197901-198008 12V 1.0KW
28160ARMATURE ASSY, STARTER
main28160-26050i22R..RA43..CP..5F..GT;20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107 12V 1.4KW
main28160-41020i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28162SPRING, STARTER BRAKE
main28162-41022i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28163NUT OR COLLAR, PINION STOP, STARTER
main28163-40011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
main90099-07047i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28172HOLDER, STARTER SPRING
main28172-41021i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-198008 12V 1.0KW
28181TERMINAL, STARTER
main28181-20011i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197908-198008 12V 1.0KW
main28181-34010i20R,4ME..MA46,RA42..(3FC,5F)..(LT,SPR)197708-197908 12V 1.0KW
