Toyota CELICA — SPEAKER

0001 1 0002 1

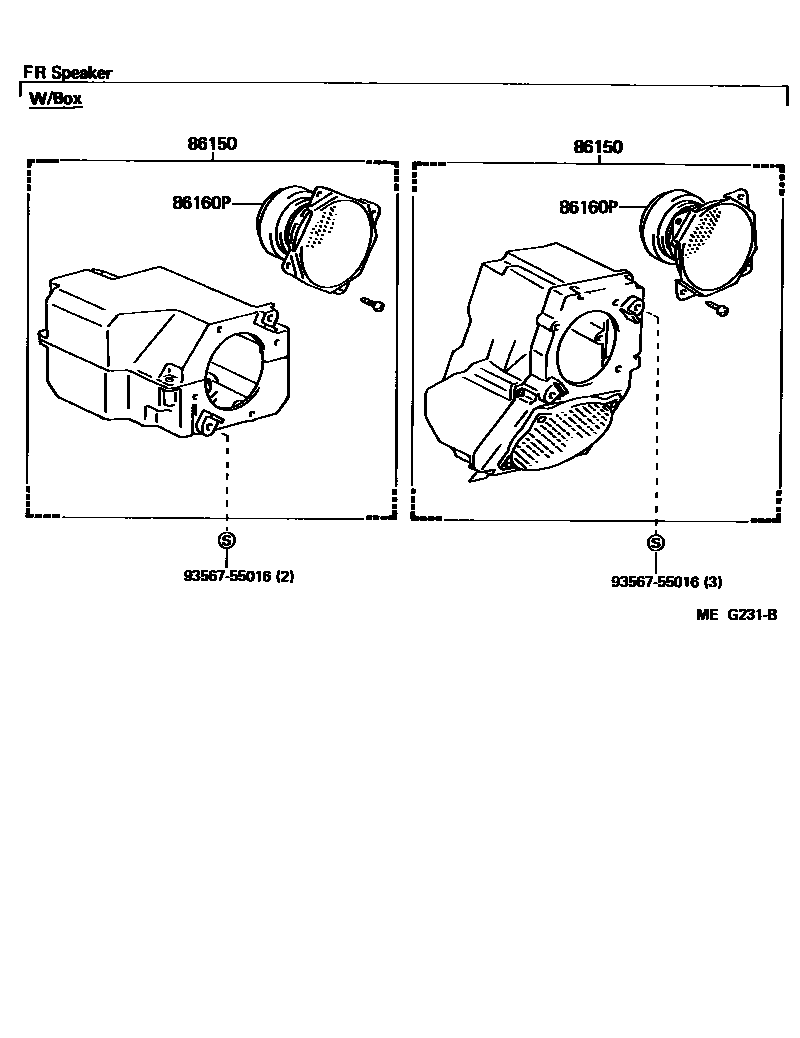

86150SPEAKER ASSY, W/BOX, NO.1

main86150-20070iST16#198508-198708

FR,LH

main86150-20080iST16#198508-198708

FR,RH

main86150-20090iST16#..LB198508-198708

RR,RH

sub86150-20091

main86150-20100iST16#..LB198508-198708

RR,LH

sub86150-20101

86160PSPEAKER ASSY, FRONT NO.2

main86160-20290×2iST16#198508-198708

9356755016

main93567-55016

3 parts on this diagram · 2 diagrams in section
