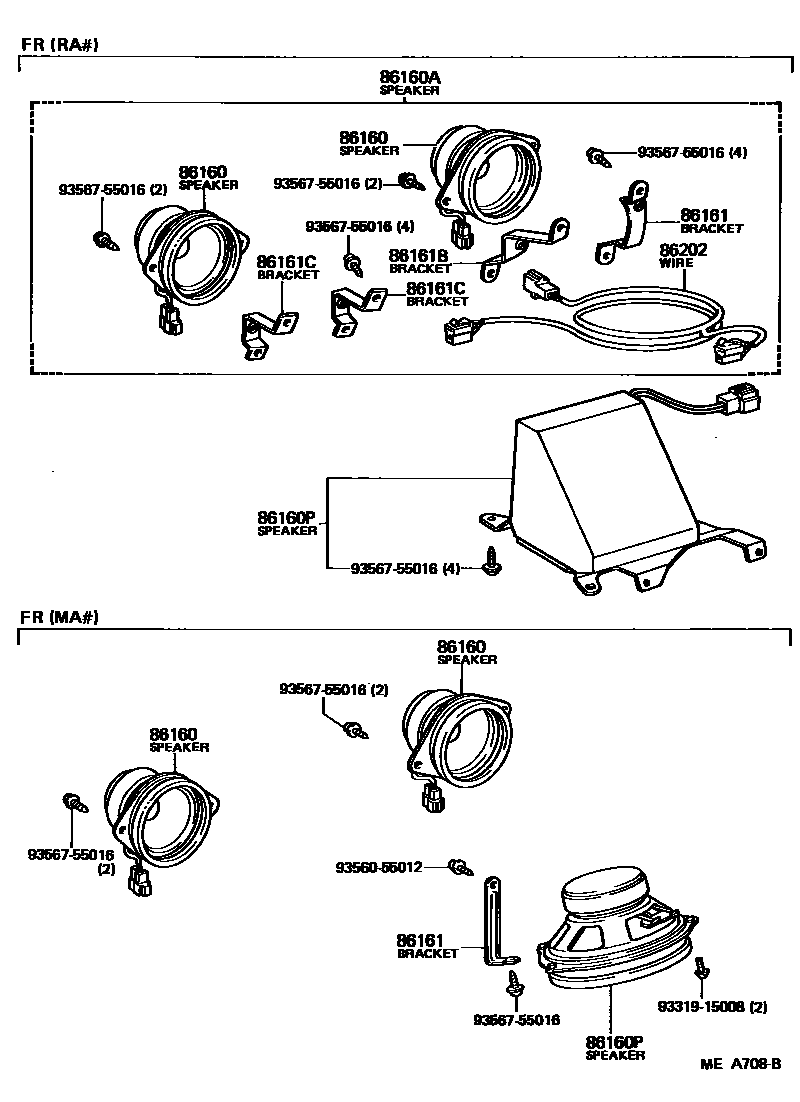

Toyota CELICA — SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-14180×2iMA61,RA6#198108-198512

86160ASPEAKER SET, FRONT

main86160-19305iRA6#198108-198507

86160PSPEAKER ASSY, FRONT NO.2

main86160-14260iMA61198108-198512

main86160-19315iRA6#198108-198507

86161BRACKET, SPEAKER, FRONT NO.1

main86219-14070iRA6#198108-198507

main86219-14100iMA61198108-198512

86161BBRACKET, SPEAKER, FRONT NO.2

main86219-14080iRA6#198108-198507

86161CBRACKET, SPEAKER, FRONT NO.3

main86219-14090×2iRA6#198108-198507

86202WIRE, SPEAKER, NO.1

main82181-14181iRA6#..CP,CVT198108-198408

9331915008

main93319-15008

9356055012

main93560-55012

9356755016

main93567-55016

10 parts on this diagram · 2 diagrams in section
