Toyota CELICA — SIDE MOULDING

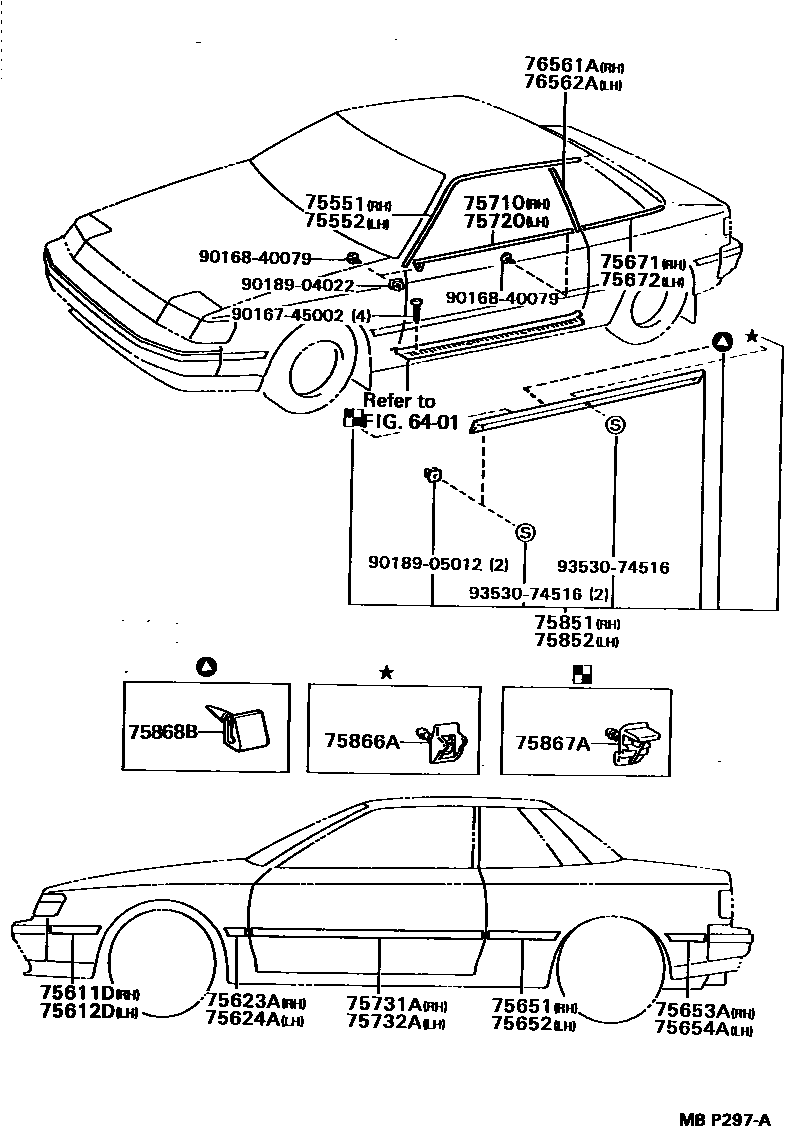

Parts diagram
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
→ Go to FIG 64-01
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-20260i198708-198908
main75551-20270i198708-198710
main75551-20271i198710-198908
main75551-20290i198708-198908
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-20260i198708-198908
main75552-20270i198708-198710
main75552-20271i198710-198908
main75552-20290i198708-198908
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
main75611-20210i198708-198908
main75611-20430-01i198710-198908
BLACK,202
main75611-20430-02i198710-198908
SUPER RED 2,3E5
main75611-20430-03i198710-198908
GRAY-M,168
main75611-20430-04i198710-198908
BLUE MAICA,8E3
main75611-20430-08i198710-198908
SUPER WHITE 2,040
main75611-20490-02i198810-198901
SUPER RED 2,3E5
main75611-20490-04i198808-198810
BLUE MICA,8E3
main75611-20490-08i198810-198901
SUPER WHITE 2,040
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
main75612-20180i198708-198908
main75612-20400-01i198710-198908
BLACK,202
main75612-20400-02i198710-198908
SUPER RED 2,3E5
main75612-20400-03i198710-198908
GRAY-M,168
main75612-20400-04i198710-198908
BLUE MAICA,8E3
main75612-20400-08i198710-198908
SUPER WHITE 2,040
main75612-20460-02i198808-198810
SUPER RED 2,3E5
main75612-20460-04i198810-198908
BLUE MICA,8E3
main75612-20460-08i198808-198810
SUPER WHITE 2,040
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-20070i198708-198908
main75623-20190-01i198710-198908
BLACK,202
main75623-20190-02i198710-198908
SUPER RED 2,3E5
main75623-20190-03i198710-198908
GRAY-M,168
main75623-20190-04i198710-198908
BLUE MAICA,8E3
main75623-20190-08i198710-198908
SUPER WHITE 2,040
main75623-20210-02i198810-198901
SUPER RED 2,3E5
main75623-20210-04i198808-198810
BLUE MICA,8E3
main75623-20210-08i198901-198908
SUPER WHITE 2,040
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-20070i198708-198908
main75624-20190-01i198710-198908
BLACK,202
main75624-20190-02i198710-198908
SUPER RED 2,3E5
main75624-20190-03i198710-198908
GRAY-M,168
main75624-20190-04i198710-198908
BLUE MAICA,8E3
main75624-20190-08i198710-198908
SUPER WHITE 2,040
main75624-20210-02i198810-198901
SUPER RED 2,3E5
main75624-20210-04i198810-198908
BLUE MICA,8E3
main75624-20210-08i198808-198810
SUPER WHITE 2,040
75651MOULDING, QUARTER, OUTSIDE RH
main75651-20200i198708-198908
main75651-20290-01i198710-198908
BLACK,202
main75651-20290-02i198710-198908
SUPER RED 2,3E5
main75651-20290-03i198710-198908
GRAY-M,168
main75651-20290-04i198710-198908
BLUE MAICA,8E3
main75651-20290-08i198710-198908
SUPER WHITE 2,040
main75651-20320-02i198808-198810
SUPER RED 2,3E5
main75651-20320-04i198810-198908
BLUE MICA,8E3
main75651-20320-08i198808-198810
SUPER WHITE 2,040
75652MOULDING, QUARTER, OUTSIDE LH
main75652-20190i198708-198908
main75652-20260-01i198710-198908
BLACK,202
main75652-20260-02i198710-198908
SUPER RED 2,3E5
main75652-20260-03i198710-198908
GRAY-M,168
main75652-20260-04i198710-198908
BLUE MAICA,8E3
main75652-20260-08i198710-198908
SUPER WHITE 2,040
main75652-20280-02i198810-198901
SUPER RED 2,3E5
main75652-20280-04i198808-198810
BLUE MICA,8E3
main75652-20280-08i198810-198901
SUPER WHITE 2,040
75653AMOULDING, QUARTER, OUTSIDE REAR RH
main75653-20140i198708-198908
main75653-20170i198708-198908
main75653-20220-02i198808-198810
SUPER RED 2,3E5
main75653-20220-04i198808-198810
BLUE MICA,8E3
main75653-20220-08i198810-198908
SUPER WHITE 2,040
main75653-20240-02i198901-198908
SUPER RED 2,3E5
main75653-20240-04i198810-198908
BLUE MICA,8E3
main75653-20240-08i198810-198901
SUPER WHITE 2,040
75654AMOULDING, QUARTER, OUTSIDE REAR LH
main75654-20130i198708-198908
main75654-20160i198708-198908
main75654-20210-02i198810-198908
SUPER RED 2,3E5
main75654-20210-04i198810-198908
BLUE MICA,8E3
main75654-20210-08i198810-198908
SUPER WHITE 2,040
main75654-20230-02i198810-198901
SUPER RED 2,3E5
main75654-20230-04i198810-198908
BLUE MICA,8E3
main75654-20230-08i198810-198901
SUPER WHITE 2,040
75671MOULDING, QUARTER BELT, RH
main75660-20030i198708-198908
main75671-20030i198708-198908
main75671-20040i198708-198908
75672MOULDING, QUARTER BELT, LH
main75670-20010i198708-198908
main75672-20030i198708-198908
main75672-20040i198708-198908
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-20280i198708-198908
main75710-20290i198708-198908
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-20280i198708-198908
main75720-20290i198708-198908
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-20220i198708-198908
main75731-20430-01i198810-198901
BLACK,202
main75731-20430-02i198808-198810
SUPER RED 2,3E5
main75731-20430-03i198710-198908
GRAY-M,168
main75731-20430-04i198710-198908
BLUE MAICA,8E3
main75731-20430-08i198808-198810
SUPER WHITE 2,040
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-20220i198708-198908
main75732-20430-01i198810-198901
BLACK,202
main75732-20430-02i198810-198901
SUPER RED 2,3E5
main75732-20430-03i198810-198908
GRAY-M,168
main75732-20430-04i198710-198908
BLUE MAICA,8E3
main75732-20430-08i198710-198908
SUPER WHITE 2,040
75851MOULDING, ROCKER PANEL, RH
main75850-20140i198708-198908
main75850-29175i198708-198908
75852MOULDING, ROCKER PANEL, LH
main75850-29175i198708-198908
main75860-20100i198708-198908
75866ARETAINER, ROCKER PANEL MOULDING
main75866-20020×2i198708-198908
75867ACLIP, ROCKER PANEL MOULDING
main75867-20050×4i198708-198908
main75867-20060×8i198708-198908
75868BCLIP, ROCKER PANEL MOULDING, NO.2
main75868-20010×2i198708-198908
76561AMOULDING, CENTER PILLAR, RH
main76561-20010i198708-198908
76562AMOULDING, CENTER PILLAR, LH
main76562-20010i198708-198908
9016745002
main90167-45002
9016840079
main90168-40079
9018904022
main90189-04022
9018905012
main90189-05012
9353074516
main93530-74516

29 parts on this diagram · 3 diagrams in section

SIDE MOULDING for Toyota CELICA

This section contains 69 genuine Toyota parts for the SIDE MOULDING system of the Toyota CELICA. Key components include: INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, SEAL, OUTSIDE MOULDING, NO.2, SEAL, OUTSIDE MOULDING, NO.3, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH.
