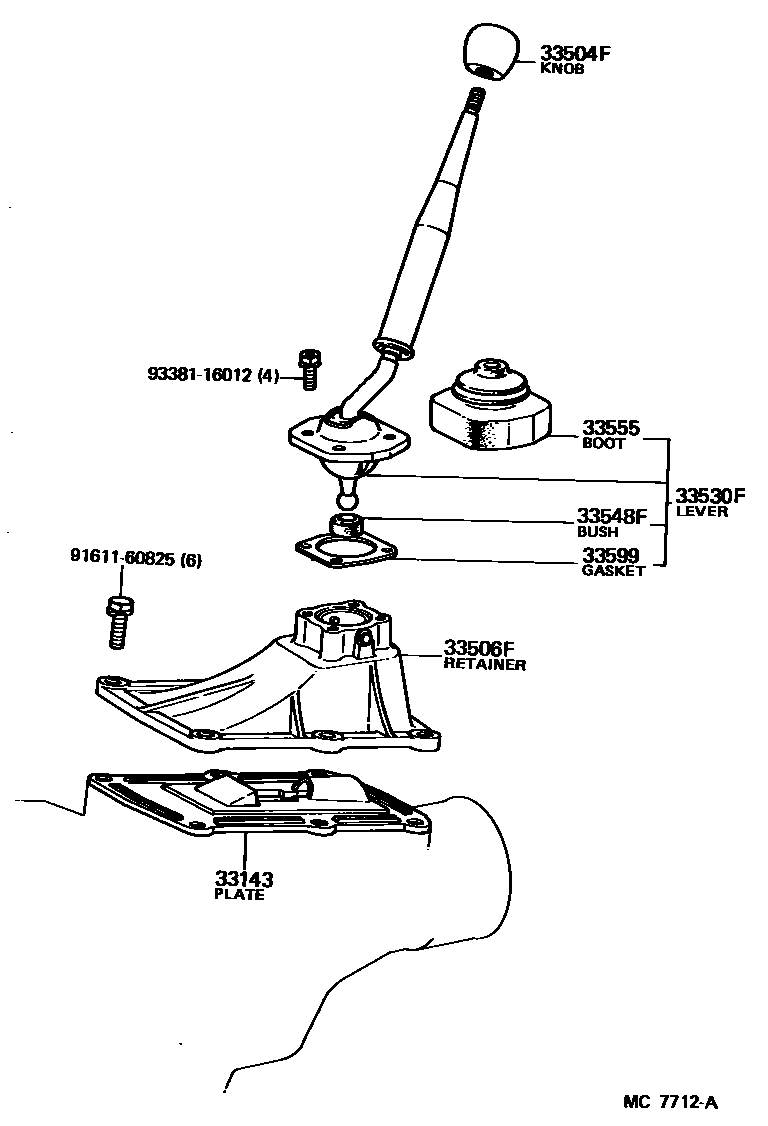

Toyota CELICA — SHIFT LEVER & RETAINER

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020i198108-198512

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-01i198108-198507

BLACK,BLACK

main33504-14070-04i198108-198507

BLUE,BLUE

main33504-14070-06i198108-198507

DARK BROWN,BROWN

main33504-24010-01i198308-198507

BLACK,BLACK

main33504-24010-04i198108-198308

BLUE,BLUE

main33504-24010-06i198108-198507

DARK BROWN,BROWN

main33504-24020-01i198108-198512

BLACK,BLACK

main33504-24020-02i198108-198308

TERRACOTTA,RED/MAROON

main33504-24020-04i198108-198512

BLUE,BLUE

main33504-24020-12i198308-198512

DEEP MAROON,RED/MAROON

main33542-24030-01i198108-198308

BLACK,BLACK

main33542-24030-02i198108-198308

TERRACOTTA,RED/MAROON

main33542-24030-04i198108-198308

BLUE,BLUE

main33542-24030-06i198108-198308

DARK BROWN,BROWN

main33542-30150-01i198308-198512

BLACK,BLACK

main33542-30150-02i198308-198512

DEEP MAROON,RED/MAROON

main33542-30150-04i198308-198512

BLUE,BLUE

main33542-30150-06i198308-198507

DARK BROWN,BROWN

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14030i198108-198512

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-14120i198108-198308

main33503-14130i198308-198512

main33530-14310i198108-198512

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010i198108-198512

33555BOOT, SHIFT LEVER

main33555-14030i198108-198308

main33555-14050i198308-198512

main33555-22050i198108-198512

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020i198108-198512

9161160825

main91611-60825

9338116012

main93381-16012

9 parts on this diagram · 3 diagrams in section

SHIFT LEVER & RETAINER for Toyota CELICA

This section contains 44 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota CELICA. Key components include: PLATE, EXTENSION HOUSING OIL BAFFLE, BUSH (FOR FLOOR SHIFT CONTROL SHAFT), COLLAR (FOR FLOOR SHIFT SETTING), BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING), KNOB SUB-ASSY, SHIFT LEVER.
