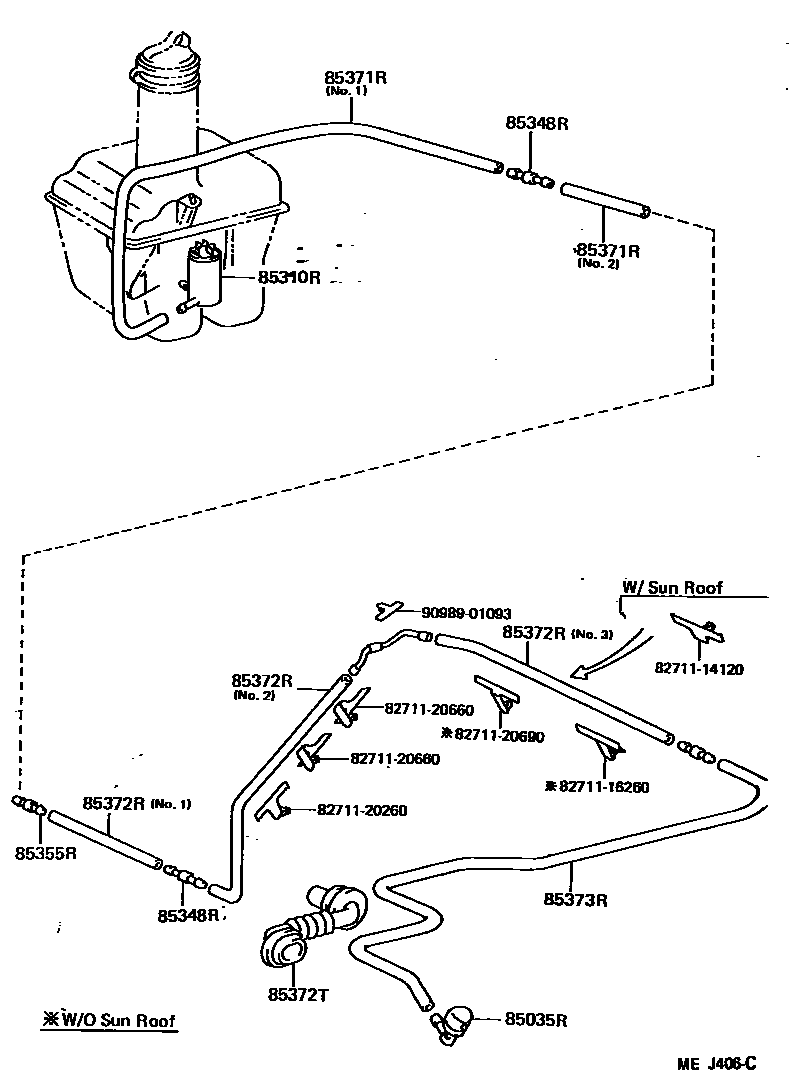

Toyota CELICA — REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-20160i198708-198908

85310RMOTOR ASSY, REAR WASHER

main85310-14110i198708-198908

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i198708-198908

85355RVALVE, REAR WASHER HOSE

main85031-12250i198708-198908

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299i198708-198908

L=1000(*H,L=50),NO.2

main90099-33396i198708-198908

L=1800(*H,L=570),NO.1

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299i198708-198908

L=1000(*H,L=695),NO.3

main90099-33382i198708-198908

*H,L=1020,NO.2

main90446-06013i198708-198908

L=1000(*H,L=300),NO.1

85372TGROMMET, WASHER

main85372-14020i198708-198908

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33063i198708-198908

L=1450(*H,L=600)

8271114120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14120

8271116260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16260

8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20260

8271120660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20660

8271120690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20690

9098901093

main90989-01093

14 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota CELICA

This section contains 14 genuine Toyota parts for the REAR WASHER system of the Toyota CELICA. Key components include: NOZZLE SUB-ASSY, REAR WASHER, MOTOR ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, VALVE, REAR WASHER HOSE, HOSE, REAR WASHER (FROM MOTOR TO JOINT).
