Toyota CELICA — REAR SIDE MARKER LAMP

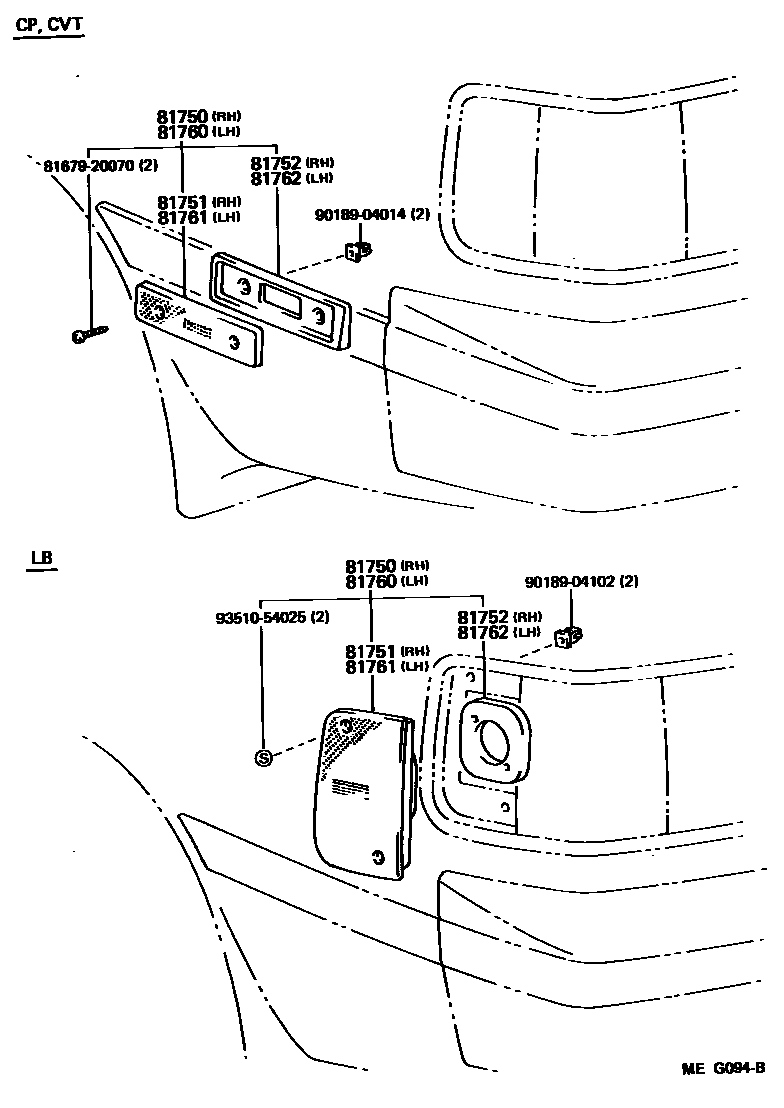

Parts diagram

81750LAMP ASSY, REAR SIDE MARKER, RH

main81750-20070i198508-198708

main81750-20080i198508-198708

81751LENS, REAR SIDE MARKER LAMP, RH

main81751-20070i198508-198708

main81751-20080i198508-198708

81752GASKET, REAR SIDE MARKER LAMP LENS

main81752-20080i198508-198708

main81754-20070i198508-198708

81760LAMP ASSY, REAR SIDE MARKER, LH

main81760-20030i198508-198708

main81760-20040i198508-198708

81761LENS, REAR SIDE MARKER LAMP, LH

main81761-20030i198508-198708

main81761-20040i198508-198708

81762GASKET, REAR SIDE MARKER LAMP

main81754-20070i198508-198708

main81762-20040i198508-198708

8167920070BRACKET, BACK UP LAMP BODY

main81679-20070

9018904014

main90189-04014

9018904102

main90189-04102

9351054025

main93510-54025

10 parts on this diagram · 1 diagram in section

REAR SIDE MARKER LAMP for Toyota CELICA

This section contains 10 genuine Toyota parts for the REAR SIDE MARKER LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, REAR SIDE MARKER, RH, LENS, REAR SIDE MARKER LAMP, RH, GASKET, REAR SIDE MARKER LAMP LENS, LAMP ASSY, REAR SIDE MARKER, LH, LENS, REAR SIDE MARKER LAMP, LH.
