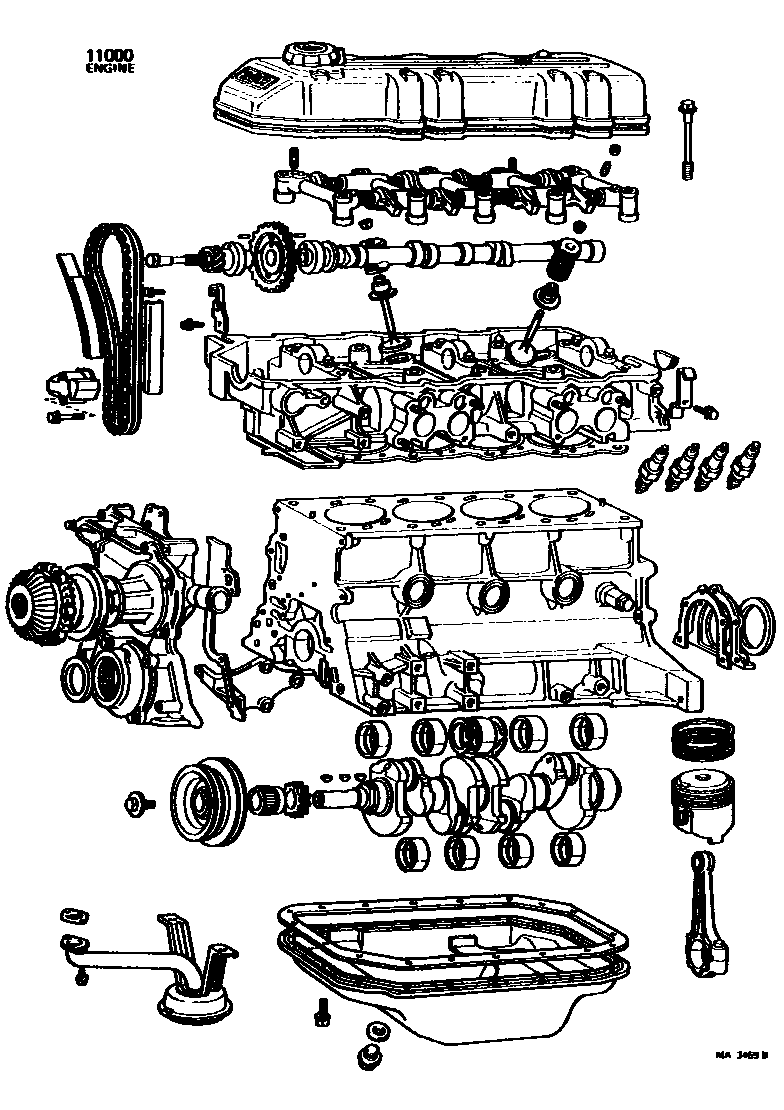

Toyota CELICA — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

11000ENGINE ASSY, PARTIAL

main19000-35010i22R..RA43..5F198008-198107

sub19000-35011

main19000-35020i22R..RA43..4FC198008-198107

sub19000-35021

main19000-38042i20R..RA42197708-197808

main19000-38091i20R..RA42197708-197808

CANADA SPEC

main19000-38130i20R..RA42197808-197908

main19000-38131i20R..RA42..3FC197908-198008

main19000-38140i20R..RA42197808-197908

CALIFORNIA & CANADA SPEC

main19000-38141i20R..RA42..3FC197908-198008

CANADA SPEC

main19000-43040i5ME..MA47198008-198107

sub19000-43041

main19000-45140i4ME..MA46197901-197908

main19000-45141i4ME..MA46197908-198008

sub19000-45142

1 parts on this diagram · 2 diagrams in section
