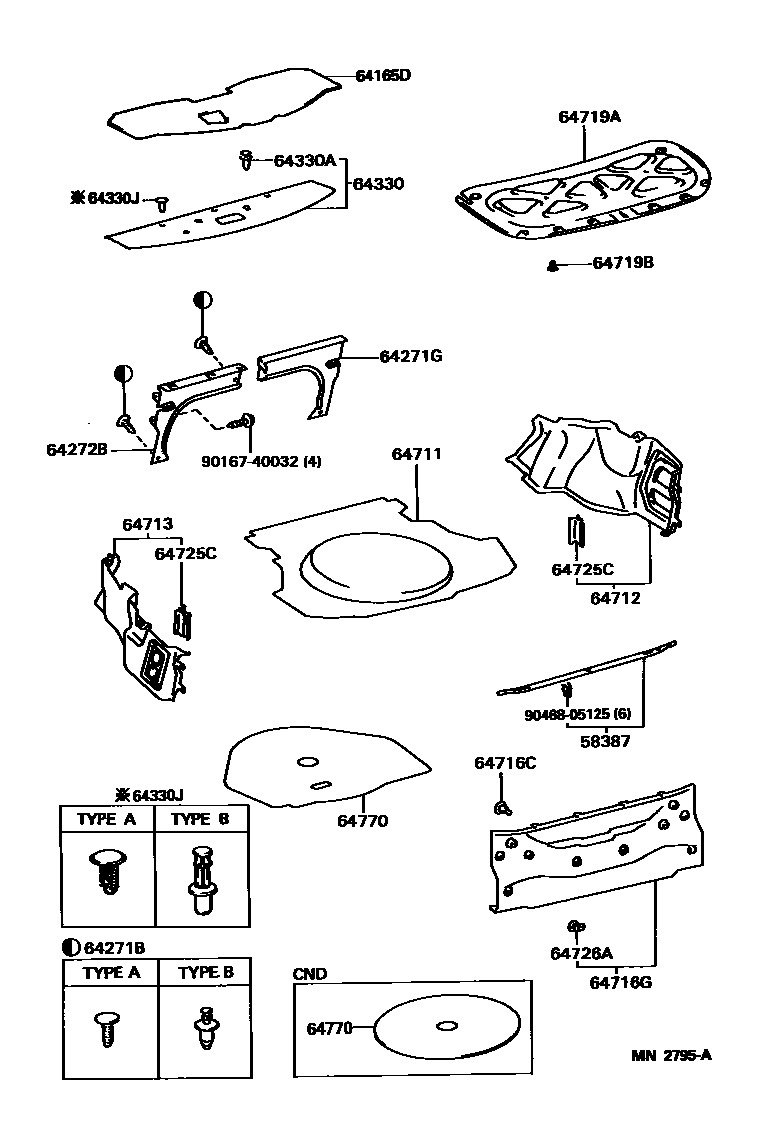

Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK,TRIM0#,2#,TYPE A
BLACK,TRIM0#,2#,TYPE B
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM0#,2#
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM0#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM0#,2#,TYPE A
BLACK,TRIM0#,2#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM2#
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM2#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64725CRETAINER, LUGGAGE COMPARTMENT COVER
BLACK,TRIM0#,2#
64726ACLIP, LUGGAGE TRIM, REAR
BLACK,TRIM0#,2#
64770COVER ASSY, SPARE WHEEL
9016740032
main90167-40032
9046805125
main90468-05125
20 parts on this diagram · 2 diagrams in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA
This section contains 25 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: PLATE, REAR FLOOR FINISH, COVER, UPPER BACK PANEL HOLE, NO.1, CLIP(FOR ROOM PARTITION BOARD), BOARD, ROOM PARTITION, RH, BOARD, ROOM PARTITION, LH.
