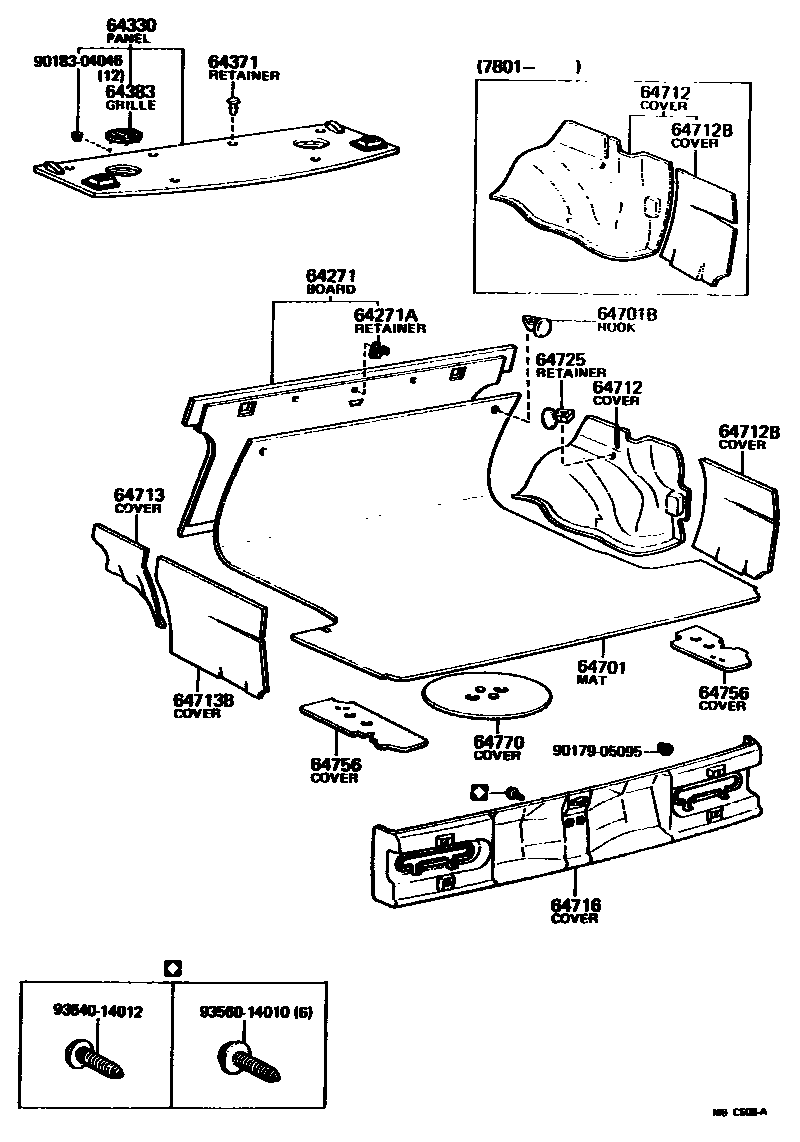

Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BOARD, ROOM PARTITION, NO.1
64271ARETAINER, ROOM PARTITION BOARD
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
4 SPEAKER,BLACK,BLACK
4 SPEAKER,BLUE,BLUE
4 SPEAKER,LIGHT BROWN,BROWN
SPECIAL CAMPAIGN
64371RETAINER, PACKAGE TRAY TRIM
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64383GRILLE, SPEAKER, REAR
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
SPECIAL CAMPAIGN
64701BHOOK, MALE(FOR LUGGAGE COMPARTMENT MAT)
GRAY,GRAY
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
64712BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
64713BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
GRAY,GRAY
64756COVER, LUGGAGE COMPARTMENT SIDE
RH
LH
64770COVER ASSY, SPARE WHEEL
9017905095
main90179-05095
9018304046
main90183-04046
9354014012
main93540-14012
9356014010
main93560-14010
19 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA
This section contains 19 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: BOARD, ROOM PARTITION, NO.1, RETAINER, ROOM PARTITION BOARD, PANEL ASSY, PACKAGE TRAY TRIM, RETAINER, PACKAGE TRAY TRIM, GRILLE, SPEAKER, REAR.
