Toyota CELICA — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-16080i4AFE..AT180198909-199309

main12311-74080i3SGTE,5SFE..ST18#198909-199309

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15070i4AFE..AT180198909-199309

main12315-74030i3SGTE,5SFE..ST18#198909-199309

12317STAY, ENGINE MOUNTING, RH

main12317-15020i4AFE..AT180198909-198912

main12317-16040i4AFE..AT180198912-199309

main12317-74070i3SGTE..ST185198910-199309

main12317-74080i5SFE..ST184198909-199309

12318STAY, ENGINE MOUNTING, LH

main12318-16080i4AFE..AT180..MTM198909-199309

main12318-16090i4AFE..AT180..ATM198909-199309

main12318-74090i5SFE..ST184..MTM198909-199309

main12318-74110i5SFE..ST184..ATM198909-199309

main12318-74140i3SGTE..ST185198910-199004

main12318-74141i3SGTE..ST185199004-199309

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-16170i4AFE..AT180..ATM198909-199309

main12321-16180i4AFE..AT180..MTM198909-199309

main12321-74060i3SGTE..ST185198910-199309

main12321-74160i5SFE..ST184..ATM198909-199309

main12321-74180i5SFE..ST184..MTM198909-199309

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-16100i4AFE..AT180..MTM198909-199309

main12325-16110i4AFE..AT180..ATM198909-199309

main12325-74080i5SFE..ST184..MTM198909-199309

main12325-74100i5SFE..ST184..ATM198909-199309

main12325-74110i3SGTE..ST185198910-199309

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-16170i4AFE..AT180..MTM198909-199309

main12361-16180i4AFE..AT180..ATM198909-199309

main12361-74130i5SFE..ST184..MTM198909-199309

main12361-74140i5SFE..ST184..ATM198909-199309

main12361-74150i3SGTE..ST185198910-199309

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-16180i4AFE..AT180198909-198912

main12362-16181i4AFE..AT180198912-199309

main12362-74120i5SFE..ST184..CP,LB198909-199309

main12362-74140i3SGTE..ST185198910-199309

main12362-74200i5SFE..ST184..CVT199006-199309

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-16180i4AFE..AT180..ATM198909-199309

main12371-16210i4AFE..AT180..MTM198909-199309

main12371-74180i5SFE..ST184..MTM198909-199309

main12371-74200i5SFE..ST184..ATM198909-199309

main12371-74210i3SGTE..ST185198910-199309

sub12371-74060

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-16180i4AFE..AT180..MTM198909-199309

main12372-16190i4AFE..AT180..ATM198909-199309

main12372-74200i5SFE..ST184..(CP,LB)..MTM198909-199309

main12372-74221i5SFE..ST184..(CP,LB)..ATM198909-199309

main12372-74230i3SGTE..ST185198910-199309

main12372-74250i5SFE..ST184..CVT..ATM199006-199309

main12372-74360i5SFE..ST184..CVT..MTM199008-199309

12511BRACKET, ALTERNATOR, NO.1

main12511-15040i4AFE..AT180198909-199309

main12511-74050i5SFE..ST184198909-199108

main12511-74051i5SFE..ST184199108-199309

main12511-88363i3SGTE..ST185198910-199101

main12511-88364i3SGTE..ST185199101-199110

main12511-88365i3SGTE..ST185199110-199309

12511ABUSH, ALTERNATOR BRACKET

main27351-70010i3SGTE..ST185198910-199309

main90387-10013i4AFE..AT180198909-199309

9010510051

main90105-10051

9010510193

main90105-10193

9010510202

main90105-10202

9010510279

main90105-10279

9010510280

main90105-10280

9010510328

main90105-10328

9010512077

main90105-12077

9010512115

main90105-12115

9010910115

main90109-10115

9011908861

main90119-08861

9011910499

main90119-10499

9011910604

main90119-10604

9017908068

main90179-08068

9017910041

main90179-10041

9017910108

main90179-10108

9017912016

main90179-12016

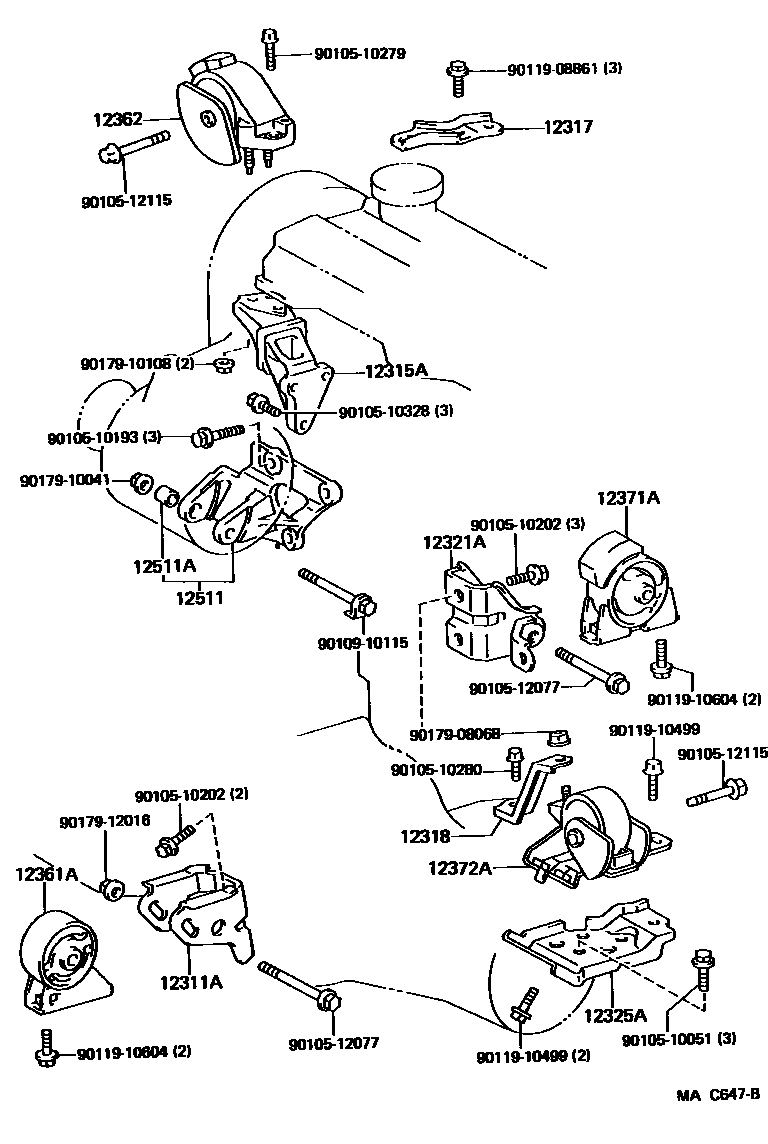

28 parts on this diagram · 4 diagrams in section
