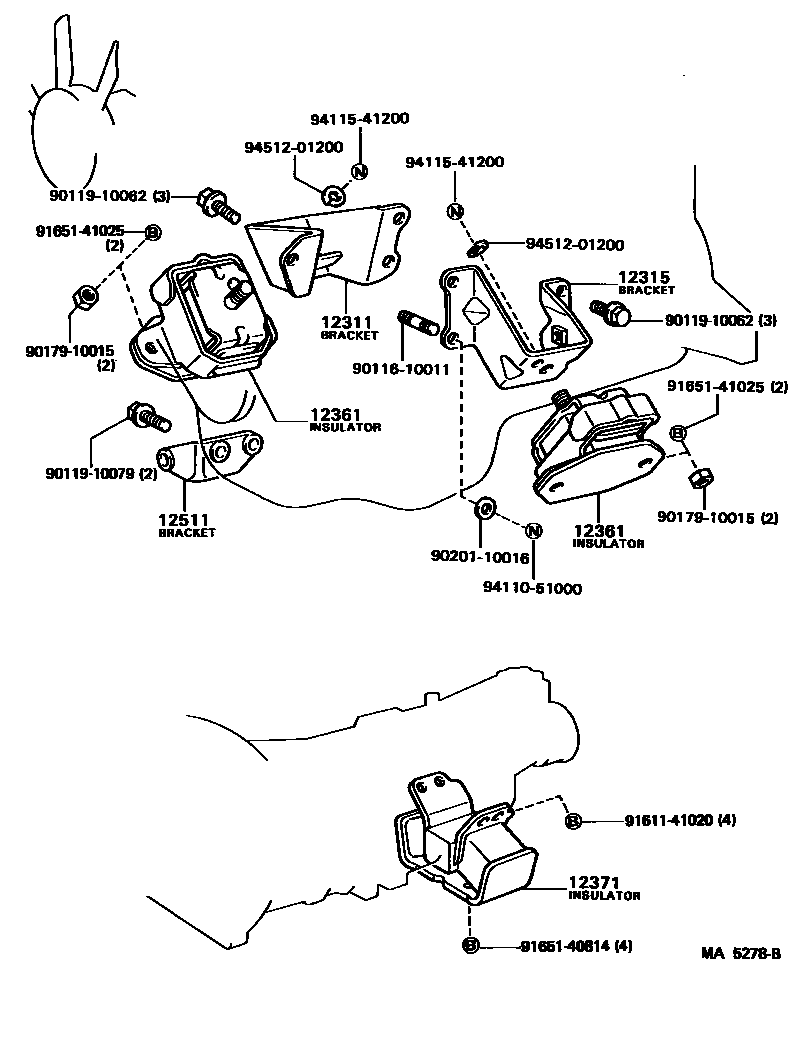

Toyota CELICA — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35070i22R..RA64198208-198308

main12301-35080i22R..RA64198108-198208

main12301-35110i22REC..RA6#198208-198408

main12301-35150i22REC..RA6#198408-198502

main12301-35170i22REC..RA6#198502-198507

main12311-41051i5MGE..MA61198108-198512

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35020i22R#..RA6#198108-198502

main12302-35090i22REC..RA6#198502-198507

main12315-41070i5MGE..MA61198108-198208

main12315-41071i5MGE..MA61198208-198512

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41082×2i5MGE..MA61198108-198512

main12361-63010×2i22REC..RA6#198502-198507

sub12361-63020

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34030i22R#..RA6#198108-198507

main12371-43020i5MGE..MA61198108-198512

12511BRACKET, ALTERNATOR, NO.1

main12511-35010i22R#..RA6#198108-198408

main12511-35030i22REC..RA6#198408-198507

main12511-41030i5MGE..MA61198108-198308

main12511-43010i5MGE..MA61198308-198512

9011610011

main90116-10011

9011910062

main90119-10062

9011910079

main90119-10079

9017910015

main90179-10015

9020110016

main90201-10016

9161141020

main91611-41020

9165140814

main91651-40814

9165141025

main91651-41025

9411051000

main94110-51000

9411541200

main94115-41200

9451201200

main94512-01200

16 parts on this diagram · 5 diagrams in section
