Toyota CELICA — MIRROR

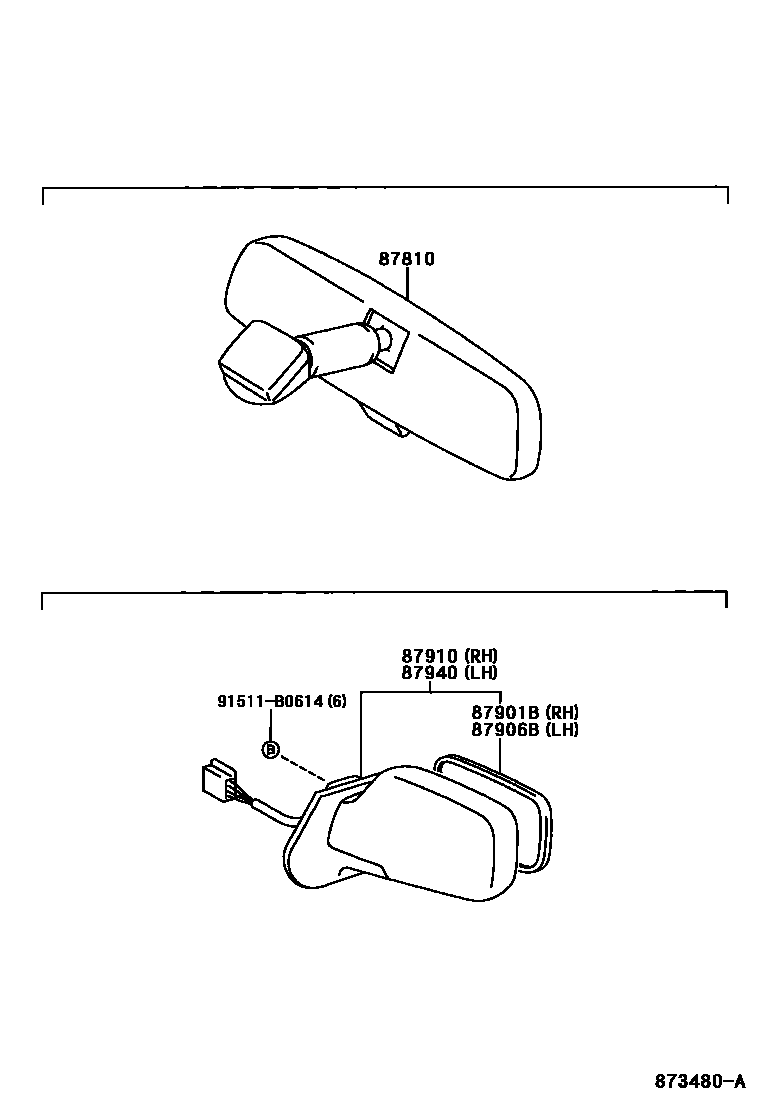

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040i200208-200507

main87810-AA010i199908-200208

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2D110i199908-200208

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2D230i199908-200208

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2D110-A0i200208-200507

SUPER WHITE 2,040

main87910-2D110-B0i199908-200208

SILVER ME.,1D0

main87910-2D110-B1i200208-200507

SILVER M.M.,1E7

main87910-2D110-B2i200402

ACTION PACKAGE 2(USA/HAWAII/P.RICO/CANADA),GRAY ME.,1D2

main87910-2D110-C0i199908-200208

BLACK,202

main87910-2D110-C1i199908-200208

BLACK MC.CC.,210

main87910-2D110-D0i199908-200208

SUPER RED 5,3P0

main87910-2D110-F0i200208-200507

SUPER BRIGHT YELLOW,576

main87910-2D110-J0i200208-200507

BLUE MC.,8M6

main87910-2D110-J1i200208-200507

BLUE ME.,8N0

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2D230-A0i199908-200208

SUPER WHITE 2,040

main87940-2D230-B0i199908-200208

SILVER ME.,1D0

main87940-2D230-B1i200208-200507

SILVER M.M.,1E7

main87940-2D230-B2i200402

ACTION PACKAGE 2(USA/HAWAII/P.RICO/CANADA),GRAY ME.,1D2

main87940-2D230-C0i200208-200507

BLACK,202

main87940-2D230-C1i199908-200208

BLACK MC.CC.,210

main87940-2D230-D0i200208-200507

SUPER RED 5,3P0

main87940-2D230-F0i200108-200208

SUPER BRIGHT YELLOW,576

main87940-2D230-J0i200208-200507

BLUE MC.,8M6

main87940-2D230-J1i200208-200507

BLUE ME.,8N0

91511B0614

main91511-B0614

6 parts on this diagram · 1 diagram in section
