Toyota CELICA — MIRROR

8121INTERIOR LAMP

→ Go to FIG 81-21

87810MIRROR ASSY, INNER REAR VIEW

main87801-20020-01i198708-198908

BLACK,TRIM2#

main87810-20200-02i198708-198908

RED,TRIM3#

main87810-20200-04i198708-198908

BLUE,TRIM8#

main87810-20200-05i198708-198908

DARK BEIGE,TRIM4#

main87810-20200-11i198708-198908

BLACK,TRIM2#

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020i198802-198908

L=35

main87828-87002i198708-198908

L=32

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-22i198708-198908

RED,TRIM3#

main87834-20080-34i198708-198908

DEEP BLUE,TRIM8#

main87834-20080-53i198708-198908

SHADOW GRAY,TRIM2#

main87834-20080-55i198708-198908

DARK BEIGE,TRIM4#

main87834-20100-05i198709-198908

BEIGE,TRIM4#

87908BMIRROR SUB-ASSY, RH

main87931-20600i198708-198908

main87931-20610i198708-198908

ELECTRIC *RCM

main87931-20650i198708-198908

ELECTRIC *RCM---W(HEATER)

87909BMIRROR SUB-ASSY, LH

main87961-20640i198708-198908

main87961-20650i198708-198908

ELECTRIC *RCM

main87961-20710i198708-198908

ELECTRIC *RCM---W(HEATER)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20600i198708-198908

main87910-20610i198708-198908

ELECTRIC *RCM

main87910-20650i198708-198908

ELECTRIC *RCM---W(HEATER),BLACK PLASTIC

main87910-20800-01i198708-198908

ELECTRIC *RCM---W(HEATER),BLACK,BLACK,202

main87910-20800-02i198708-198908

ELECTRIC *RCM---W(HEATER),SUPER RED,SUPER RED,3E5

main87910-20800-04i198708-198808

ELECTRIC *RCM---W(HEATER),LIGHT BLUE METALLIC,LIGHT BLUE METALLIC,8D8

main87910-20800-05i198708-198808

ELECTRIC *RCM---W(HEATER),MEDIUM BEIGE M,MEDIUM BEIGE M,4H6

main87910-20800-08i198708-198908

ELECTRIC *RCM---W(HEATER),SUPER WHITE,SUPER WHITE,040

main87910-20800-14i198708-198808

ELECTRIC *RCM---W(HEATER),BLUE METALLIC,BLUE METALLIC,8D7

main87910-20800-16i198708-198808

ELECTRIC *RCM---W(HEATER),MEDIUM BROWN,MEDIUM BROWN,4H5

main87910-20800-24i198708-198908

ELECTRIC *RCM---W(HEATER),BLUE MAICA,BLUE MAICA,21C ,8E3

main87910-20800-26i198808-198908

ELECTRIC *RCM---W(HEATER),DARK BROWN METALLIC,DARK BROWN METALLIC,4J5

main87910-20800-32i198708-198908

ELECTRIC *RCM---W(HEATER),RED MAICA,RED MAICA,3H4

main87910-20800-33i198708-198908

ELECTRIC *RCM---W(HEATER),GRAY M,GRAY M,168

main87910-20800-36i198808-198908

ELECTRIC *RCM---W(HEATER),LIGHT BROWN METALLIC M.,LIGHT BROWN METALLIC,4J6

main87910-20800-43i198708-198808

ELECTRIC *RCM---W(HEATER),GRAY M,GRAY M,20C

main87910-20800-44i198808-198908

ELECTRIC *RCM---W(HEATER),LIGHT BLUE MICA M,BLUE MICA METALLIC,8G1

main87910-20800-53i198708-198908

ELECTRIC *RCM---W(HEATER),AMETHYST SILVER M,AMETHYST SILVER M,920

main87910-20800-54i198808-198908

LIGHT BLUE MICA M,8G2

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20640i198708-198908

main87940-20650i198708-198908

ELECTRIC *RCM

main87940-20710i198708-198908

ELECTRIC *RCM---W(HEATER),BLACK PLASTIC

main87940-20860-01i198708-198908

ELECTRIC *RCM---W(HEATER),BLACK,BLACK,202

main87940-20860-02i198708-198908

ELECTRIC *RCM---W(HEATER),SUPER RED,SUPER RED,3E5

main87940-20860-04i198708-198808

ELECTRIC *RCM---W(HEATER),LIGHT BLUE METALLIC,LIGHT BLUE METALLIC,8D8

main87940-20860-05i198708-198808

ELECTRIC *RCM---W(HEATER),MEDIUM BEIGE M,MEDIUM BEIGE M,4H6

main87940-20860-08i198708-198908

ELECTRIC *RCM---W(HEATER),SUPER WHITE,SUPER WHITE,040

main87940-20860-14i198708-198808

ELECTRIC *RCM---W(HEATER),BLUE METALLIC,BLUE METALLIC,8D7

main87940-20860-16i198708-198808

ELECTRIC *RCM---W(HEATER),MEDIUM BEIGE M,MEDIUM BEIGE M,4H5

main87940-20860-24i198708-198908

ELECTRIC *RCM---W(HEATER),BLUE MAICA,BLUE MAICA,21C ,8E3

main87940-20860-26i198808-198908

ELECTRIC *RCM---W(HEATER),DARK BROWN METALLIC,DARK BROWN METALLIC,4J5

main87940-20860-32i198708-198908

ELECTRIC *RCM---W(HEATER),RED MICA,RED MAICA,3H4

main87940-20860-33i198708-198908

ELECTRIC *RCM---W(HEATER),GRAY M,GRAY M,168

main87940-20860-36i198808-198908

ELECTRIC *RCM---W(HEATER),RUSSET BROWN M,LIGHT BROWN METALLIC,4J6

main87940-20860-43i198708-198808

ELECTRIC *RCM---W(HEATER),GRAY M,GRAY M,20C

main87940-20860-44i198808-198908

ELECTRIC *RCM---W(HEATER),BLUE MICA METALLIC,BLUE MICA METALLIC,8G1

main87940-20860-53i198708-198908

ELECTRIC *RCM---W(HEATER),AMETHYST SILVER M,AMETHYST SILVER M,920

main87940-20860-54i198808-198908

ELECTRIC *RCM---W(HEATER),LIGHT BLUE MICA M,LIGHT BLUE MICA M,8G2

8126520100SOCKET & WIRE, MAP LAMP

main81265-20100

8126620100

main81266-20100

8126720100

main81267-20100

9014950044

main90149-50044

9331915016

main93319-15016

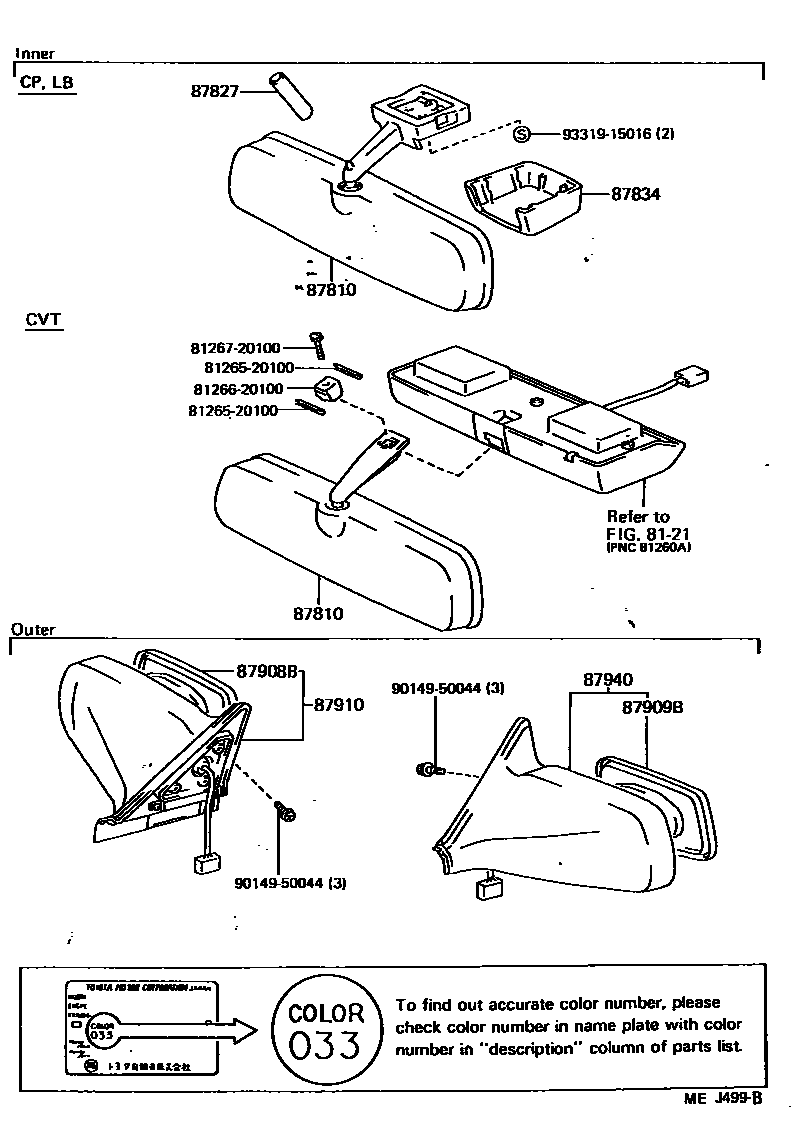

13 parts on this diagram · 1 diagram in section

MIRROR for Toyota CELICA

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: INTERIOR LAMP, MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH.
