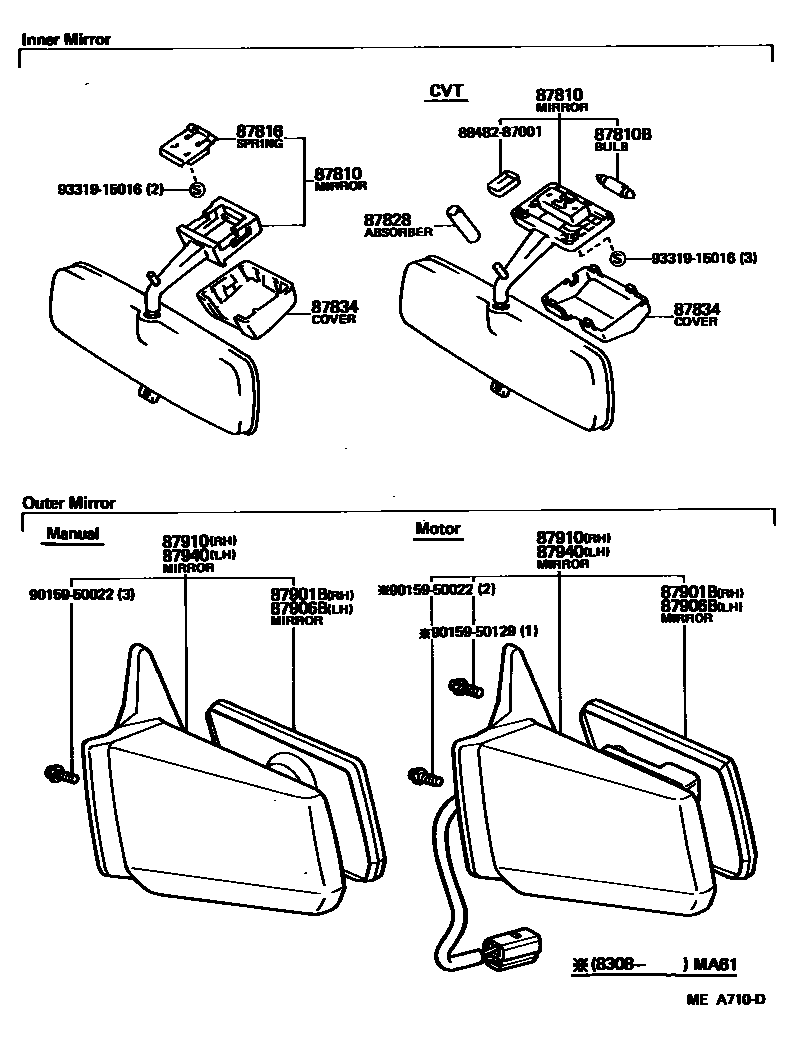

Toyota CELICA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87801-87008-01iRA65..CVT198404-198507

BLACK,BLACK

sub87801-87009

main87810-12160-01iMA61,RA6#..CP,LB198108-198512

BLACK,IKI,BLACK

sub87810-12180

sub87810-12181

main87810-12160-02iMA61198108-198308

TERRACOTTA,RED/MAROON

sub87810-12180

sub87810-12181

main87810-12160-12iMA61198308-198512

DEEP MAROON,IKI,RED/MAROON

sub87810-12180

sub87810-12181

main87810-12160-14iMA61,RA6#..CP,LB198108-198512

BLUE,IKI,BLUE

sub87810-12180

sub87810-12181

main87810-12160-16iRA6#..CP,LB198108-198507

DARK BROWN,IKI,BROWN

sub87810-12180

sub87810-12181

main87810-14150-01iMA61,RA6#..CP,LB198108-198512

BLACK,MURAKAMI,BLACK

main87810-14150-04iMA61,RA6#..CP,LB198108-198512

BLUE,MURAKAMI,BLUE

main87810-14150-06iRA6#..CP,LB198108-198507

DARK BROWN,MURAKAMI,BROWN

main87810-14150-12iMA61198308-198512

DEEP MAROON,MURAKAMI,RED/MAROON

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iRA65..CVT198404-198507

12V 10W,12V 10W

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iMA61,RA6#..CP,LB198108-198512

87828PACKING, REAR VIEW INSIDE MIRROR SUPPORT

main87828-14020iRA65..CVT198408-198507

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iRA65..CVT198404-198507

main87834-20080-08iMA61,RA6#..CP,LB198108-198408

IVORY,IVORY

main87834-20080-14iMA61,RA6#..CP,LB198108-198512

BLUE,BLUE

main87834-20080-33iMA61,RA6#..CP,LB198408-198512

GRAY,GRAY

main87834-20080-45iMA61,RA6#..CP,LB198408-198512

BEIGE,BEIGE

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-14240iRA64..ST198108-198208

main87901-14241iRA64..ST198208-198507

main87901-14250iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,TOKAIRIKA

main87901-14251iMA61,RA6#..GT,GTS,SPR198208-198408

MOTOR TYPE,TOKAIRIKA

main87901-14260iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,MURAKAMI

main87901-14261iMA61,RA6#..GT,GTS,SPR198208-198308

MOTOR TYPE,MURAKAMI

main87901-14340iMA61,RA6#..GT,GTS,SPR198308-198408

MOTOR TYPE,MURAKAMI

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-14260iRA64..ST198108-198208

main87906-14261iRA64..ST198208-198507

main87906-14270iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,TOKAIRIKA

main87906-14271iRA6#..GT,GTS198408-198507

MOTOR TYPE,TOKAIRIKA

main87906-14280iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,MURAKAMI

main87906-14281iMA61,RA64..GT,SPR198208-198308

MOTOR TYPE,MURAKAMI

main87906-14360iMA61,RA6#..GT,GTS,SPR198308-198408

MOTOR TYPE,MURAKAMI

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-14450iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,MURAKAMI

main87910-14451iMA61,RA6#..GT,GTS,SPR198208-198308

MOTOR TYPE,MURAKAMI

main87910-14470iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,TOKAIRIKA

main87910-14471iMA61,RA6#..GT,GTS,SPR198208-198308

MOTOR TYPE,TOKAIRIKA

main87910-14530iRA64..ST198108-198208

MANUAL TYPE

main87910-14531iRA64..ST198208-198507

MANUAL TYPE

main87910-14560iMA61198408-198512

MOTOR TYPE

main87910-14710iMA61,RA6#..GT,GTS,SPR198308-198408

MOTOR TYPE,MURAKAMI

main87910-14720iRA6#..GT,GTS198408-198507

MOTOR TYPE,TOKAIRIKA

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-14470iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,MURAKAMI

main87940-14471iMA61,RA6#..GT,GTS,SPR198208-198308

MOTOR TYPE,MURAKAMI

main87940-14490iMA61,RA64..GT,SPR198108-198208

MOTOR TYPE,TOKAIRIKA

main87940-14491iMA61,RA6#..GT,GTS,SPR198208-198308

MOTOR TYPE,TOKAIRIKA

main87940-14500iRA64..ST198108-198208

MANUAL TYPE

main87940-14501iRA64..ST198208-198507

MANUAL TYPE

main87940-14590iMA61198408-198512

MOTOR TYPE

main87940-14740iRA6#..GT,GTS198408-198507

MOTOR TYPE,MURAKAMI

main87940-14750iMA61,RA6#..GT,GTS,SPR198308-198408

MOTOR TYPE,TOKAIRIKA

8848287001CAP, COOLER

main88482-87001

9015950022

main90159-50022

9015950129

main90159-50129

9331915016

main93319-15016

13 parts on this diagram · 1 diagram in section
